SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components
will void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly
recommend that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We
recommend that a service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally
available at automotive dealerships and parts stores.
KIT CONSISTS OF:
No. Qty Part No. Description
ADVANCE ADAPTERS INC. P/N: 715545
P.O. Box 247, 4320 Aerotech Center Way New Item: (04/03)
Paso Robles, CA 93447 PAGE 1 OF 1
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 04-07-03
1. 1 715545A TRANSFER CASE SHIFTER BRACKET
2. 1 715545-1 TRANSFER CASE PIVOT NUT (welded to 715545 bracket)
3. 2 721501 10-32 x 3/4" S.H.C.S. T/C SHIFTER GATE
4. 2 721502 10-32 NYLON LOCK NUT
NV3550 SHIFTER BRACKET

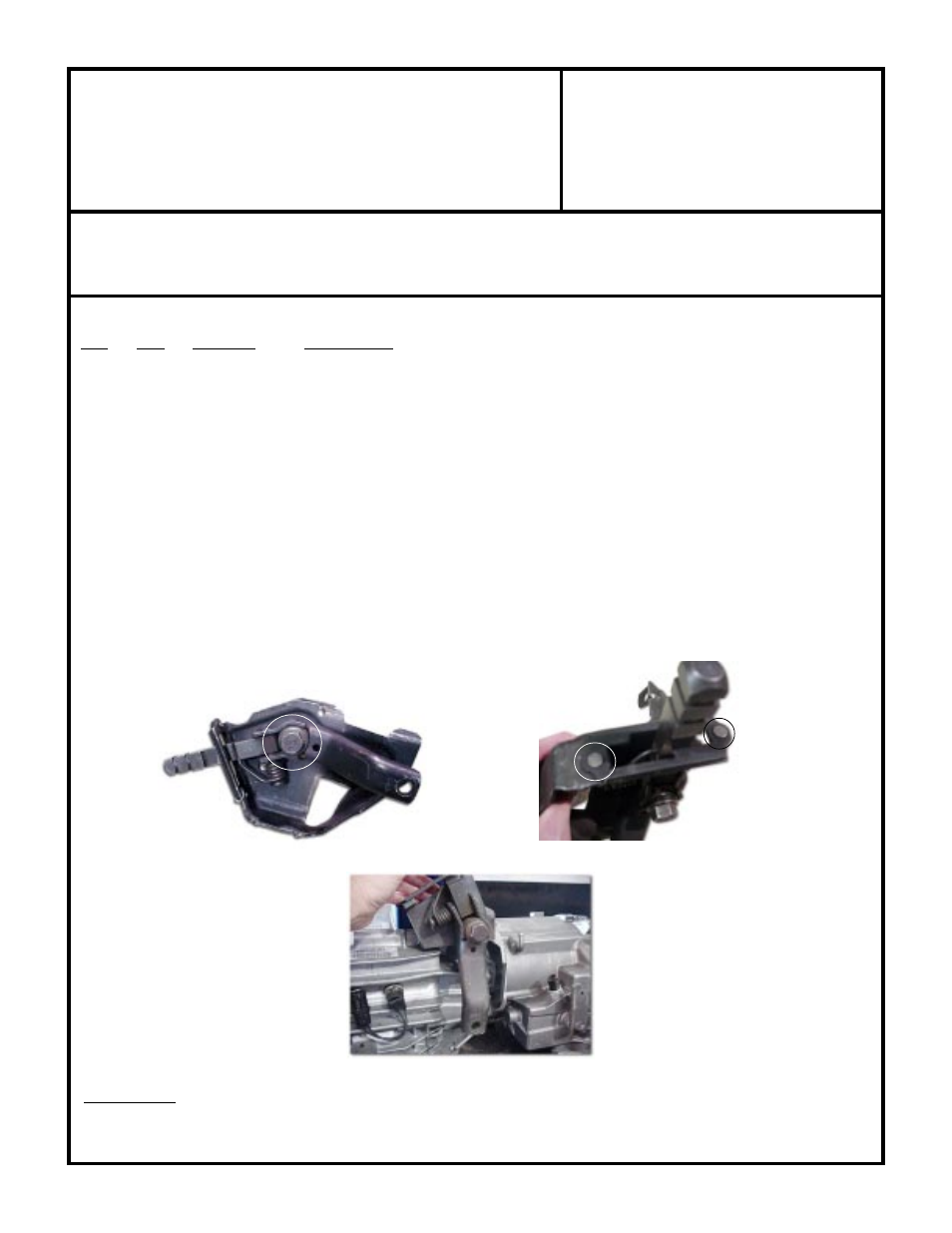

This bracket requires the use of your stock transfer case shifter handle, the linkage rod to your transfer case, and
the shifter gate. All 1987-95 Jeep linkages used a gated shifter that pivoted off of a support bolt. The only difference
we've seen is the bracket that bolts to the different stock transmission. Therefore, to fit the transfer case linkage
on the new transmission, you need to remove the handle from your stock bracket and reinstalled it onto our new
715545 bracket. You will also need to grind off the two rivets that retain the gate on your stock bracket. We have
provided two new bolts to install the gate back onto our new shifter bracket.
NOTE: Some of the Jeep Cherokees used a bellcrank linkage system in which the 715545 bracket should not be used.
The stock bellcrank linkage will need to be modified to fit on these vehicles.
