KIT CONSISTS OF:
No. Qty Part No. Description
ADVANCE ADAPTERS INC. P/N: 50-8903
P.O. Box 247, 4320 Aerotech Center Way Old Part No: 711089-19
Paso Robles, CA 93447 PAGE 1 OF 4
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 04-24-12
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that
a service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at
automotive dealerships and parts stores.
1. 1 51-8900 CASTING (with sensor drilled) (Ref: 711189)
2. 1 52-8300 SPUD SHAFT WITH 19 SPLINES (Ref: 711383)
3. 1 52-8900 700R OUTPUT SHAFT
4. 1 715547 TRANSFER CASE SHIFTER BRKT.
5. 3 715548 TRANSFER CASE BRKT SPACERS
6. 1 *716079 SENSOR PLUG
(INSTALLED BY A.A.)
7. 1 716082 700R PLASTIC WASHER
8. 1 716142 BUSHING/GEAR LOCATER
9. 1 716310 SEALED BEARING
10. 1 716321 SPECIAL SNAP RING FOR 716310 BEARING
11. 1 716511 "O"-RING
12. 1 716571 GASKET
13. 1 716758 TRANSFER CASE FRONT INPUT SEAL
14. 4 720046 10MM-1.5 X 40MM SHCS
15. 3 720062 12mm-1.25 x 90mm LONG H.H.C.S. (transfer case to adapter housing bolts)
16. 4 720063 12mm-1.25 x 40mm LONG H.H.C.S. (transfer case to adapter housing bolts)
17. 1 *720090 12mm-1.25 SET SCREW
(INSTALLED BY A.A.)
18. 3 723734 3/8"-16 x 2-1/2" S.H.C.S.
19. 7 724302 FLAT WASHER
20. 1 728703 26mm - 1.5 SHAFT NUT
21. 1 TLC001 LAND CRUISER INSTRUCTION MANUAL
GM 700R-4 AUTOMATIC OVERDRIVE
TO LAND CRUISERS 1980-89 FJ60 (4 SPEED)
SPECIAL NOTE: You may be required to change
out the snap ring on the 308 bearing. The split-
style transfer case used two different diameter
snap ring groves in the case. We have included
both snap rings to fit both styles of transfer
cases.

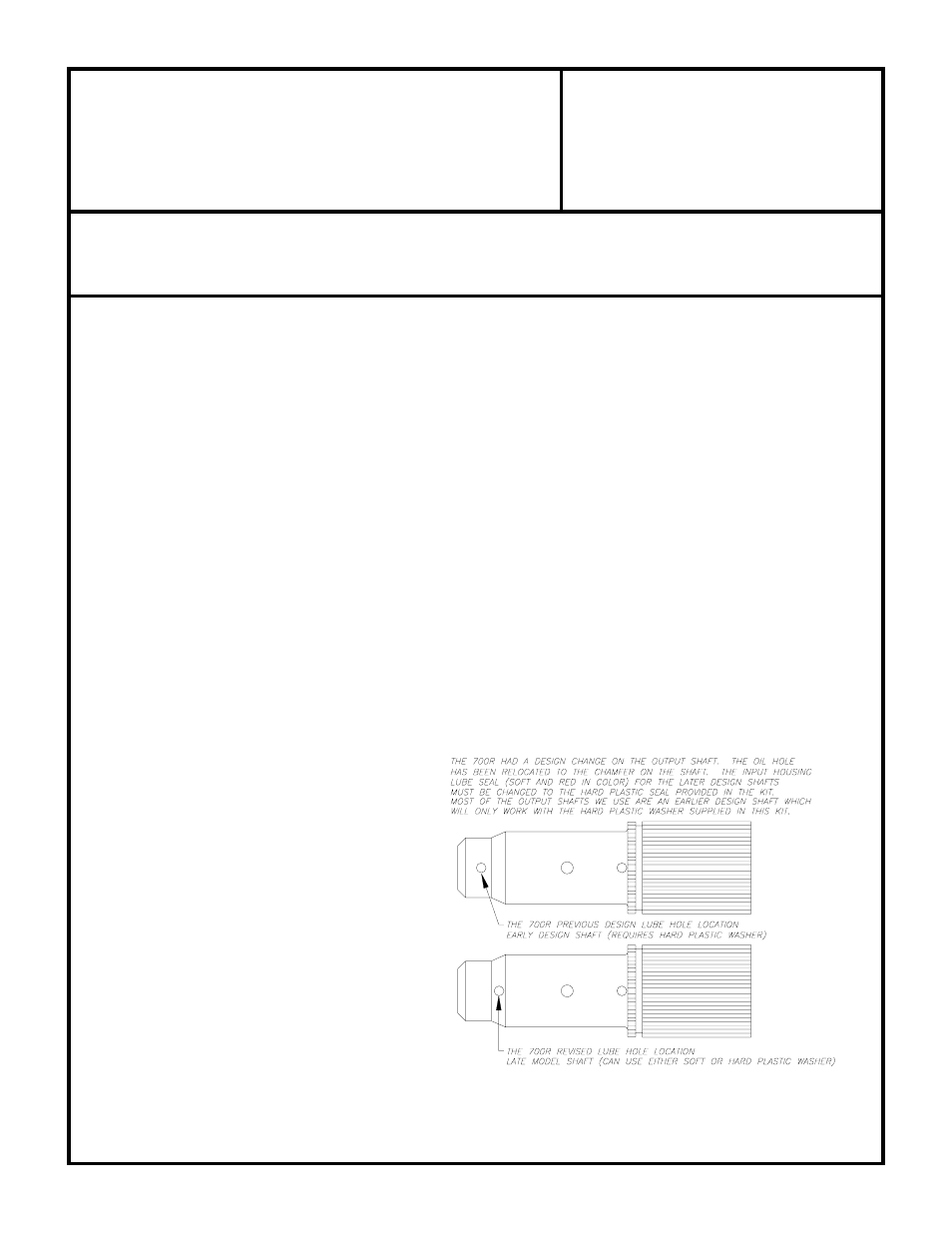

NOTE: This kit requires the 2WD output shaft
to be shortened. If you are using this kit on a
newer hex bolt pattern 4L60E transmission, then
you will be required to use our 51-0405 adapter
housing. Please note that the cut off location on
the output shaft must be made after this adapter
is installed on the transmission. This 51-0405
adapter make the hex pattern 4L60E transmission
look just like the square bolt pattern transmis-
sion, and the cut off location for the output shaft
is shown on this instruction sheet is for the square
bolt pattern transmission.
If your transfer case was coupled to
a manual transmission, Toyota used
a single lip seal in the front of the
transfer case. We recommend
changing the seal with a double lip
seal that was used on the stock
automatic applications.
Toyota # 90316-48003
