Advance Adapters 50-8506 - Manual

ADVANCE ADAPTERS INC. P/N: 50-8506
P.O. Box 247, 4320 Aerotech Center Way Old Part No:
Paso Robles, CA 93447 PAGE 1 OF 1
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 05-21-13
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.
KIT CONSISTS OF:
No.
Qty Part No. Description
1. 1 51-8505 ADAPTER 1.875
2. 1 716511 "O"-RING
3. 4 723701 NUT 3/8"-16 PLATED GRD 5
4. 4 723704 LOCK WASHER 3/8" ZINC
5. 4 723716 STUD BOLT 3/8"-16 X 4"
GM TH350 AUTOMATIC REPLACING
GM 700R 4WD
The stock GM 700R is 1.875" longer than the TH350 transmission. This adapter spacer when used with a 6"
tailhousing 2WD TH350 (15.5" O.A.L. output shaft length) should provide a direct replacement for the 700R
transmission. The TH350 output shaft will require some trimming; however, this will allow you to install the
TH350 without any driveshaft modifications.
The TH350 will require a new kick down cable, we offer several options from Lokar depending on the engine you
have.

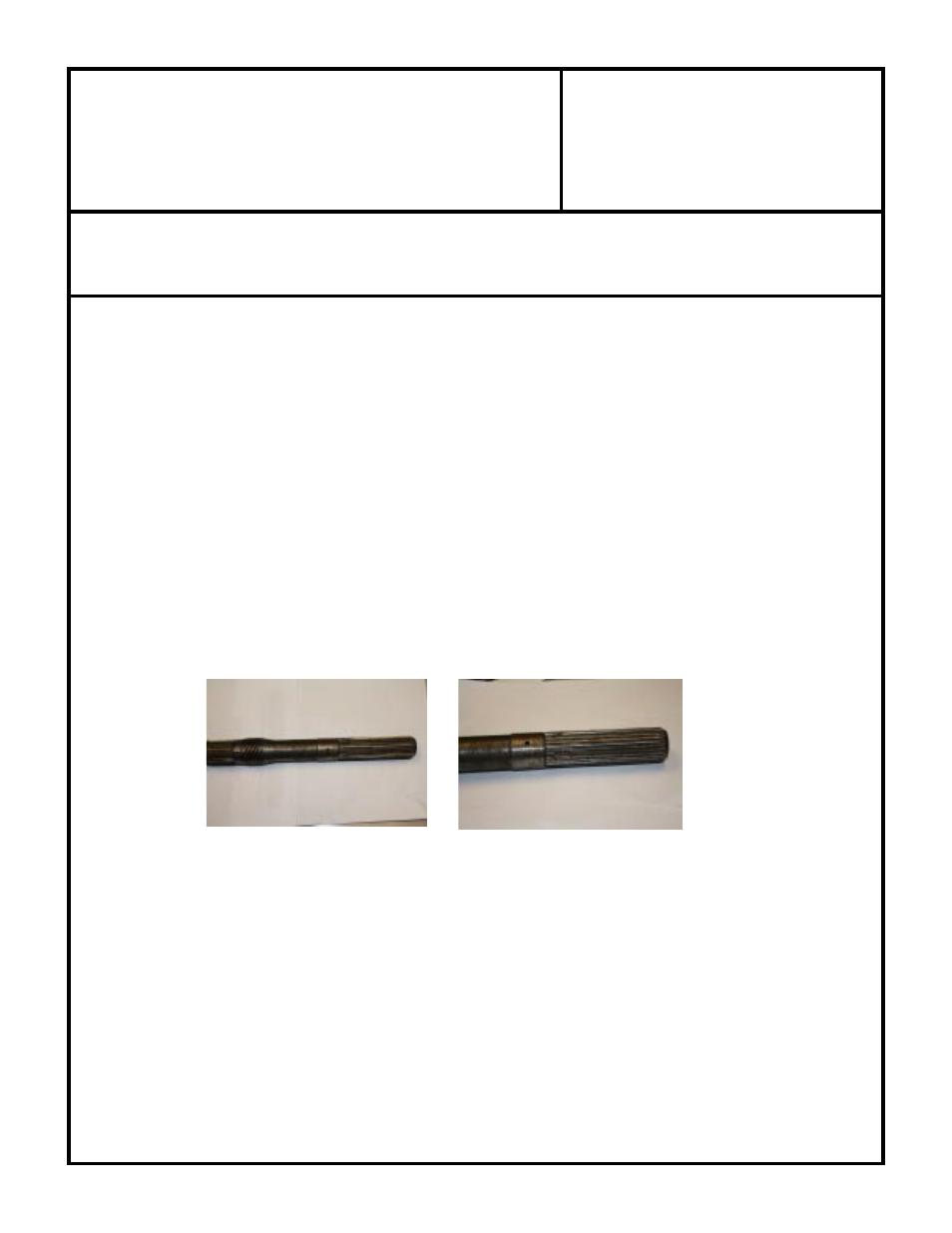

Trim shaft by measuring the 700R stock shaft stick out from the square bolt pattern on the transmission. Take
that measurement plus the 1.875" on the new spacer adapter. By adding the 700R and the adapter measurements
together, you can now measure from the back of the TH350 with this new amount and cut the output shaft to
match the 700R stick out. The total amount that should be cut from the shaft should be no more than 1.50".
