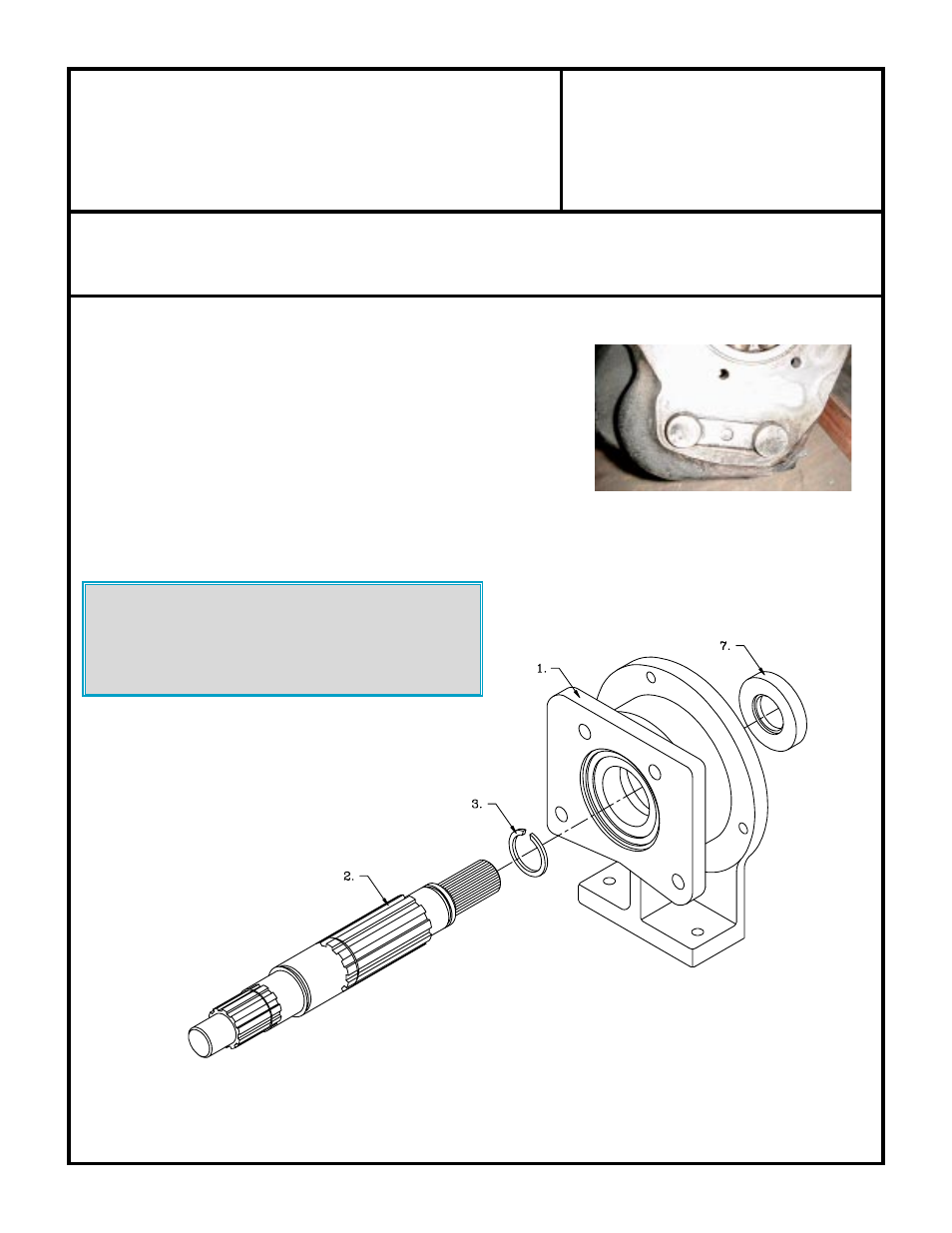

KIT CONSISTS OF:
No. Qty Part No. Description
ADVANCE ADAPTERS INC. P/N: 50-7502
P.O. Box 247, 4320 Aerotech Center Way New Item: (12/98)
Paso Robles, CA 93447 PAGE 1 OF 3
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 08-07-08
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the
components will void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion,
we strongly recommend that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter
components. We recommend that a service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment.
These manuals are normally available at automotive dealerships and parts stores.
JEEP T18 4-SPD TRANSMISSION TO
JEEP DANA 300 TRANSFER CASE
1. 1 51-7502 ADAPTER CASTING
2. 1 52-7503 T18 MAIN SHAFT (Ref: 711375)
3. 1 716452 SNAP RING (Jeep #8132631)
4. 1 716517 GASKET (Dana 300)
5. 1 716722 SEAL (NAT #472319)
6. 2 723723 H.H.C.S. 3/8"-16 x 1-1/2"
7. 2 723728 S.H.C.S. 3/8"-16 x 2-1/4"
8. 2 723735 FLATWASHER 3/8" STD.
9. 2 724328 7/16"-14 x 1-1/4" H.H.C.S.
10. 1 JP001 JEEP INSTRUCTION MANUAL
Before assembly of the transmission with the new
main shaft, you must verify that the correct shaft is
being used. Your spline count on the shaft must be
23-splines. Advance Adapters also manufactures a
27-splines shaft that will not be compatible with
your Dana 300 transfer case.
Some Jeep T18 transmissions will also
require the idler shaft strap to be bolted
or secured to the case. The easiest way
is to drill and tap a hole in the center of
the strap as shown above. If your T18
has the strap bolted to the case, you will
not have to worry about this procedure.
The T18 shafts had two main shaft
designs. The difference between the
shafts is the hub between the sec-
ond and third gears (both designs are
interchangeable into the transmis-
sion). Some shafts have a snap ring
and washer and others have the
spacer as part of the shaft. Most of
our shafts have the hub as part of
the main shaft. If you have the snap
ring design, just omit the washer and
snap ring when loading the gears on
the new main shaft.
