KIT CONSISTS OF:
No. Qty Part No. Description
ADVANCE ADAPTERS INC. P/N: 50-6904
P.O. Box 247, 4320 Aerotech Center Way Old Part No: 711069-F
Paso Robles, CA 93447 PAGE 1 OF 2 (New 1/93)
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 04-12-11
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.
1. 1 51-6904 CASTING (Ref: modified 51-6300) ( Assembled by AA)
2. 1 52-6900 SHORT SHAFT 700R-4 (Ref: 711369)
3. 1 52-6902 FORD SPUD SHAFT (27 Inside x 31 Outside) (Ref: 711369-F) (Assembled by AA)

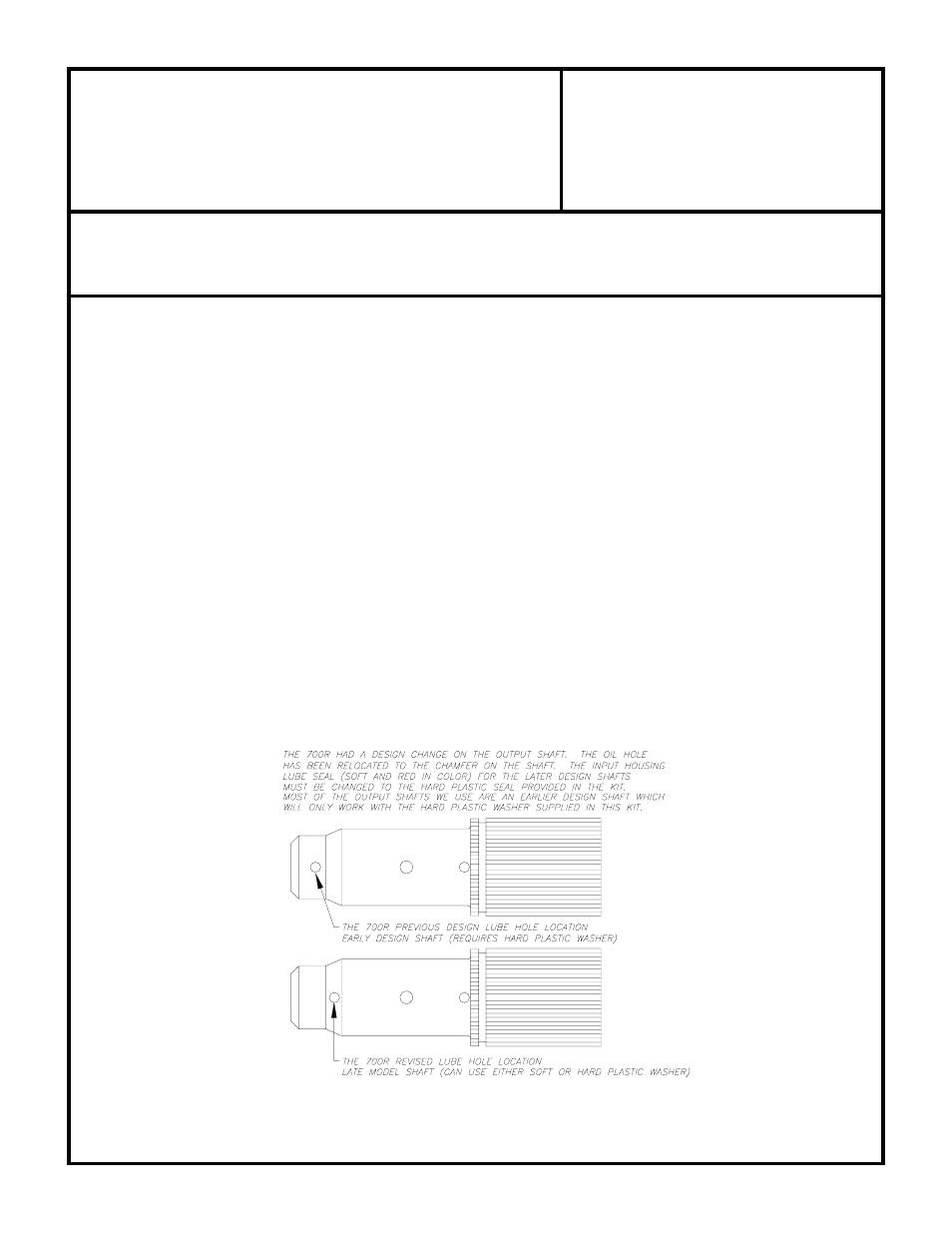

4. 1 716082 700R PLASTIC WASHER
5. 1 716308 BEARING (#6209) (Assembled by AA)
6. 1 716450 SNAP RING (Assembled by AA)
7. 1 716456 SNAP RING (Assembled by AA)
8. 1 716511 "O" RING
9. 1 716517 GASKET
10. 4 720046 S.H.C.S. (Metric)
GM 700R-4 TO FORD N/P TRANSFER
CASE WITH 31 SPLINE
NOTES:
1. The transmission must be equipped with the special Advance Adapters output shaft.
2. The transfer case linkage will need to be fabricated for use with this adapter.
3. On the front side of the transfer case, the input sleeve has an oil seal to prevent fluid transfer between transmission
and transfer case. We would recommend using a dual-lip seal.
4. The front side of the transfer case will need to have the dowel pin removed in order to accept the new adapter housing.
5. The output shaft of the new adapter assembly may require shortening on certain applications. Test fit the adapter
to the transfer case and make sure that the new 31 spline shaft does not bottom out inside the 31 spline coupler.
6. If using this kit on a NP205 transfer case, the adapter will need to be modified for shifter linkage clearance.
