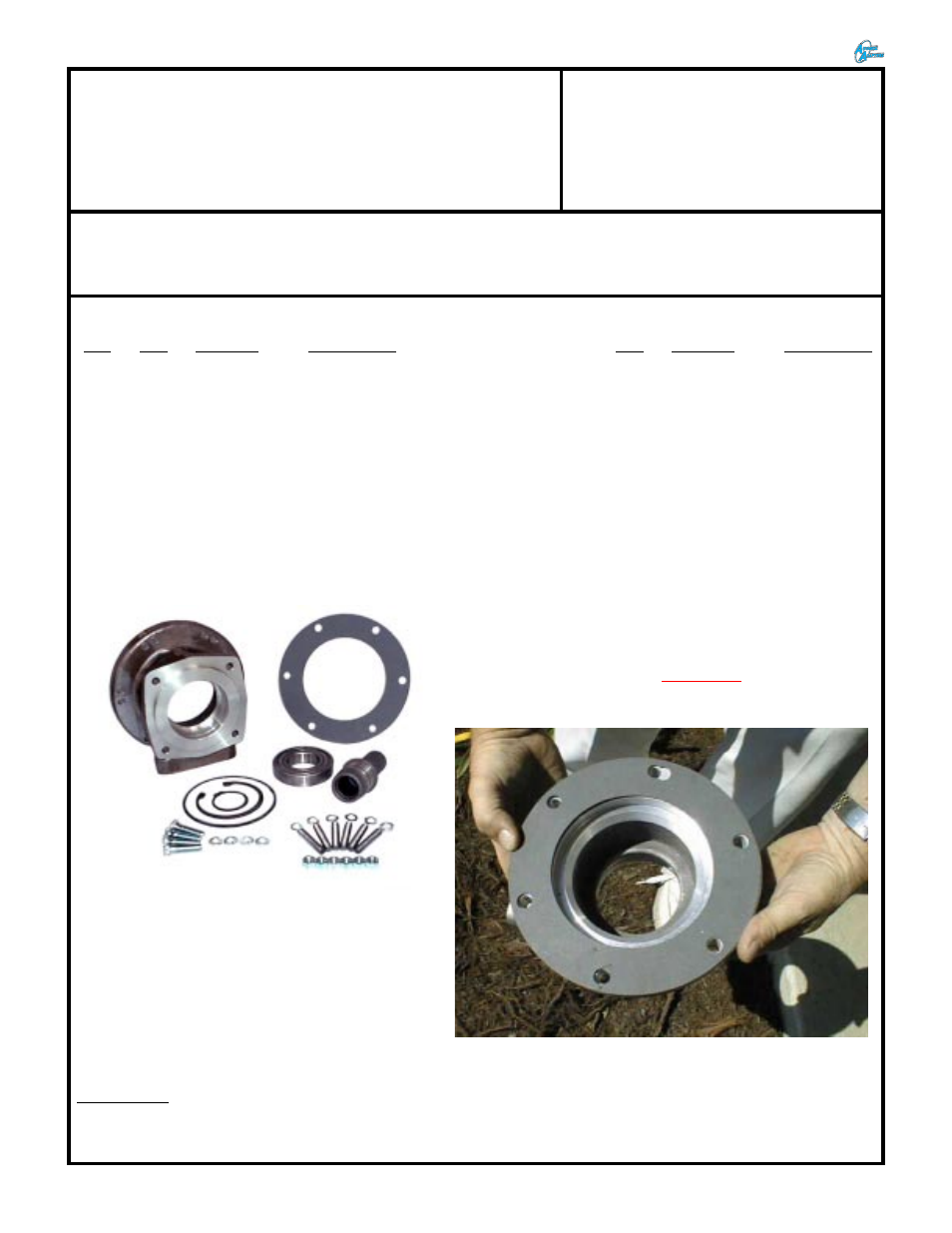

KIT CONSISTS OF:
No. Qty Part No. Description
ADVANCE ADAPTERS INC. P/N: 50-6308
P.O. Box 247, 4320 Aerotech Center Way New Item: (11/93)
Paso Robles, CA 93447 PAGE 1 OF 3
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 05-07-08
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.
OPTIONAL ITEMS:
Qty Part No. Description
1. 1 51-6300 CASTING (Ref: 711163) (Assembled by AA)
2. 1 52-6301 SPUD SHAFT (23 Splines) (Assembled by AA)
3. 1 Pack 714201 BOLT PACK (50-6300)
4. 1 716308 BEARING (#6209) (Assembled by AA)
5. 1 716450 SNAP RING (Assembled by AA)
6. 1 716456 SNAP RING (T/A #N5000-334) (Assembled by AA)
7. 1 716511 "O" RING
8. 1 716517 GASKET
9. 6 723711 STUD BOLT 3/8"-16 x 2" LONG
10. 1 JP001 JEEP INSTRUCTION MANUAL
This kit is for replacing the AX15 5-Speed Transmissions.
GM TH350 AUTOMATIC TO
JEEP NP231 TRANSFER CASE-23 SPLINES
1 716008 CROSSMBR .
MOUNT
CAUTION! CAUTION! CAUTION! CAUTION! CAUTION!
Gasket positioning between the transfer case and new
Advance Adapters housing is CRITICAL . If you fail to get
the gasket in the proper location, oil seepage will occur. See
photo for correct positioning.
