ADVANCE ADAPTERS INC. P/N: 50-4301
P.O. Box 247, 4320 Aerotech Center Way Old Part No: 50-4300
Paso Robles, CA 93447 PAGE 1 OF 2
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 05-22-12
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.
KIT CONSISTS OF:
No.
Qty Part No. Description
1. 1 51-2600 CASTING (Ref: 711126)
2. 1 52-4301 NEW SPUD SHAFT WITH 31T INTERNAL
3. 2 716042 CROSSMEMBER SLEEVE
4. 1 716455 SNAP RING
5. 1 716513 GASKET
6. 2 716663 WASHER
7. 1 716713 SEAL (C/R #18676)
8. 1 716714 "O"-RING
9. 1 716223 ALUMINUM RETAINER
10. 6 723701 3/8" HEX NUT
11. 3 723710 3/8"-16 x 2-3/4" LG. STUD BOLT
12. 3 723712 3/8"-16 x 3-1/2" LG STUD BOLT
13. 2 724302 FLAT WASHER 7/16" PLT.
14. 2 724311 H.H.C.S. 7/16"-14 x 3-1/2" GR 5

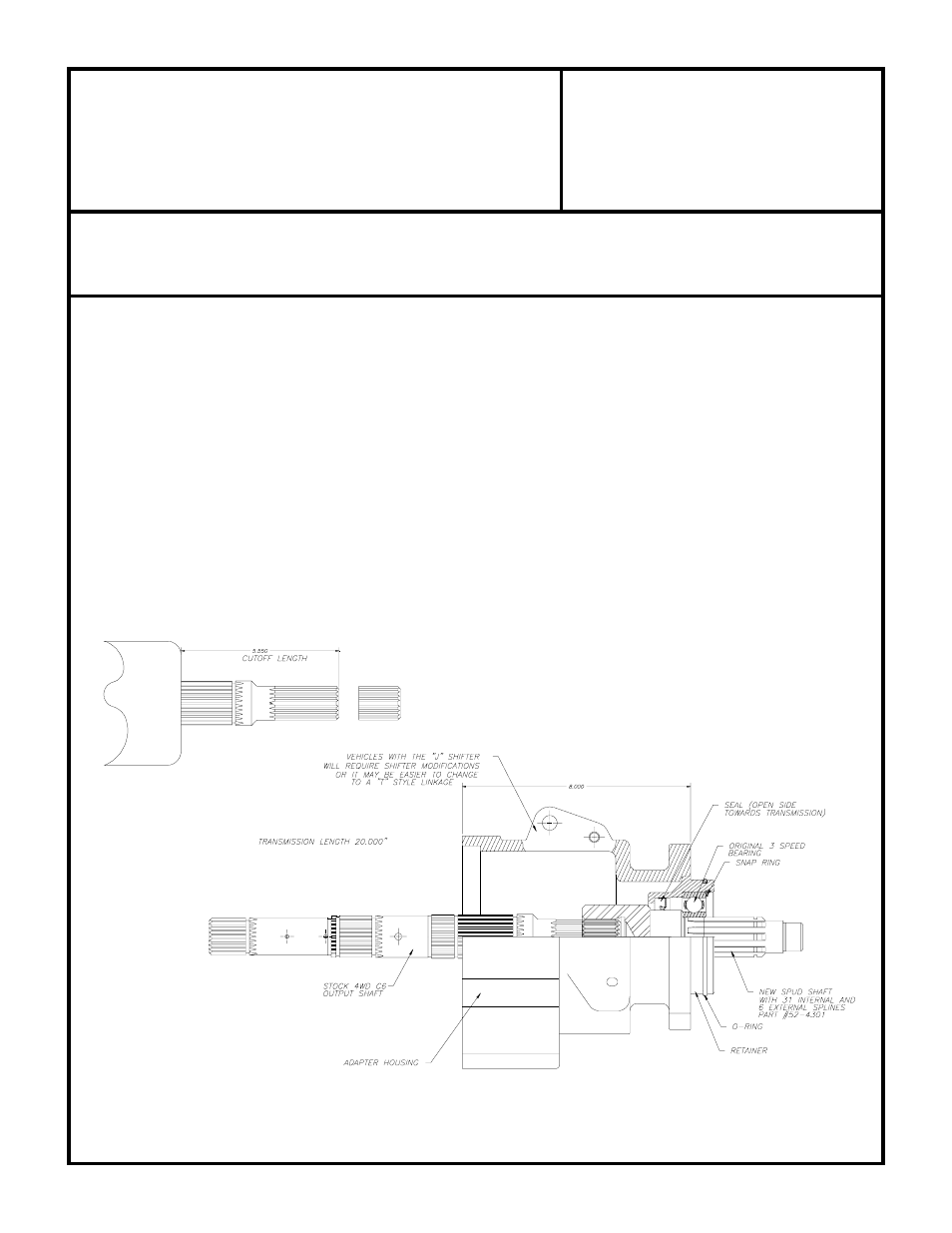

FORD C6 AUTOMATIC TRANS TO
BRONCO DANA 20 (1966-76)
Transmission Requirement
The kit requires the use of a 4WD C6
output shaft. We have seen a few
different lengths of this shaft. The
correct shaft should have a stock
stickout of 7" from the rear of the main
transmission case. This shaft must
then be shortened to the length listed
below. The shaft also has an O.A.L. of
15.5" before being modified.
The transmission oil pan may require
some clearance modifications for the
front drive shaft.
A 1" body lift is recommended for
tunnel clearance
