ADVANCE ADAPTERS INC.

P/N: 50-3601

P.O. Box 247, 4320 Aerotech Center Way

New Item: (08-08)

Paso Robles, CA 93447

PAGE 1 OF 2

Telephone: (800) 350-2223

Fax: (805) 238-4201

Page Rev. Date:

08-28-08

SPECIAL NOTE:

The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will

void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.

KIT CONSISTS OF:
No.

Qty

Part No.

Description

TH400 TO BRONCO DANA 20 TRANSFER CASE

1.

1

51-0209

CASTING - NV4500 TO BRONCO DANA 20

2.

1

51-6401

ADAPTER HOUSING (Ref: 711164-SS)

3.

1

52-0209

SPUD SHAFT - NV4500/BRONCO DANA 20

4.

1

52-6401

TH400 OUTPUT SHAFT (23-SPL)

5.

1

715541

SHIFTER LINKAGE BRACKET

6.

1

716223

BEARING RETAINER

7.

1

716312

BEARING

8.

1

716455

SNAP RING

9.

1

716510

GASKET (GM #8624709)

10.

1

716513

T/C GASKET

11.

1

716517

GASKET- NP208 T/C

12.

1

716713

SEAL

13.

1

716714

O-RING FOR INDEX RETAINER

14.

1

716729

SEAL (NAT #456057)

15.

6

723701

NUT 3/8"-16 PLATED

16.

6

723704

LOCK WASHER 3/8" PLATED

17.

6

723711

STUD BOLT 3/8"-16 x 2" LG

18.

6

723740

3/8"-16 x 1-1/2" S.H.C.S.

NOTE

NOTE

NOTE

NOTE

NOTE:::::

This adapter will only work with

the "T" style shifter. If your

vehicle has a "J" style, it will

need to be replaced

Optional items:
Part# 712588
(GM Trans x Ford Small Block)

SPECIAL INSTRUCTIONS:

This adapter kit is designed for exclusive use with a GM TH400 transmission. Since
this application is for a Ford Early Bronco Model 20 transfer case, you will need to
consider how to couple the TH400 to the Ford engine. We offer

P/N 712588

.

This kit is supplied with a new spud shaft, bearing, and seal. These components will
need to be installed into our alignment retainer, along with the stock Bronco Dana
drive gear. Make sure all snap rings are in place. Install the O-ring on the retainer
along with a small amount of R.T.V. Blue silicone, then install the retainer to your
transfer case. Bolt the adapter ring to the Dana 20 using the (6) S.H.C.S. bolts.
Rotate the spud shaft to check for proper installation.

When assembling the transmission to the transfer case,

DO NOT FORCE

the two

gear boxes together. If the shaft is too long, there is the possibility of pre-loading the transmission bearings, causing
premature failure. Take the extra time to make sure that the shafts do not bottom out internally. If there is any
interference problem, it may be necessary to grind the end of the new output shaft to obtain the proper length.

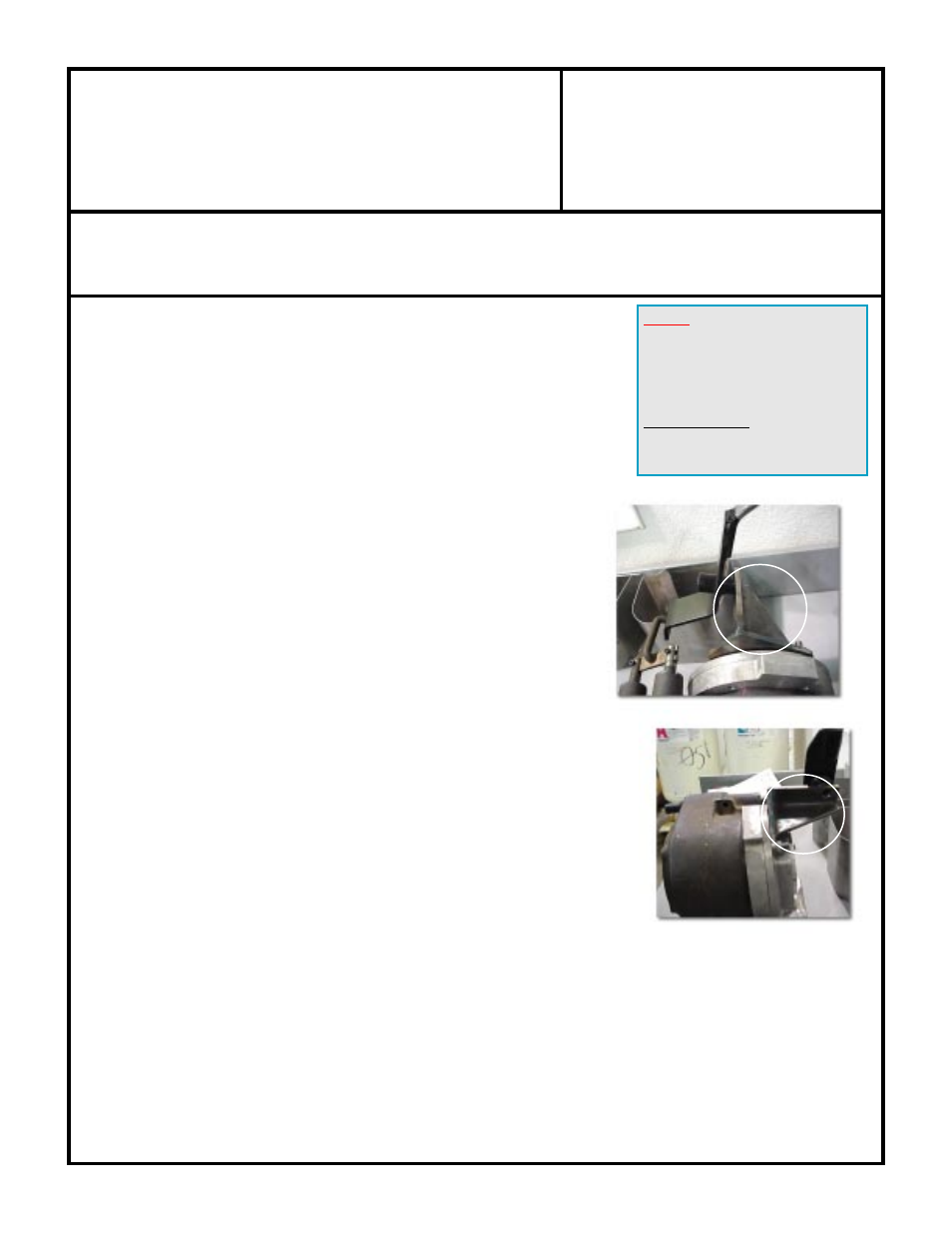

A shifter bracket has been provided for a "T" style T/C shifter handle. Before installing your transmission/transfer
case assembly in your vehicle, check the fit of this linkage bracket. The mounting hardware for the transfer case
linkage has been left out due to the various "T" style linkages being used.
