KIT CONSISTS OF:
No. Qty Part No. Description
ADVANCE ADAPTERS INC. P/N: 50-3200
P.O. Box 247, 4320 Aerotech Center Way Old Part No: 711032
Paso Robles, CA 93447 PAGE 1 OF 3
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 07-01-04
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.

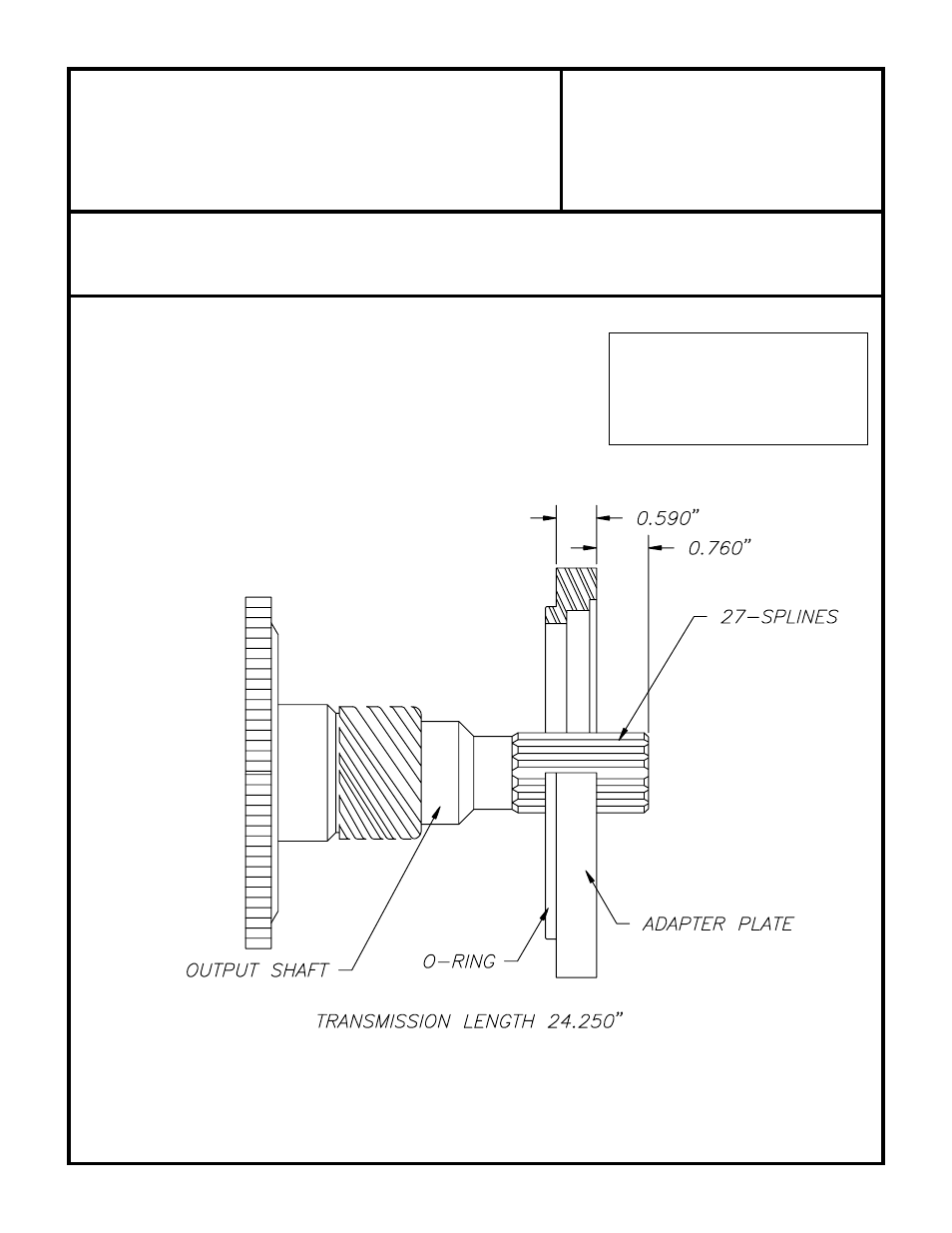

1. 1 51-1800 ADAPTER PLATE (Ref: 711118)
2. 1 52-3200 OUTPUT SHAFT (Ref: 711332)
3. 1 715511 LINKAGE ROD
4. 1 715512 BRACKET
5. 1 716140 BRAKE YOKE & PIN
6. 1 716165 1-15/16" PLUG
7. 1 716511 "O" RING (GM #135-8899)
8. 6 723731 3/8"-16 X 7/8" S.H.C.S.
GM TH400 AUTOMATIC TO NEW PROCESS
203/205 TRANSFER CASE 1971-79
NOTE:
Kit must be used in conjunction
with a stock TH350 / 203 or 205
adapter housing & coupler
sleeve.
