Advance Adapters 50-3202 - Manual

KIT CONSISTS OF:
No. Qty Part No. Description
ADVANCE ADAPTERS INC. P/N: 50-3202
P.O. Box 247, 4320 Aerotech Center Way Old Part No: 711032
Paso Robles, CA 93447 PAGE 1 OF 3
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 10-04-10
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components will
void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly recommend
that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components. We recommend that a
service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are normally available at automotive
dealerships and parts stores.
1. 1 51-3202 ADAPTER CASTING TH400

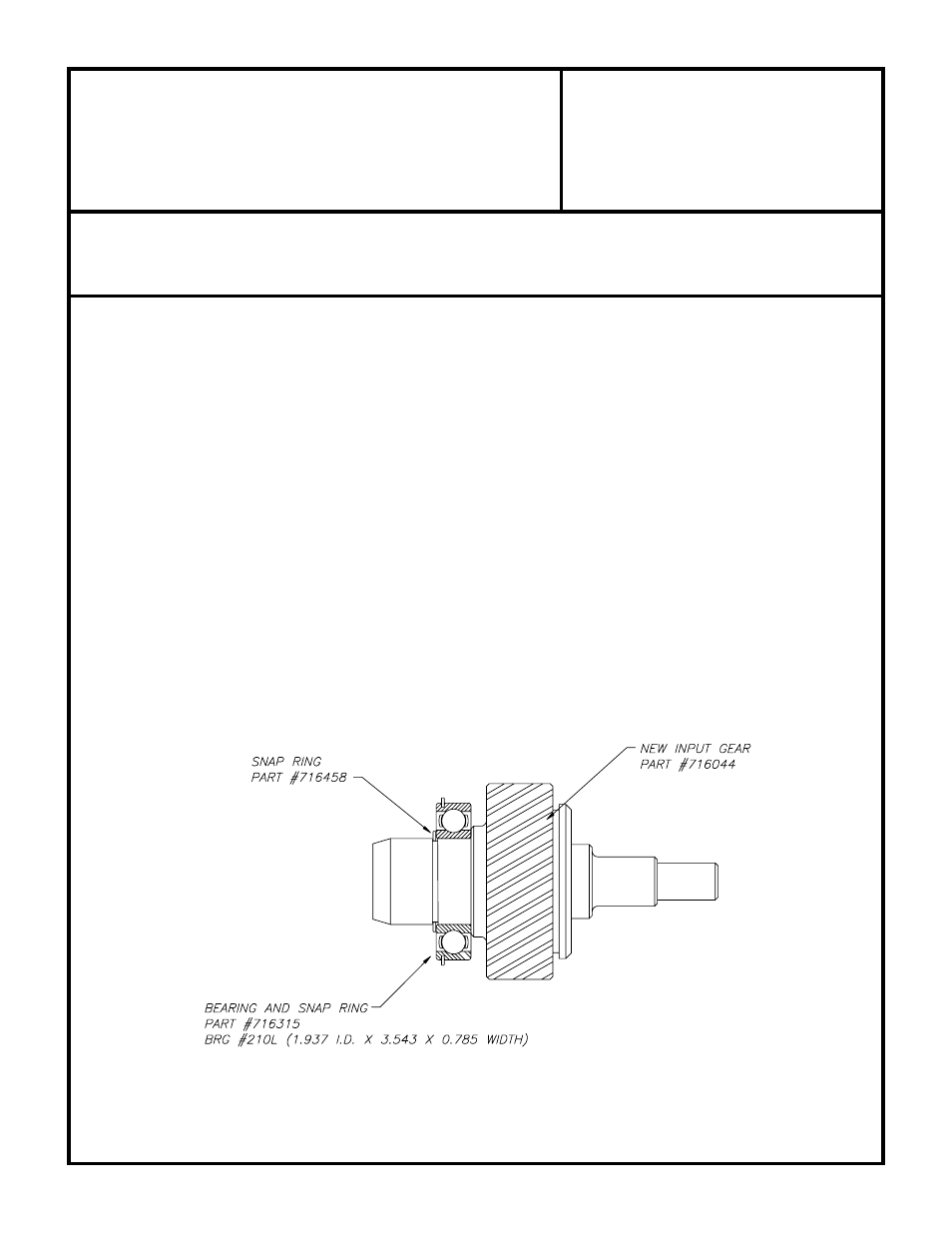

2. 1 716044 NP205 INPUT GEAR w/ 32T INTERNAL SPLINES
3. 1 716315 BEARING (for 716044 input gear)
4. 1 716458 SNAP RING (for 716044 input gear)
5. 1 716511 TRANSMISSION TO ADAPTER O-RING
6. 1 716572 NP205 GASKET
7. 1 716754 ADAPTER SEAL
8. 6 723701 HEX NUT 3/8"-16
9. 6 723704 3/8" LOCK WASHER
10. 6 723711 STUD BOLT 3/8"-16 x 2" LONG
GM 2WD 32T TH400 AUTOMATIC TO
NP205 TRANSFER CASE 1971-1984/85
NOTE:
This adapter kit should only be used when replacing a 4 speed manual or TH350 automatic that was connected to an NP205
transfer case. The transfer case will need to be machined for use with the larger bearing.
