CHEVY BELLHOUSING FOR USE WITH
JEEP T4, T5, SR4 & T176 TRANSMISSIONS
ADVANCE ADAPTERS INC. P/N: 712548
P.O. Box 247, 4320 Aerotech Center Way
Paso Robles, CA 93447
PAGE 3 OF 4
Telephone: (800) 350-2223 Fax: (805) 238-4201 Page Rev. Date: 07-31-00
SPECIAL NOTE: The components packaged in this kit have been assembled and machined for specific type of conversions. Modifications to any of the components
will void any possible warranty or return privileges. If you do not fully understand modifications or changes that will be required to complete your conversion, we strongly
recommend that you contact our sales department for more information. This instruction sheet is only to be used for the assembly of Advance Adapter components.
We recommend that a service manual pertaining to your vehicle be obtained for specific torque values, wiring diagrams and other related equipment. These manuals are
normally available at automotive dealerships and parts stores.
NOTES:
1. Be sure to grease inside pocket diameter of bearing. This will provide lubrication on the bearing retainer.
2. Release bearing should have .060" clearance between fingers and face of bearing.
3. Clutch disc should have .030" clearance between flywheel and disc when fully disengaged.
4. On large diameter 168 tooth flywheels, it may be necessary to grind additional clearance on the lower inside
diameter of bellhousing. The bellhousing is designed for maximum flywheel thickness of 1.188".
11" CLUTCH ITEMS:
11" CLUTCH PRESSURE PLATE ( PART #CF165552 HIGH -PROFILE.)
11" CLUTCH DISC. ( PART #383735 1-1/8" 10 SPL.) (T4, T5, SR4 & T176)
11" CLUTCH DISC. ( PART #281226 1-1/16" 10 SPL.) (T150)
CLUTCH RELEASE BEARING ( PART #N1439 / N1714 )
10.5" CLUTCH ITEMS:
10.5" CLUTCH PRESSURE PLATE. ( PART #CF360056 HIGH-PROFILE.)
10.5" CLUTCH DISC. ( PART #383271 1-1/8" 10 SPL.) (T4, T5, SR4 & T176)
10.5" CLUTCH DISC. ( PART #716104 1" 14 SPL.) (T4, T5, AMC 4 CYL.)
10.5" CLUTCH DISC. ( PART #381021 1-1/16" 10 SPL.) (T150)
CLUTCH RELEASE BEARING ( PART #N1439 / N1714 )

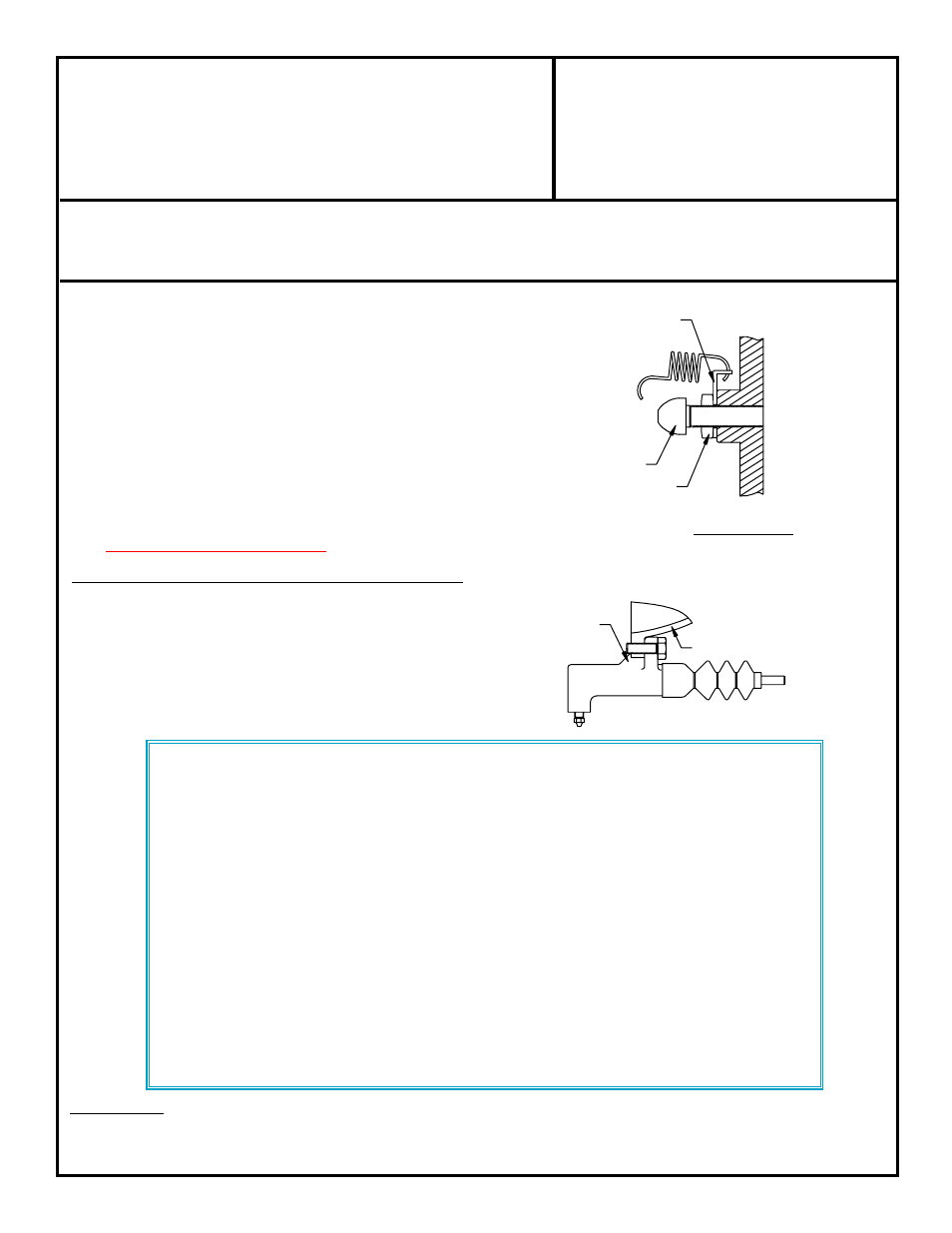

SPRING CLIP. (PART #716184-A)
BALL PIVOT. (PART #716180)
A/A BELLHOUSING. (REF)
SLAVE CYL. GUSSET WILL
NEED MODIFICATIONS IN
ORDER TO SEAT AGAINST
BELLHOUSING FLANGE
JEEP SLAVE CYLINDER
DETAIL - A
JEEP PART REQ'D WHEN REPLACING AMC 4-CYLINDERS.
RELEASE ARM - PART #536-1620 (JEEP)
RELEASE ARM -
A/A PART #716176
BOOT - PART 3323-8430
SPRING. PART #322-2799
SLAVE CYLINDER - PART #J3241867
SLAVE CYL. HOSE - PART #53004164
SLAVE CYL. HOSE - PART #716130H
* When replacing a 4 cylinder, you must change the
throw out arm to either a -
Jeep# 536-1620 (
AA# 716334 ), or
GM# 15687296 ( AA# 716176 ).
When using the AA# 716176 arm, you must change
to the
N1714 throw out bearing. You will need to grind
a bit on the throw out arm to fit over this bearing.
On hydraulic applications, you may need to grind the
slave cylinder mounting face for better alignment of
the push rod to the throw out arm.
