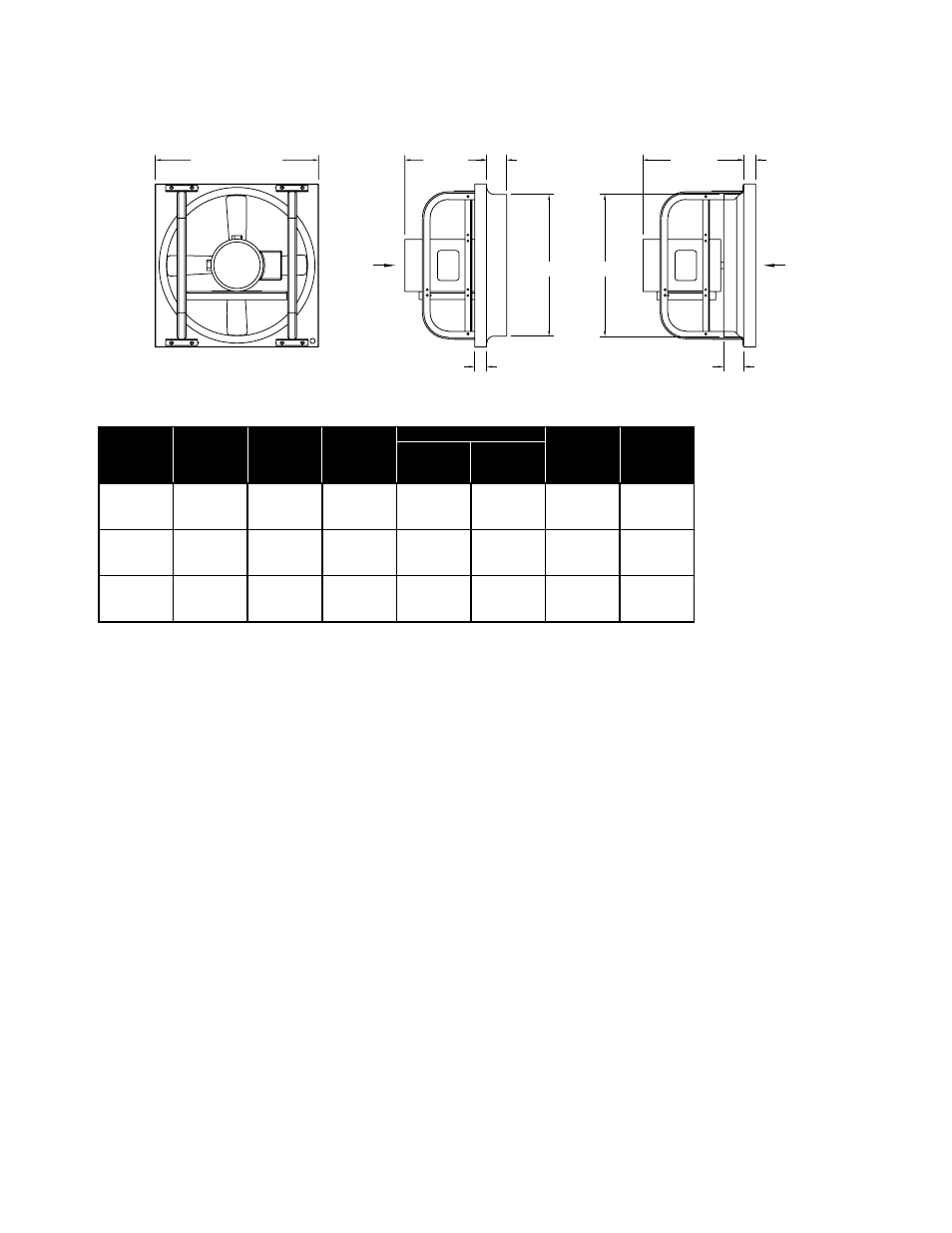

Dimensional Data
BSDDP – Direct Drive
AIR
FLOW AIR
FLOW
D MAX D MAX
A DIA.
C SQ. OUTSIDE
A DIA.
B
B 2.00
2.00
BSDDP
SIZE
A B C SQ.
D MAX
DAMPER
SIZE
MAX
MOTOR
FRAME
EXHAUST SUPPLY
14 14.25 2.75 17 11.18 14.88 14 x 14 56
16 16.25 3.00 20 11.18 14.88 17 x 17 56
18 18.25 3.00 22 11.18 14.88 19 x 19 56
21 21.25 3.50 25 14.41 17.36 22 x 22 145T
24 24.25 3.50 28 14.55 17.36 25 x 25 184T
30 30.38 4.00 36 14.74 19.05 33 x 33 184T
36 36.38 5.00 42 15.67 19.93 39 x 39 215T
42 42.38 5.50 48 23.59 30.00 45 x 45 254T
48 48.38 6.00 54 23.59 30.00 51 x 51 254T
Exhaust Airflow Supply Airflow
