Chapter 8 – Operation
50 TB80/TB85J – 0112477
Note
It may be necessary to cycle the axle lever back and
forth, to relieve pressure on the pin, while twisting the pin
to remove it.
4. Hold the axle lever (refer to Figure 8.3) in the extend
position until the axles stop extending.
Note
Only one axle will extend at a time. They do not both
extend at the same time.
5. Fully install the pin in the lower hole in the chassis
(refer to Figure 8.5) and install the pin lock through
the pin and the lip around the hole.
Note
It may be necessary to cycle the axle lever back and
forth, to align the holes inside the chassis, while pushing
the pin into position.

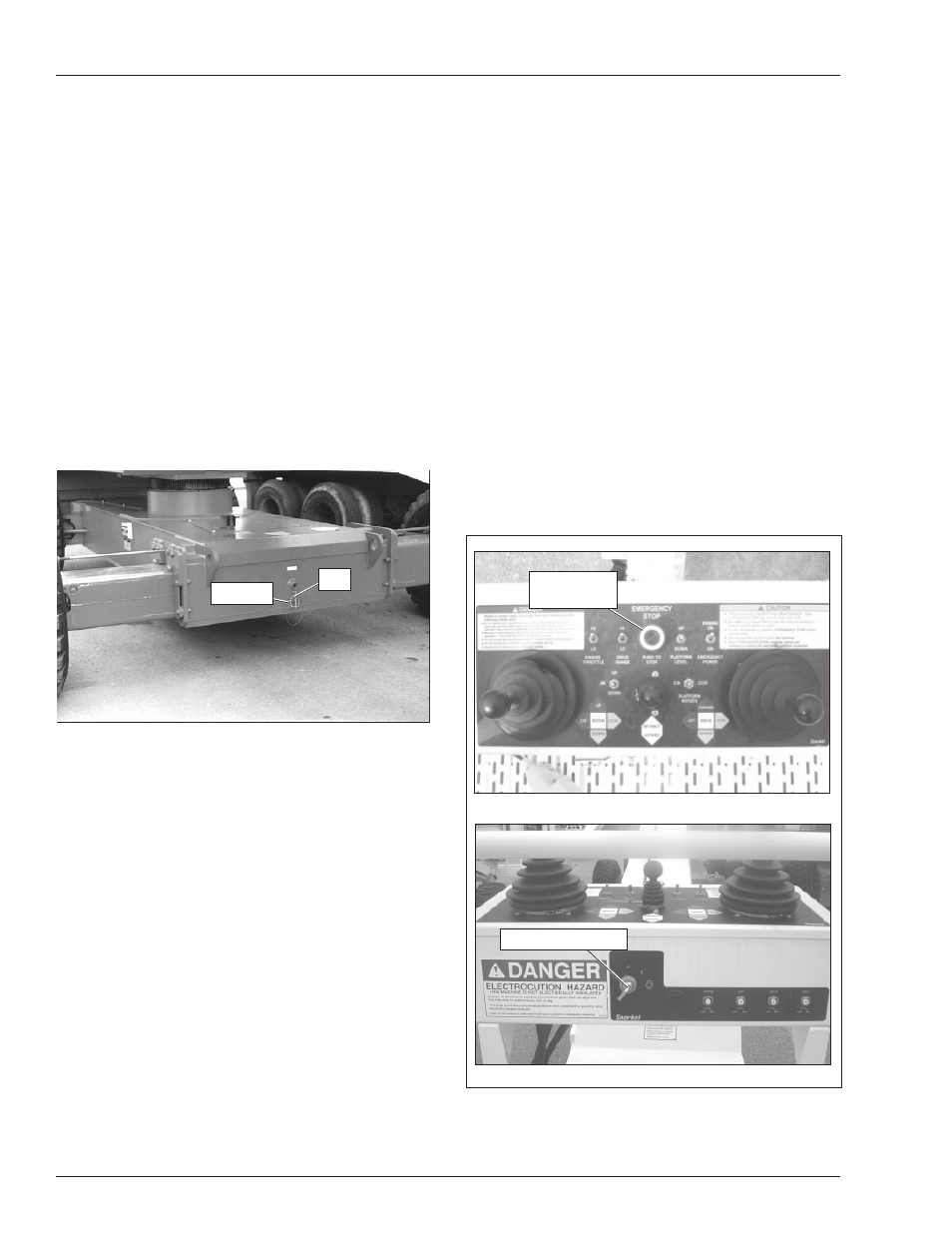

Figure 8.5 – Axles Extended and Pinned
6. Hold the jack lever in the lower position until the rear
wheels are on the ground and the jack has stopped
retracting.
Retracting The Rear Axles
The axles can be retracted by basically reversing the
above procedure.
A
Danger
The aerial platform can tip over if it becomes un-
stable. Death or serious injury can result from a tip-
over accident. In the event of a system malfunction,
do not retract the axles while the booms are el-
evated.
The booms must be completely retracted and lowered
before retracting the rear axles.
Upper Controls
The upper controls may be used for driving the aerial plat-
form and positioning the booms and platform while on the
job.
Use the following procedure to operate machine func-
tions using the upper controls.
1. At the lower controls, place the emergency stop
switch in the on position and turn the start switch on.
Place the controls switch in the platform position.
2. On dual fuel machines, set the fuel switch to either
LPG or gasoline.
3. Open the shut-off valve on the tank if using LPG.
4. Enter the platform and securely close the gate.
5. Attach the fall restraint lanyard to one of the anchor
points.
6. Pull the emergency stop outward (refer to Figure 8.6).
Figure 8.6 – Upper Controls
Pin
Pin Lock
Top
Emergency
Stop Button
Front
Master Start Switch
