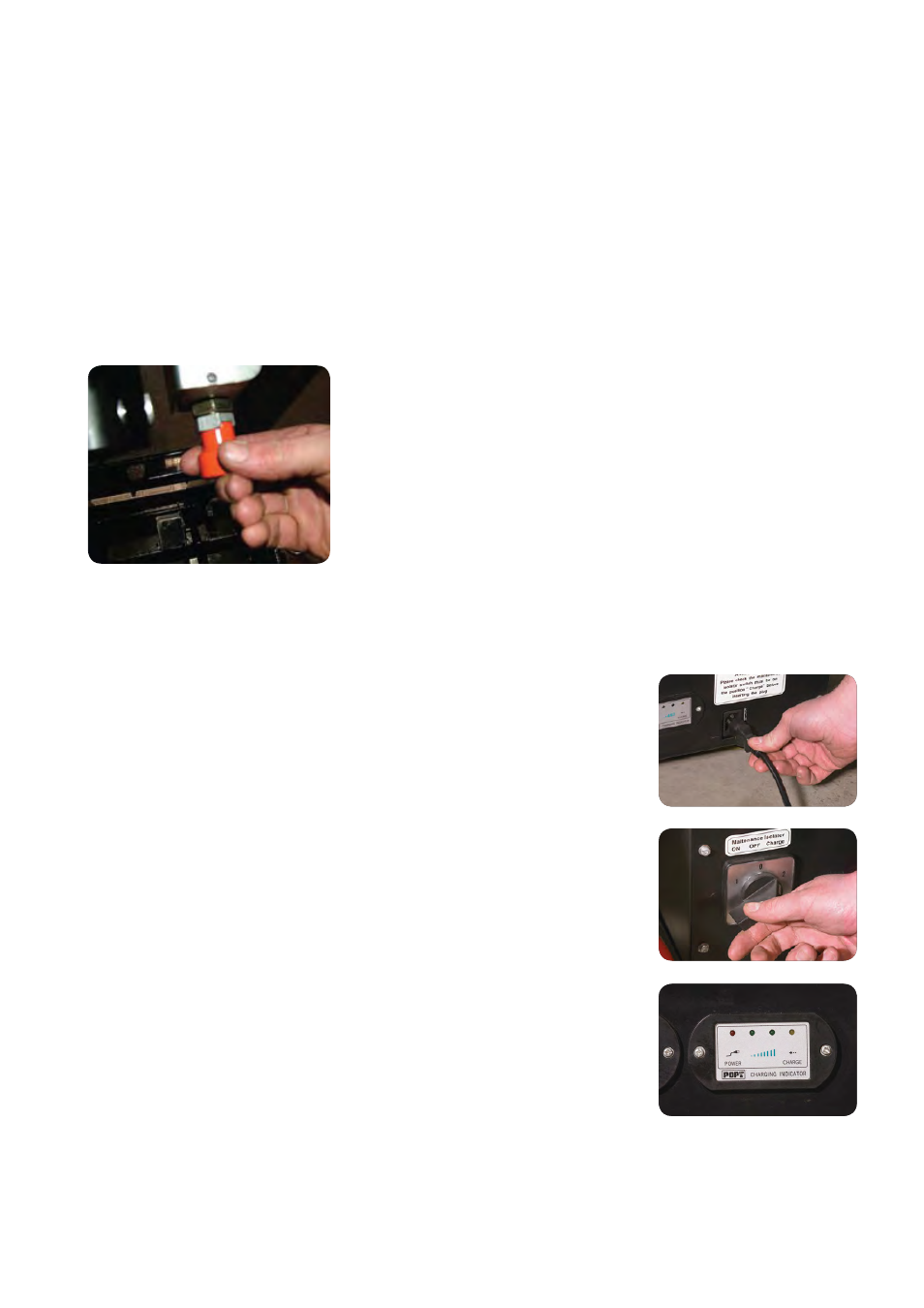

Emergency plunger valve
The plunger valve must be reset to enable the machine to operate correctly.
To reset the valve firstly ensure Valve’B’ has been fully closed. Depress
the raise button on the pendant control and raise the platform until the
maintenance stands can be deployed. Once the stands have been deployed
simply pull Plunger ‘A’ and turn through 90 degrees. Push the plunger back
into the slot as shown left.
Depress the raise button once again and reset the maintenance stands. The
machine is now able to operate correctly.
Section 4
OPERATING INSTRUCTIONS
Page 14 of 25 Operator’s Safety and Maintenance Handbook (
Battery charging
A battery condition meter is fitted to the Pop-Up+ as shown. This meter
displays the amount of charge in the battery.To accurately check the battery
condition, a load must be applied across the battery, elevating the machine
from ground level will achieve this. Stand away from the machine with the
control pendant and press the UP button whilst observing the bars on the
meter. All bars illuminated shows that the battery is fully charged. If less
than four bars are on the display, the battery requires charging.
The Pop-Up+ is supplied with a dedicated battery charger, which is
separate to the machine. Do not use any other type of battery charger to
charge your Pop-Up+ machine.
To charge the battery, follow these steps:
1. Turn the power selector switch to ‘0’ (OFF) position.
2. Connect either the 240V or 110V lead (depending on mains supply)
to the Pop-Up+ at the point shown.
3. Connect the mains lead to a suitable power supply (either 110V or 240V)
4. Turn the power selector to ‘2’ (CHARGE) position and leave the charger
to complete the charging cycle. It will shut off automatically once finished.
The battery should be fully recharged after a period of 12 hours, which
is indicated by the 95% light illuminating on the battery charging indicator
panel as shown.
