Section 4
OPERATING INSTRUCTIONS
Page 11 of 25 Operator’s Safety and Maintenance Handbook (
Battery isolation switch
The Pop-Up+ is provided with a key operated switch which is used to isolate
the battery and therefore the electrical system, preventing unauthorised use.

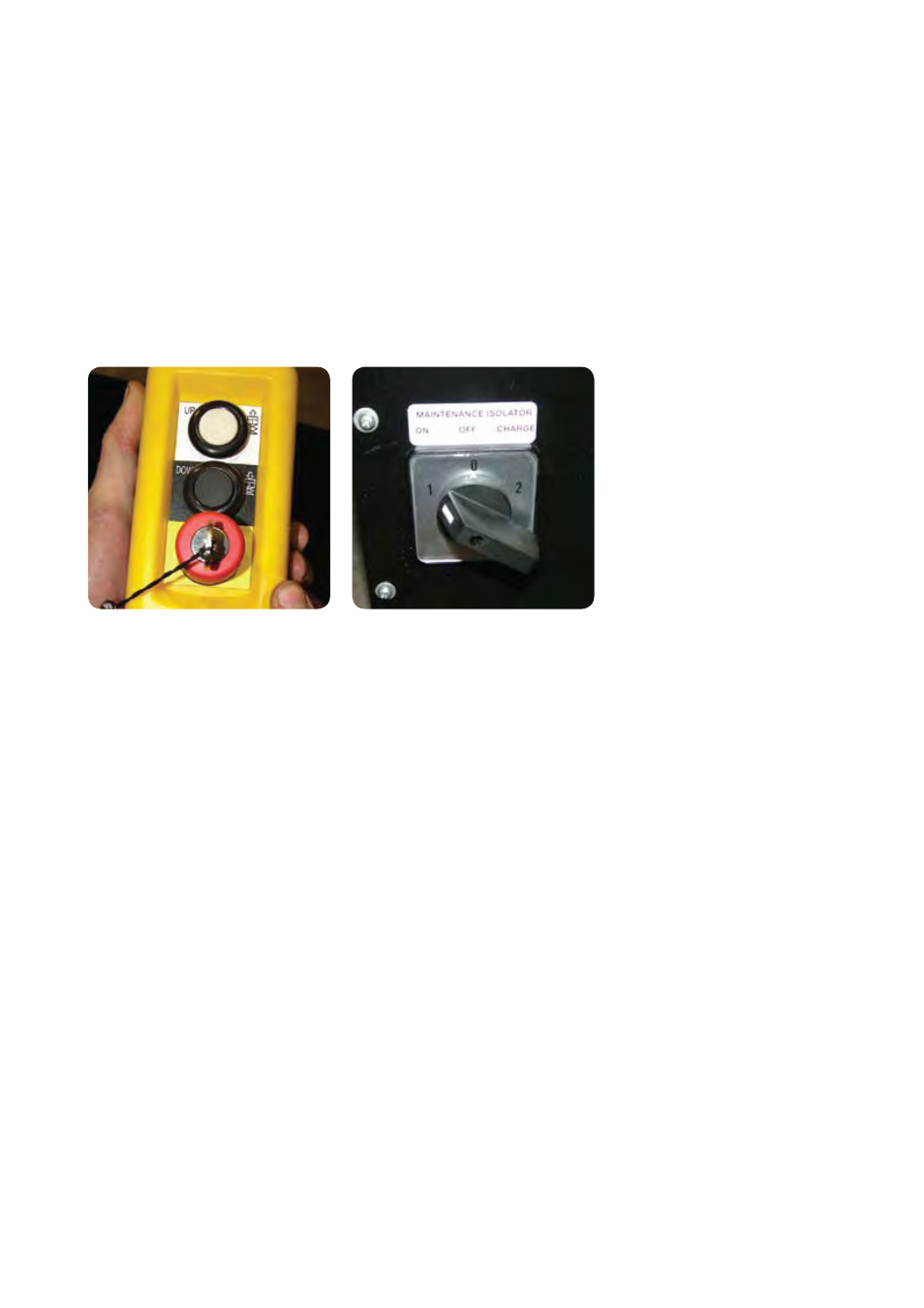

To enable the electrical system, insert the key and turn clockwise, as shown
below, making sure the emergency stop button is fully released.
Ensure that when the machine is not in use, the emergency stop button
is depressed and the key removed. Further electrical isolation can be achieved
by selecting ‘0’ on the power selector switch. Position ‘1’ is for normal operation
and position ‘2’ is for charging the machine.
