On the ground con trol box set the Ground/Plat -
form Se lec tor to plat form.
Check that each of the platform moving switches
(

through to
ƒ
) cause the platform to move the
way it should.
Check both po si tions of each switch.
For cor rect op er at ing pro ce dures see the ”Op er a -
tion” chap ter 8.
NOTE
Pay particular attention to the Emergency Stop
switch „to see that it turns the MHP12/34J
engine off when struck.
Pay particular attention to the platform foot switch
to see that it deactivates the platform moving
switches when the foot switch is not stepped on.
■ AC Outlet RCD/ELCB (option)

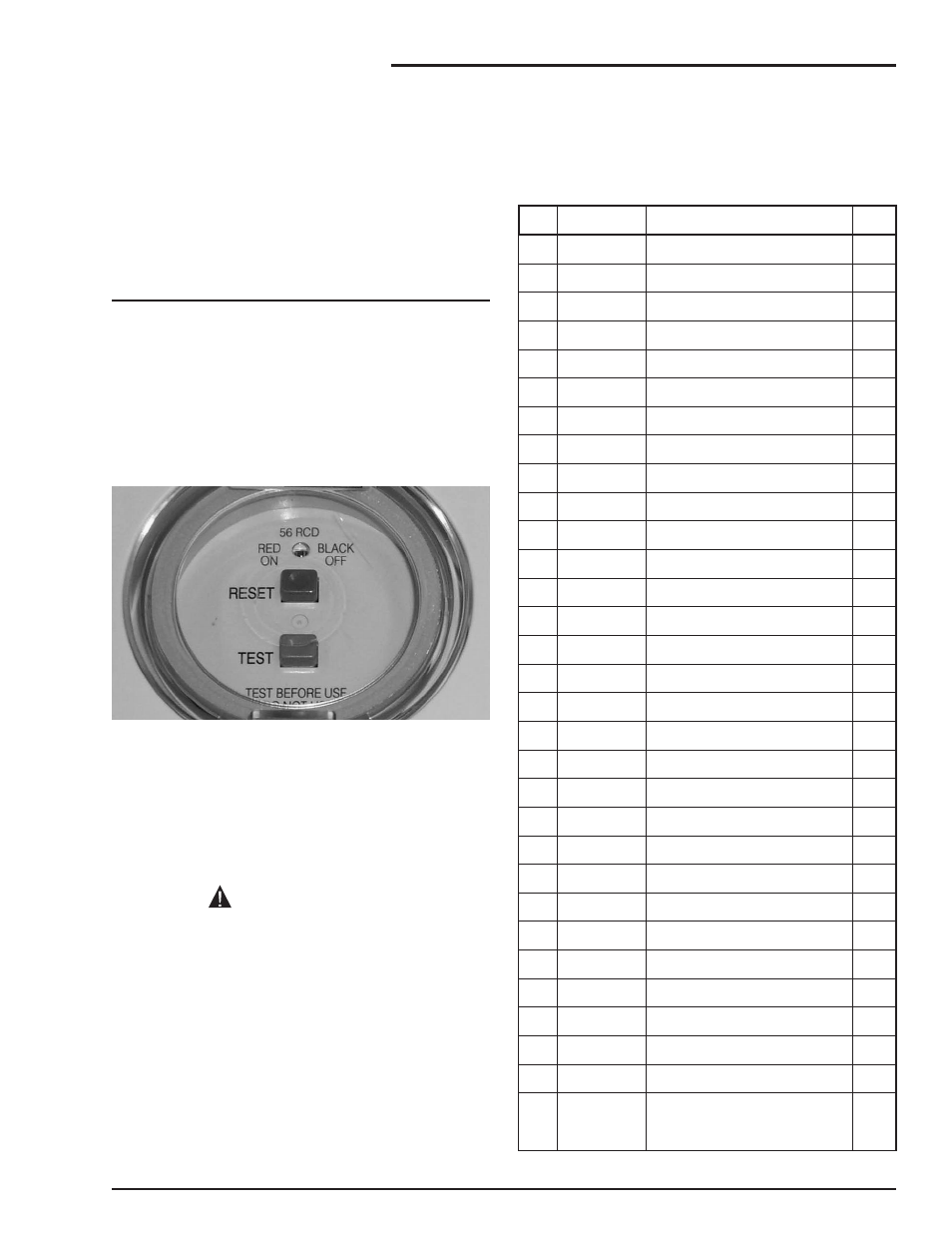

Figure 7.25 - AC Outlet RCD/ELCB
If the MHP12/34J has this op tion fit ted check the
RCD works by con nect ing a power source to the
base in let and an ap pli ance to the plat form out let.
Push the test but ton on the RCD/ELCB de vice and
the power out let at the plat form should not work.
RCD/ELCB devices should only be replaced
by a qualified electrician.
■ Placards and Decals
Look to see that all plac ards and de cals are in place
and leg i ble. Re place any miss ing or il leg i ble plac -
ards or de cals be fore plac ing the MHP into ser vice
for the daily work shift.
De cal and plac ard kits for the MHP12/34J are
avail able from Snor kel deal ers.
❑
Standard placards and decals
See page 7 - 8 for the fol low ing items.
MHP12/34J – 11447A page 7 - 7
7. Daily Inspection and Maintenance
CAUTION
No Part No Description Req
1 9999 Serial number plate 1
2 451776 Decal - Hydraulic fluid level 1
3 108172 Decal - Snorkel 2
4 302950 Decal - Hydraulic oil level 1
5 7856-45 Decal - Tyre pressure 2
6 7855 Decal - Towing speed 1
7 9207 Decal - Hydraulic oil 1
8 0070420 Decal - Emergency lower 1
9 560239 Decal - Snorkel 2
10 302559 Decal - Pinch point 2
11 10817-4 Decal - Snorkel 2
12 11227-34 Decal - MHP12/34J 2
13 007-1925 Decal - Gasoline 1
14 300699 Decal - Operator checklist 1
15 0130025 Decal - Warning 1
16 0323897 Decal - Danger 1
17 476706 Decal - Danger explosive gas 1
18 11420 Decal - Lower control box 1
19 0323899 Decal - Electrocution hazard 1
20 0150602 Decal - Descending boom 4
21 451986 Decal - Limit switches 5
22 9223-3 Decal - Chevron 4
23 10968-1 Decal - Outrigger control 1
24 8945 Decal - Vin plate 1
25 11420-1 Decal - Upper controls 1
26 2025-200 Decal - Safe working load 1
27 99228 Decal - Caution 1
28 1772-002K Decal - Boom lock pin 2
29 7030004 Decal - OmniQuip 2
30 11287-3 Decal - Chevron 4
31 9428 Decal - Danger (Australia Only) 1
1843 Decal - Warning (NZ Only) 1
