Page 11 XRT Work Platform

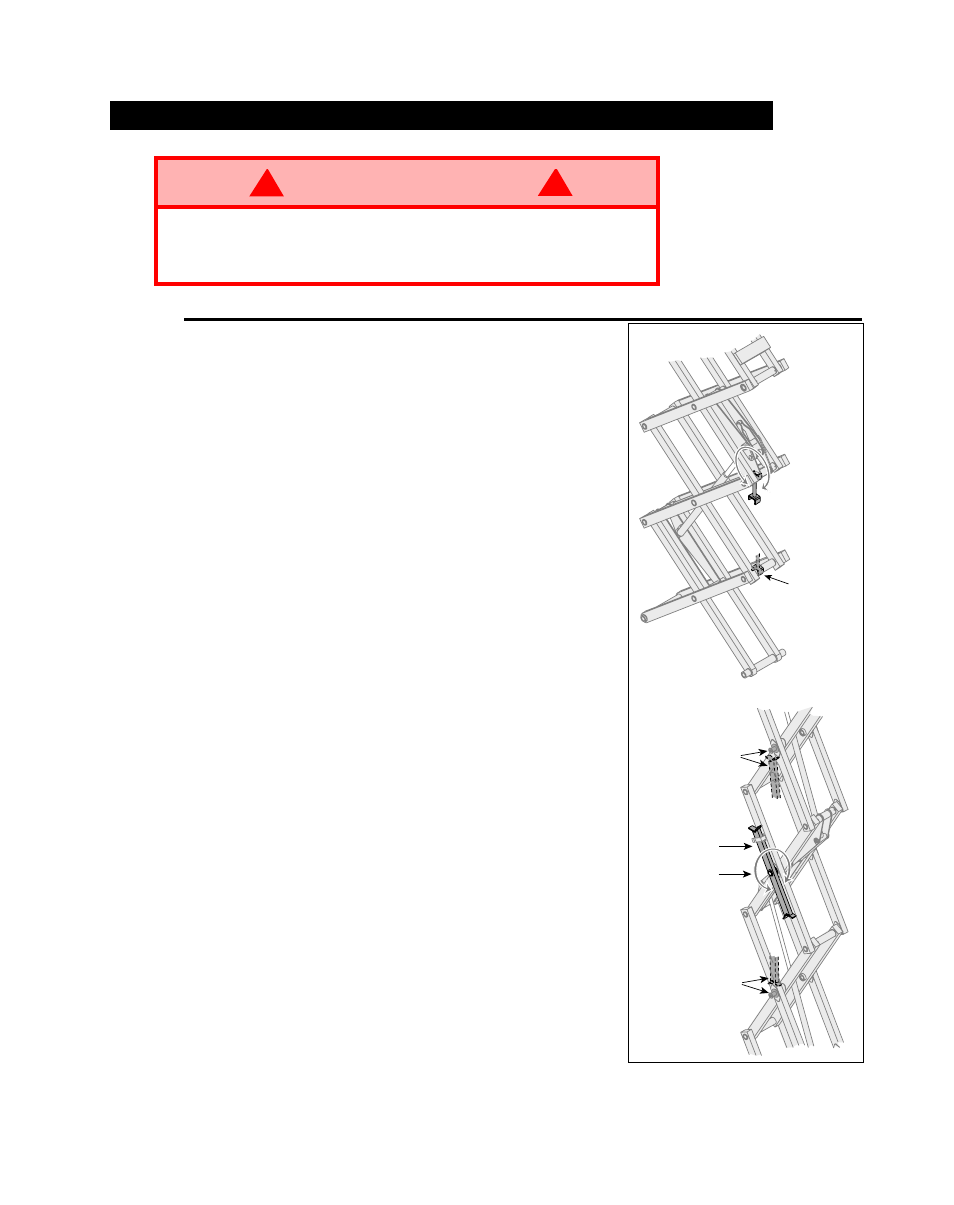

Figure 9: Blocking the Elevating Assembly
B LOCKING E LEVATING A SSEMBLY
B RACE I NSTALLATION
1. Park the work platform on a firm level surface.
2. Pull Chassis Emergency Stop Switch to the ON posi-
tion.
3. Pull Platform Emergency Stop Switch to the ON posi-
tion.
4. Turn Platform Controls Key Switch to ON.
5. Turn Platform/Chassis switch to CHASSIS.
6. Push and hold the START button to start the engine.
Release the button once the engine starts.
7. Push the THROTTLE button, and push the RAISE
button to elevate platform until the Scissor Brace can
be rotated to the vertical position.
8. XRT27-From rear of machine, lift the Scissor Brace
from its stowed position. Rotate upward and outward
then down until it is hanging vertical below its attach-
ment point.
9. XRT33-From the left side of the machine, pull the
locking pin securing the brace. Rotate the Scissor
Brace counterclockwise until it is in the vertical posi-
tion.
10. Lower the platform by pushing in on the Chassis Con-
trols LOWER button and gradually lower the platform
until the Scissor Brace is supporting the platform.
B RACE R EMOVAL
1. Using the Chassis Controls, gradually elevate the
platform until the scissors brace is clear.
2. XRT27- Rotate Scissor Brace outward and upward
over its mounting point until it rests in the stowed
position.
3. XRT33-Rotate scissors brace clockwise until the lock-
ing pin engages.
4. Lower the platform by pushing in on the Chassis Con-
trols LOWER button to completely lower the platform.
M AINTENANCE
W A R N I N G ! !
Never perform service in the elevating assembly area while platform is
elevated without first blocking the elevating assembly.
DO NOT stand in elevating assembly area while deploying or storing brace.
DO NOT block elevating assembly with a load on the platform.
BRACE RESTS ON
WELDMENT WHEN IN
BLOCKING POSITION
ROTATE BRACE
CLOCKWISE
TO BLOCK
PIN RESTS ON
BRACE WHEN IN
BLOCKING POSITION
SCISSOR BRACE
IN REST POSITION
BRACE ROTATES
TO BLOCKING
POSITION
BRACE RESTS ON
PIN WHEN IN
BLOCKING POSITION
XRT27
XRT33
