■ Operating The Auto Level System
❑
Setting the stabilisers automatically
1. The engine must be running and the RT set
for platform control box operation.

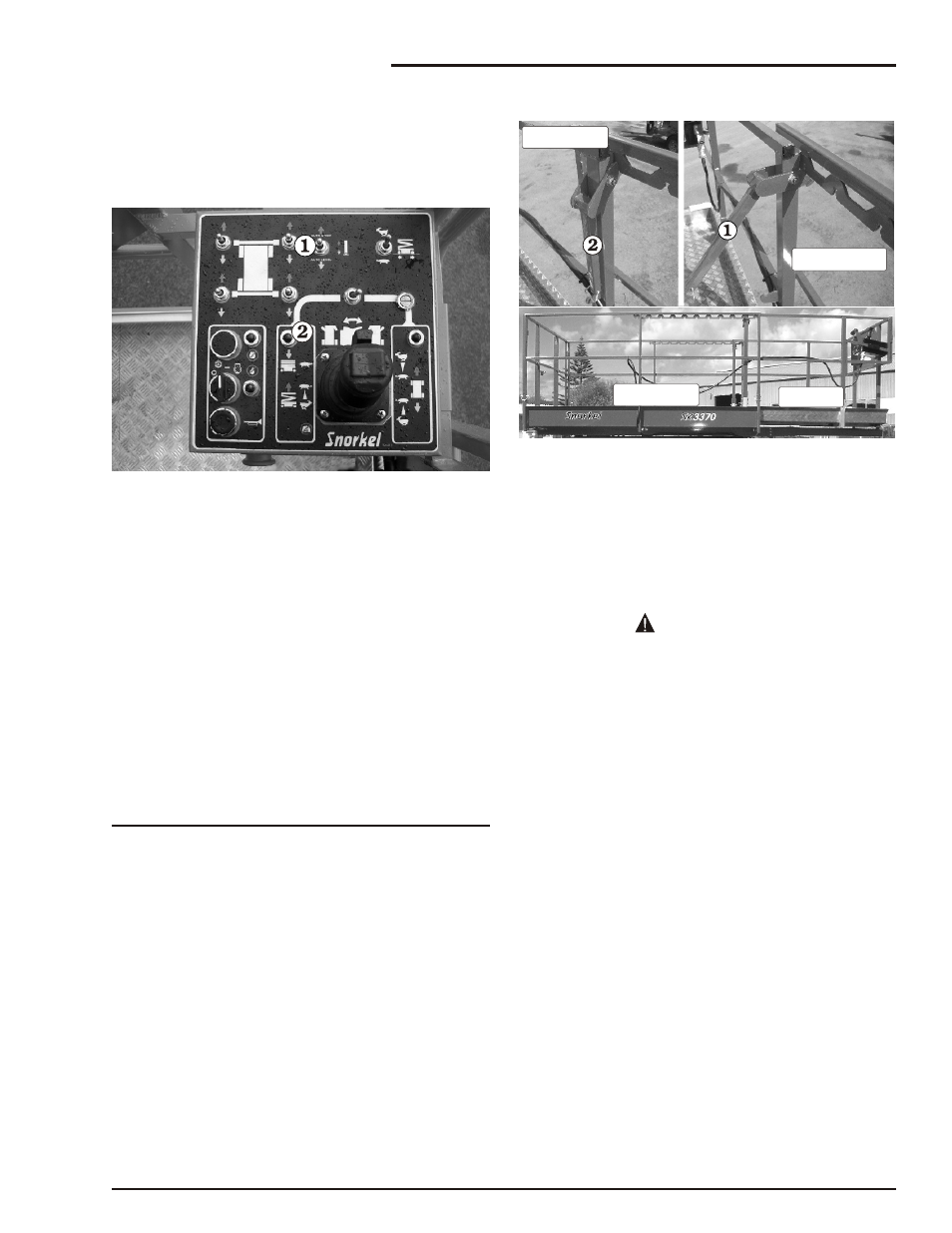

Figure 8.25
2. Press and hold the switch  down to the
‘Auto Level’ position until all movement
stops or the Lift Enable Light €
illuminates.The
RT will attempt to
automatically level itself.
3. The Lift Enable Light € will illuminate if all
4 feet are in contact with the ground and the
machine is level.
4. If a stabiliser foot will not go down sufficiently
to make contact with the ground it is possible
that the cylinder has reached the end of its
stroke. Retract all stabilisers and put suitable
dunnage under the feet that did not touch the
ground and repeat step (2).
NOTE:
Manual or auto levelling is possible any time that
stabiliser movement is allowed. For example, the
machine can be manually levelled part way and
then auto levelled without the necessity of
retracting the stabilisers between the two
operations.
❑
Raising the stabilisers automatically
1. Completely lower the platform.
2. Press and hold the switch  up to the ‘Auto
Stow’ position. The stabilisers will raise to
the stowed position.
■ Extending The Multi-Position Platform
Figure 8.26
The MULTI-po si tion ex tend ible plat form (see Fig -
ure 8.26) can be se curely locked into dif fer ent po si -
tions. To move it from one po si tion to the other do
the following:
1. Stand on the non-extendible part of the
platform and face the front of the machine.
The distribution of the RATED WORK LOAD
changes when the extendible platform is
extended. Read the decal on the toe board at
the front of the platform or at the entrance to
the platform for safe weight distribution.
2. Lift up the deck extension handles (one for
each side of the deck)  to unlock the deck
(see Figure 8.26).
3. Push or pull the deck extension handles to
move the platform to the desired position.
4. Lower the deck extension handles and allow
the lock € to locate (see Figure 8.26).
SR3370 & SR2770 – 13184A Rev A page 8 - 9
8. Operation
WARNING
DECK EXTENSION
HANDLE LOCKED
DECK EXTENSION
HANDLE UNLOCKED
NON-EXTENDABLE
PLATFORM
EXTENDABLE
PLATFORM
