The swinging gate should be closed at all times ex-
cept when someone is entering or leaving the plat-
form.
■ Safety Control

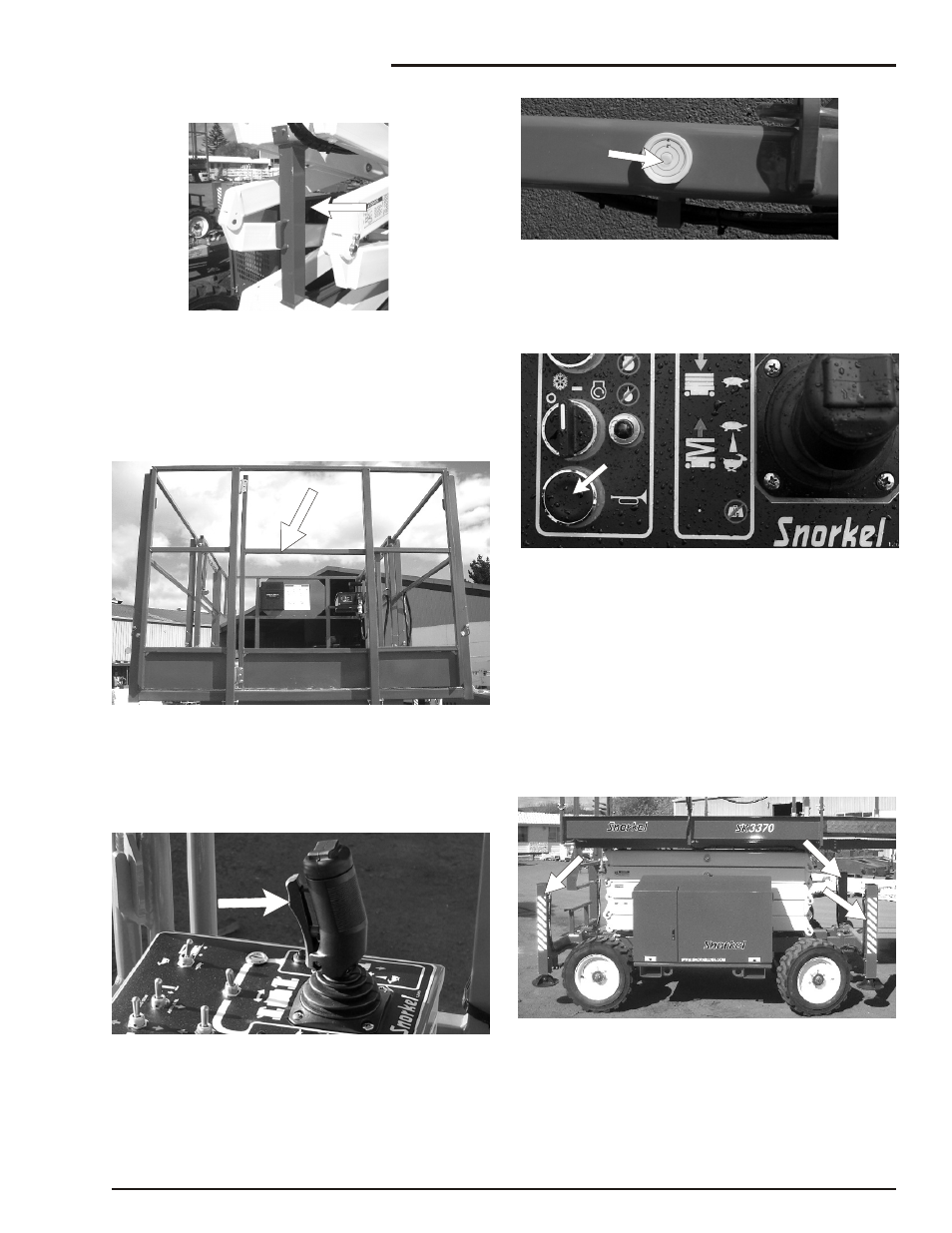

Figure 2.7 - Joystick Safety Control
The safety control must be squeezed and held to
activate the joystick. The safety control prevents
the joystick from moving the platform if something
accidentally pushes the joystick. Do not disable the
safety control in any way.
■ Bubble Level
Figure 2.8 - Bubble Level
See the Gauges chapter 4 for a discussion of the
e l b b u b level.
■ Operator Horn
Figure 2.9 - Operator Horn
The operator horn is used primarily to get the atten-
tion of people on the ground when you are working
aloft. For the horn to work the following switches,
on the ground control box, must be set as indi-
cated:
MAIN POWER........................ON
EMERGENCY STOP..............ON (up)
SELECTOR............................PLATFORM
■ Stabilisers (Option)
Figure 2.10 - Stabilisers
The stabiliser controls are on the upper left side of
the platform control box. The stabilisers are used to
level the RT (for complete stabiliser operating pro-
c edures see the Operation chapter 8).
SR3370 & SR2770 – 13184A Rev A page 2 - 3
2. Safety Devices
Figure 2.5 - Safety Prop
Always raise the safety prop then lower the scis -
sor-arm as sembly onto the safety prop be fore
reaching into the scis sor-arm as sembly for any
reason.
■ Swinging Gate
Figure 2.6 - Swinging Gate
■ Safety Prop
