sta
bi
lis
ers is even slightly low
ered the DRIVE
func tion is dis abled.
■ Operating The Stabilisers Manually
❑
To set the stabilisers
1. The engine must be running and the
RT set
for platform control box operation.

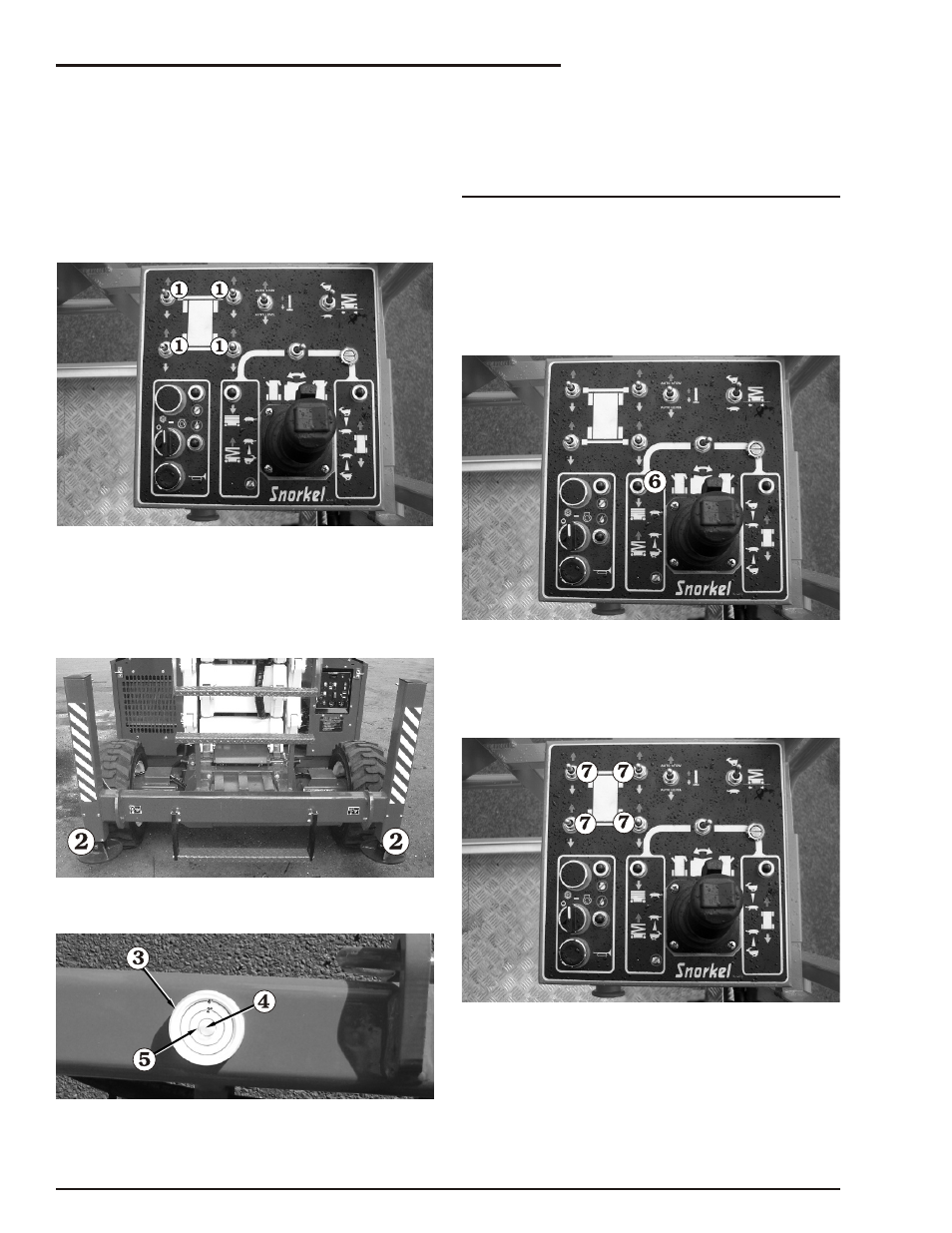

Figure 8.20
2. Pull and hold the Stabiliser switches (see
Figure 8.20)backward, one at a time, until all
four stabiliser pads (see Figure 8.21)
contact the ground.
Figure 8.21
Figure 8.22
3. Visually check the bubble level to
determine which stabilisers must be further
extended to level the platform (see Figure
8.22).
NOTE
When the bubble in the bubble level is in the
center of the ring , the platform is level.
4. Lower the appropriate stabilisers just enough
to center the bubble (see Figure 8.22).
When the Lift Indicator Light (see Figure
8.23) comes on, the platform can be safely
raised.
Figure 8.23
❑
To raise the stabilisers:
1. Completely lower the platform.
Figure 8.24
2. Push and hold the Stabiliser switches
forward until all the stabilisers are completely
up (see Figure 8.24).
page 8 - 8
Rev A
SR3370 & SR2770 – 13184A
8. Operation
