4 X-Series Work Platform
E MERGENCY L OWERING
19. Pull out on the Emergency Lowering Knob to
check for proper operation. Once the platform
has lowered, release the knob.
20. Push the Chassis EMERGENCY STOP Switch
to check for proper operation. All the machine
functions should be disabled. Pull out the
EMERGENCY STOP Switch to resume.
21. Turn the Chassis Key Switch to DECK.
22. Check that the route is clear of obstacles (per-
sons, obstructions, holes, drop-offs, bumps,
and debris), is level, and capable of supporting
the wheel loads.
23. Mount the platform and properly close the
entrance.
P LATFORM C ONTROLS
24. Turn Lift/Drive Switch to DRIVE.
NOTE: Use both HI and LOW drive (if applicable) when
performing the following step.
25. Engage the Interlock Switch and move the
Control Handle FORWARD, then REVERSE,
to check for speed control.
26. Push the Steering Switch RIGHT, then LEFT,
to check for steering control.
27. Turn the Lift/Drive Switch to LIFT.
28. Engage the Interlock Switch and move the
Control Handle forward to check platform lift
controls. Raise the platform to full elevation.
29. Pull back on the Control Handle. The platform
should descend and the audible lowering
alarm should sound.
30. Lower the platform completely.
31. Push the Platform EMERGENCY STOP
Switch to check for proper operation. All the
machine functions should be disabled. Pull
out the Platform EMERGENCY STOP Switch
to resume.

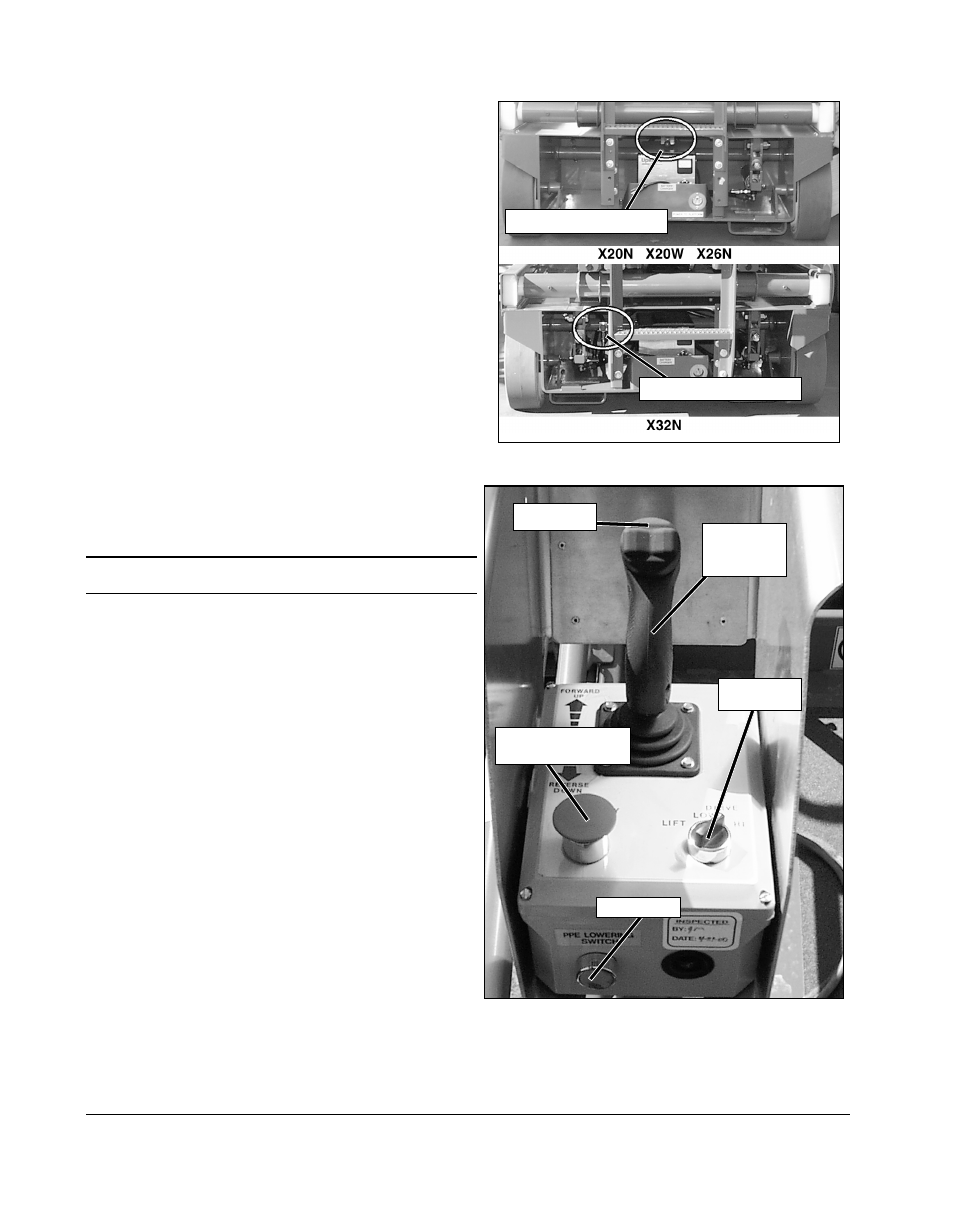

Emergency Lowering Knob
Emergency Lowering Knob
Figure 2: Emergency Lowering
Figure 3: Platform Controls
Steering
Switch
Control
Handle with
Interlock
Switch
Platform EMERGENCY
STOP Switch
PPE Switch
LIFT/ DRIVE
Switch
