13 X-Series Work Platform
M AINTENANCE
B LOCKING E LEVATING A SSEMBLY
I NSTALLATION
1. Park the work platform on a firm, level surface.
2. Pull Chassis EMERGENCY STOP Switch to the ON position.
3. Pull Platform EMERGENCY STOP Switch to the ON position.
4. Turn and hold the Chassis Key Switch to CHASSIS.
5. Push the Chassis Lift/Lower Switch to LIFT to elevate the platform
until the Scissor Brace can be rotated to the vertical position.
6. X20N, X20W, and X26N – From the rear of the machine, lift the
Scissor Brace from its stowed position. Rotate upward and out-
ward, then down until it is hanging vertically below its attachment
point.
7. X32N – From the left side of the machine, pull the locking pin
securing the brace. Rotate the Scissor Brace counterclockwise
until it is in the vertical position.
8. Lower the platform by pushing the Chassis Lift/Lower Switch to
LOWER and gradually lower the platform until the Scissor Brace
is supporting the platform.
R EMOVAL
1. Using the Chassis Controls, gradually elevate the platform until
the Scissor Brace is clear.
2. X20N, X20W, and X26N – Rotate the Scissor Brace outward and
upward over its mounting point until it rests in the stowed position.
3. X32N – Rotate the Scissor Brace clockwise until the locking pin
engages.
4. Lower the platform by pushing the Chassis Lift/Lower Switch to
LOWER to completely lower the platform.
W A R N I N G ! !
Never perform service while the platform is elevated without first blocking the
elevating assembly.
DO NOT stand in elevating assembly area while deploying or storing brace.
DO NOT block elevating assembly with a load on the platform.
BRACE RESTS ON
WELDMENT WHEN IN
BLOCKING POSITION
ROTATE BRACE
CLOCKWISE
TO BLOCK
PIN RESTS ON
BRACE WHEN IN
BLOCKING POSITION
SCISSOR BRACE
IN REST POSITION
BRACE ROTATES
TO BLOCKING
POSITION
BRACE RESTS ON
PIN WHEN IN
BLOCKING POSITION
X20N, X20W, and X26N
X32N

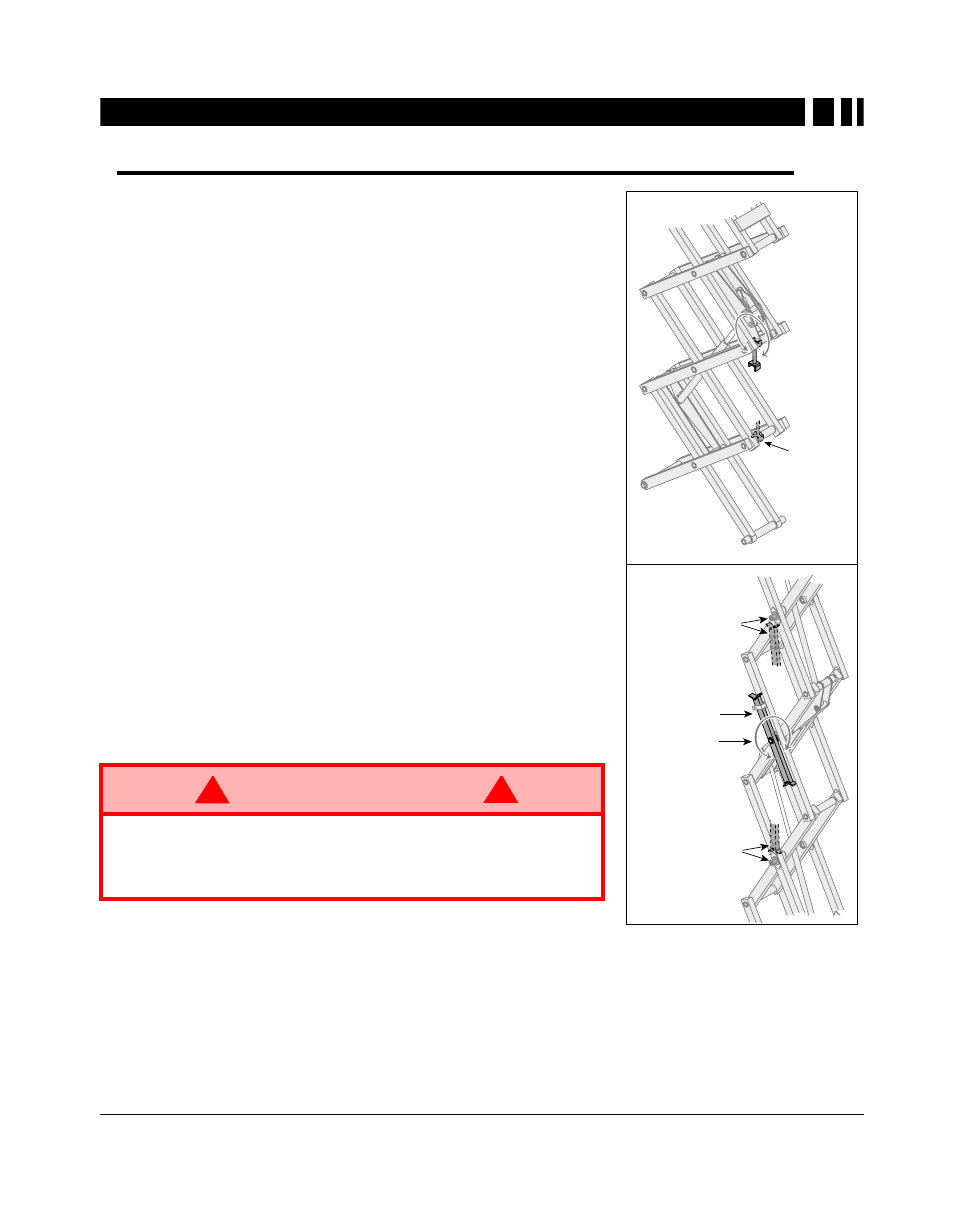

Figure 9: Blocking the Elevating
Assembly
