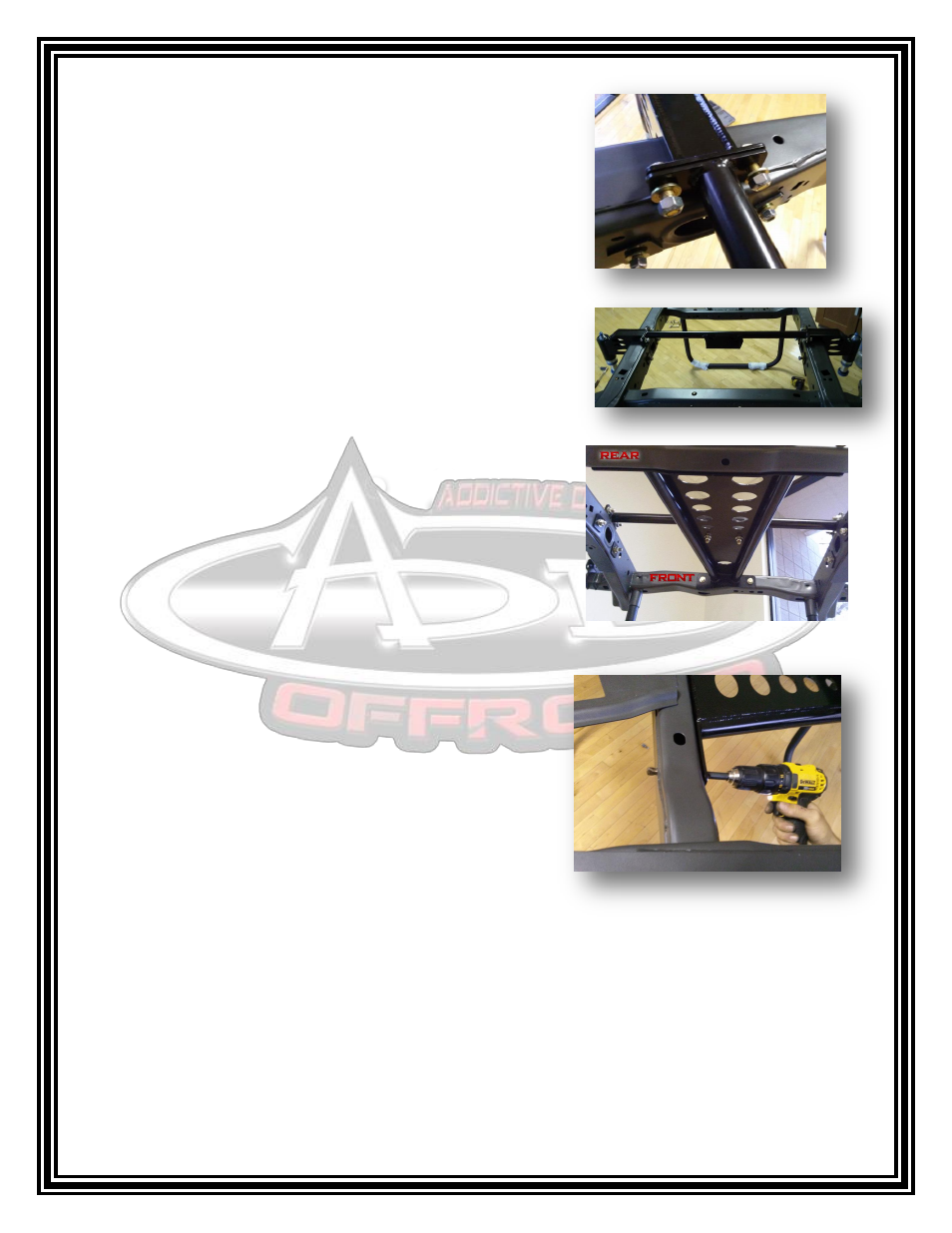

7. Install 4 of the 1½” x ½” Grade 8 Bolts with washers through
the cross member outer mounting plate to attach it to the
bump stop mount assembly. Use washers and start the
nuts.
****Do not tighten bolts yet.
8. Locate the large triangular frame support assembly. Place
the assembly under the truck with the wide end facing the
rear. From under the frame place the assembly against the
top plate of the cross member from step 7.
9. Locate the 1½” x ½” Grade 8 Bolts with washers to secure the
triangular frame support to the cross member through the 2
holes. Make sure you put washers on the bolts on both sides
and install the nut on the threaded end. Tighten these bolts
now.
10. Next, locate the 2 holes in the front smaller side of the
triangular frame support. Take the 90’ drill and ½” drill
bit and drill through the frame assembly through both
sides of the cross member. Install 4½” x ½” Grade 8 Bolts
to secure the triangular frame support to the factory
cross member. Make sure you use washers and put the
nuts on the threaded end of the bolt. ****Do not
tighten the bolts yet.
11. Locate the 4 holes in the rear larger side of the triangular
frame support. Again, take the 90’ drill and ½” drill bit and drill through the stock cross member.
Install 4½” x ½” Grade 8 Bolts to secure the triangular frame support to the stock cross member.
Make sure you use washers and put the nuts on the threaded end of the bolt.
12. Now tighten all of the bolts mounting the triangular frame support to the cross members. You
should have all 8 bolts mounting this assembly tight.
