For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 W Artesia, Compton, CA 90220
Installation Instructions:
(Part # SB2740)
I-Rack
(Intelligent Racking System)
Revised 12.8.09
Jack Mounting Instructions:
Step 1: Choose mounting the holes that mount the jack at your desired height. Install the
jack mount studs (90-4249) into the previously chosen holes in the I-Rack main body and
secure using the 1/2” hardware. (Fig B)
Step 2: Install the Jack onto the mounting studs (90-4249) using the supplied spacers (90-
2466), cushions and retainers from pack (P-1029). Secure using 1/2” wing nuts (90-5765).
(Fig B)
Step 3: Tighten the 1/2” wing nuts (90-5765) until the quick disconnect pin holes are ex-
posed. Install the quick disconnect pins (90170A212) into the jack mount studs. (Fig B)

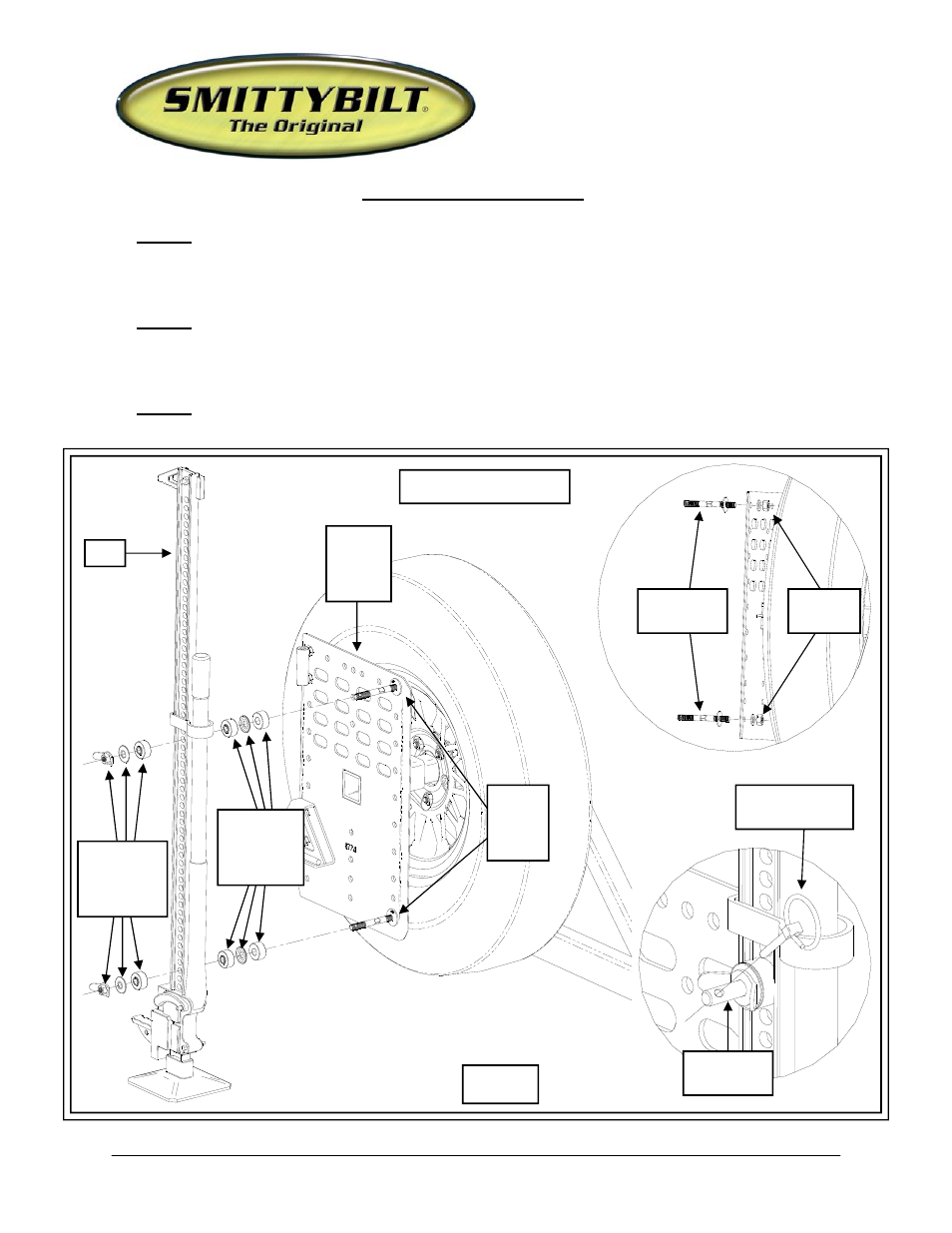

(Fig B)
Jack
90-5765 1/2”
Wing Nut,
Retainer and
Cushion
Cushion,
Retainer,
and 90-2466
Spacer
91-5774
I-Rack
Main
Body
90-4249
Jack
Mount
Stud
90-4249 Jack
Mount Stud 1/2”
Hardware
90-4249 Jack
Mount Stud
90170A212 Quick
Disconnect Pin
Typical Installation
