Installation Instructions

Defender Series Rack Mount

Part #DS1-6, DS1-8, DS3-6, DS3-8,

DS4-4, DS4-6, DS4-8, DS9-4, DS9-6,

DS10-6, DS10-8, DS16-6, DS17-6

Part# DS17-6

Parts Included Qty

Bracket (DS16) 6

5/16” Lock Washer 12

Hardware Pack (DS16-6-HP)

5/16” Nut 12

5/16” x ¾” Bolt 12

5/16” Flat Washer 24

Step 1:

Place the Defender rack on the factory roof rails in desired location.

Step 2:

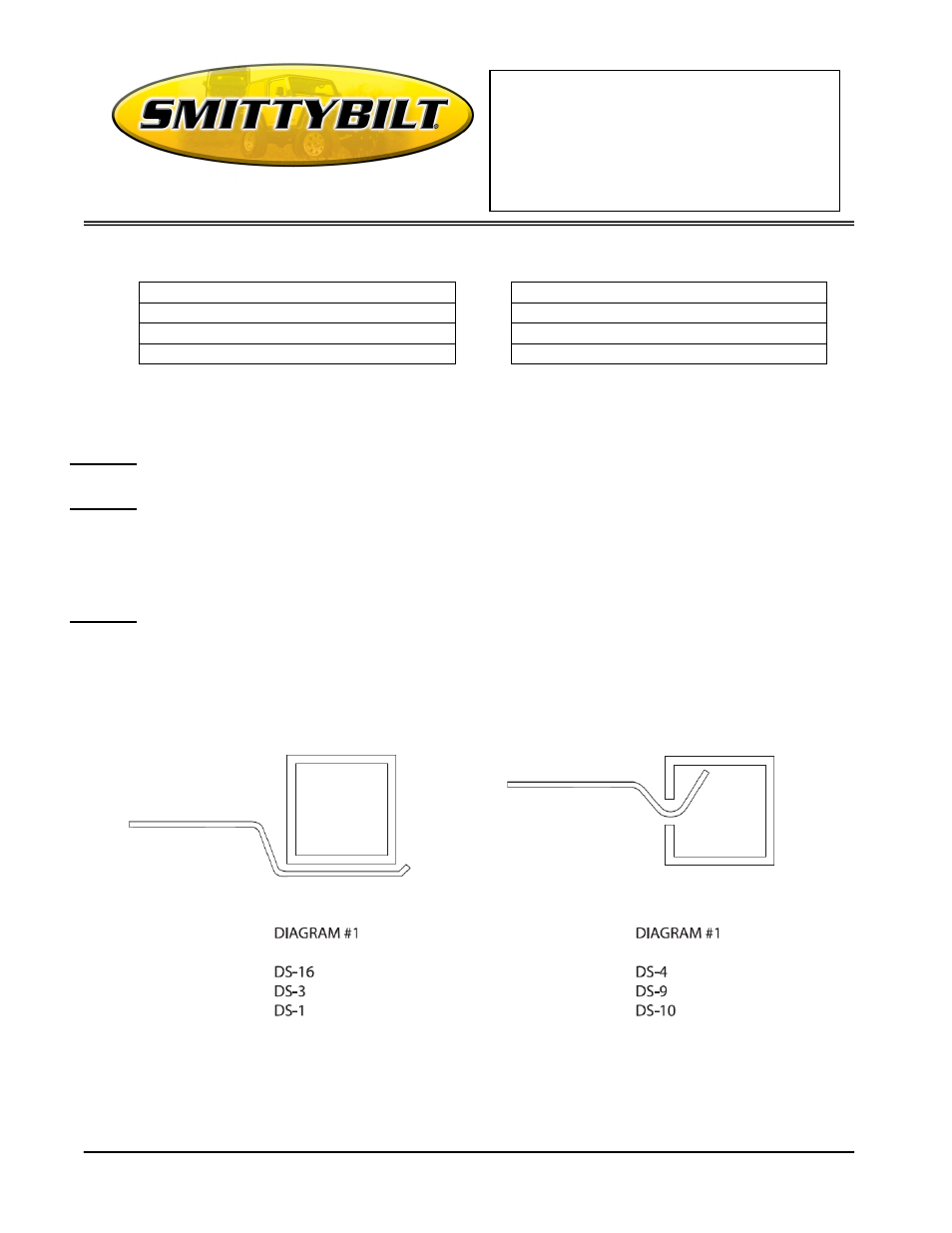

Install the mounting brackets to the rack with the cupped portion either under or
inside the factory rail depending on application. (Fig A,B) Attach the brackets to the
rack using the 5/16” x ¾” bolts with flat and lock washers. Do not tighten at this
time.

Step 3:

Once all the brackets are in place, tighten all mounting hardware, installation is

now complete.
