Installation Instructions:
(Part # SB76654)
87-06 Jeep TJ/YJ XRC Tire Carrier
ware in the remaining hole. (Fig. C1). Leave bolts snug only. For YJ models only: in the
remaining tire carrier hole, insert the 7/16” X 1 1/2” bolt, nut plate (90-5847 inserted
through the upper or lower drain hole in the tire carrier) and 7/16” nut and 1/2” washer.
(Fig. C2). Leave bolts snug only.

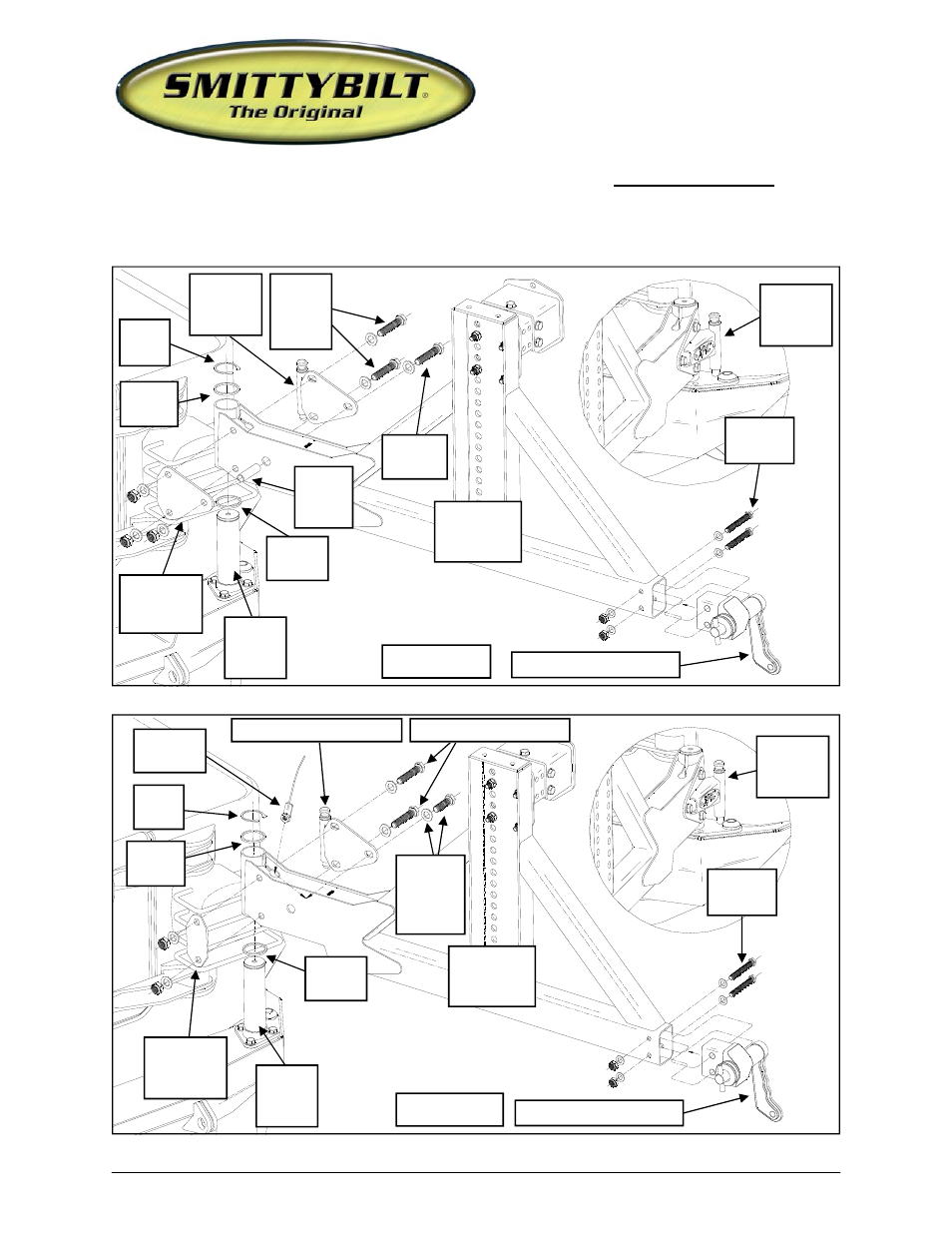

(Fig C1) TJ
Pivot
Shaft
93-2997
90-8000
Spacer
Tube
Nylon
Washer
Nylon
Washer
Circle
Clip
1/2” X 3
1/4”
Pinch
bolts
1/2” X 3
1/4” bolt
Tire Carrier
Brace
93-5642
90-4214 Handle Assembly
3/8” X 2
1/2” bolts
93-5661
Lock Out
Bracket
93-5661
Lock Out
Bracket
TJ Support
Plate
93-5731
Tire Carrier
Brace
93-5642
(Fig C2) YJ
93-5661 Lock Out Bracket
90-5847
Nut Plate
Circle
Clip
Nylon
Washer
Nylon
Washer
Pivot
Shaft
93-2997
YJ Support
Plate
93-5845
93-5661
Lock Out
Bracket
3/8” X 2
1/2” bolts
90-4214 Handle Assembly
1/2” X 3 1/4” Pinch bolts
7/16” X 1
1/2” bolt
& 1/2”
Washer
