Installation instructions – Smittybilt 76621-01 Rock Crawler Rear Bumper W/Tire Carrier User Manual
Page 3
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
Rock Crawler Rear Bumper W/Tire Carrier
1987-2006 Jeep Wrangler
Part # 76621-01 (Bumper)

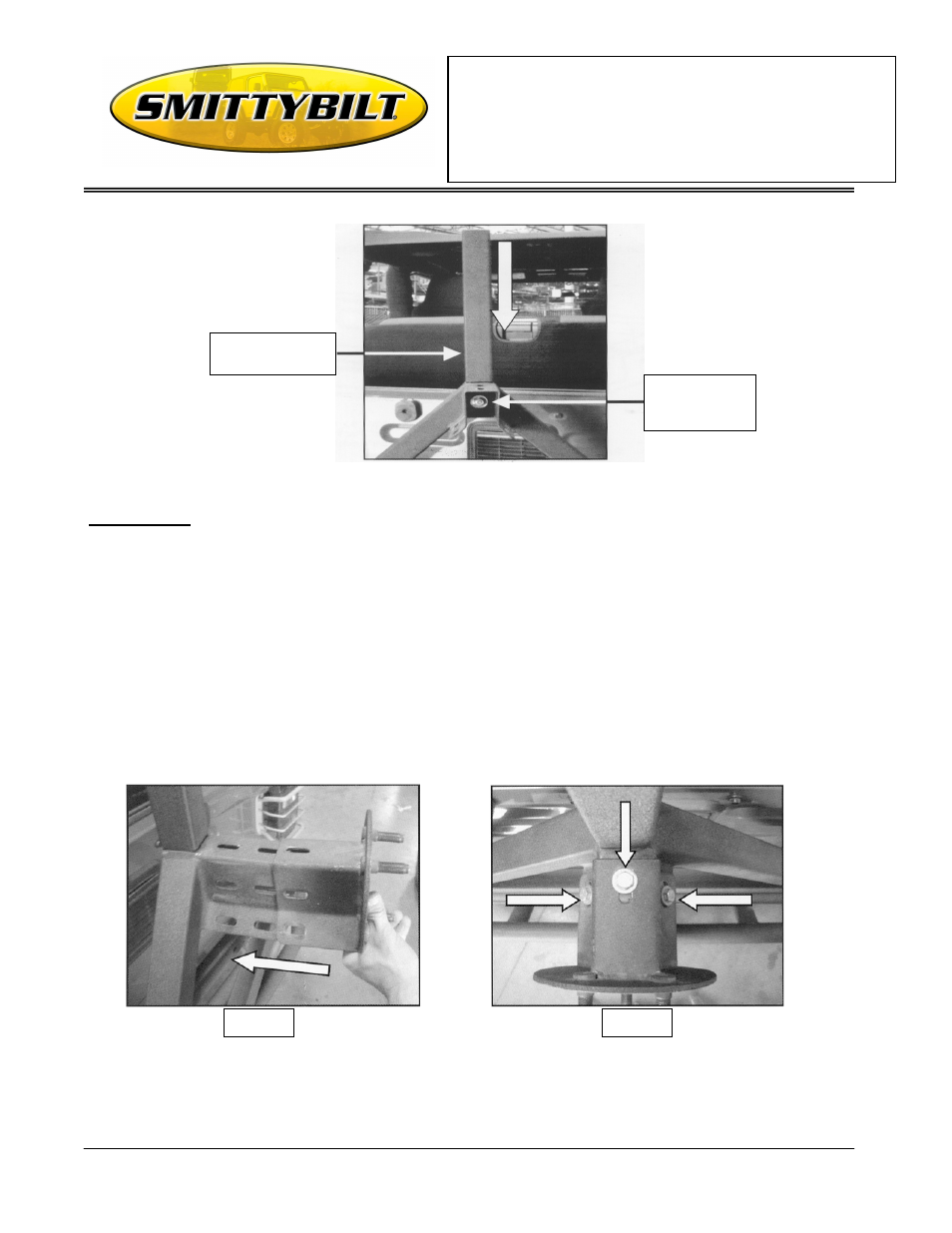

(Figure 4)
Section Four
11.
Locate tire mounting bracket, (3) 3/8 x 1” Hex Head Bolts, (6) 3/8” Flat Washers, (3) Lock Nuts.
Slide the tire mounting bracket over support bracket on carrier. Lineup the 3 slotted holes and install
with the 3/8” hardware. (Figure 5,6) Note: There are two sets of slotted holes. This is to accommodate
oversize tires. Determine the best position for your tire size and then tighten all hardware on mounting
bracket. For best results the back side of the tire should rest against the (Triangle) tire carrier.
Top Post
7/8”
Hardware
Fig 5
Fig 6
