Smittybilt 76621-01 Rock Crawler Rear Bumper W/Tire Carrier - Manual (Page 2)

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
Rock Crawler Rear Bumper W/Tire Carrier
1987-2006 Jeep Wrangler
Part # 76621-01 (Bumper)
Section Three

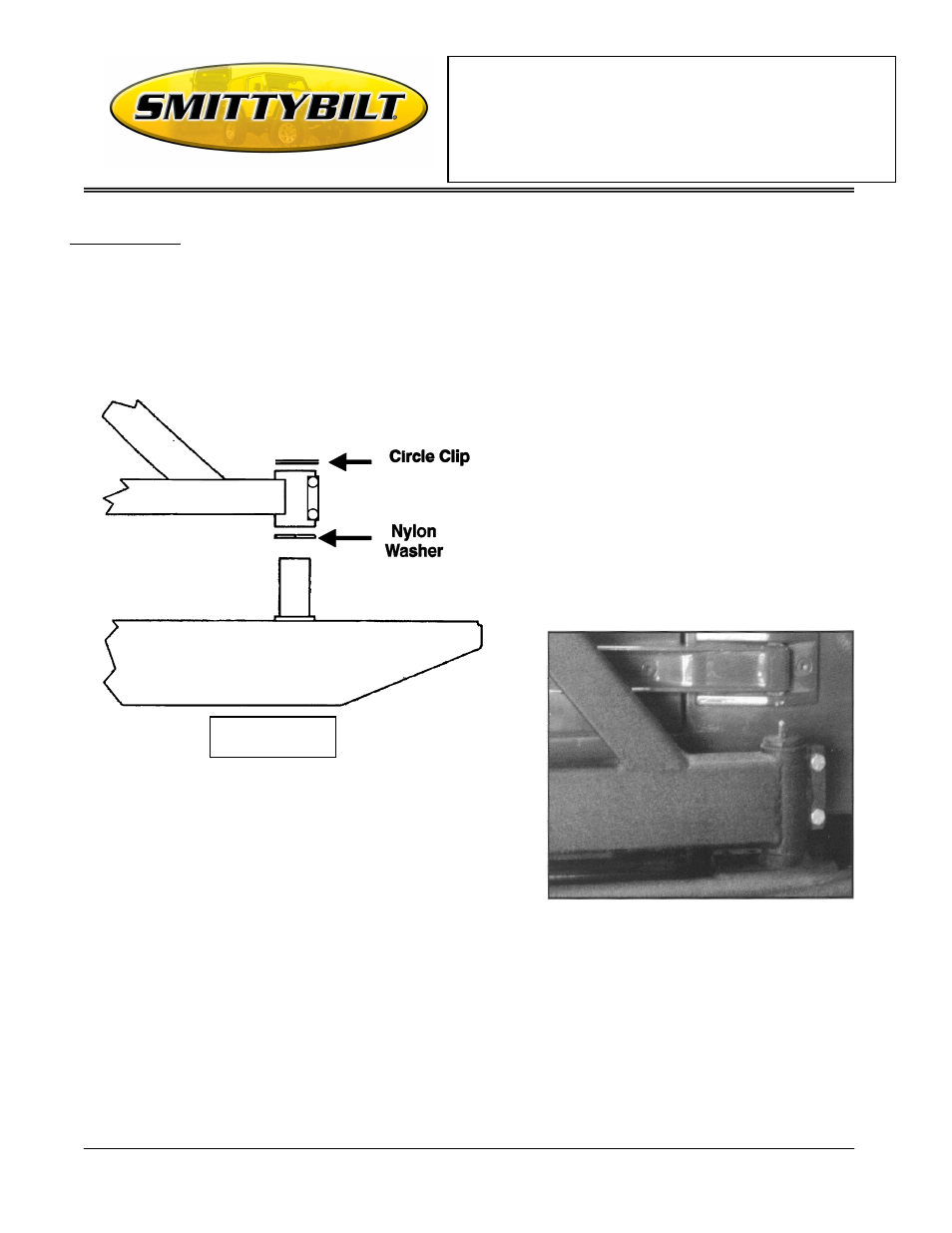

8. Place nylon washer over rear bumper post, then place tire carrier on top. Once the tire carrier has been
place over post, swing it to the closed position and latch it into place. Secure it with the already
installed bolts. (Figure 2 and 3)
9. Carefully place the Circle Clip on top of the post over the tire carrier portion.
(Figure 3)
10. Locate the tire carrier top post, along with (1) 7/8” x 2 ½” Hex Head Bolt, (2) 7/8” Flat Washer, and
(1) 7/8” Lock Nut. Insert the top post into the top of the tire carrier and secure with the 7/8” hardware.
(Figure 4).
(Figure 2)
