Installation Instructions
Extended Top
(Part # 945xx JK 4-Door)
(Part # 941xx JK 2-Door)

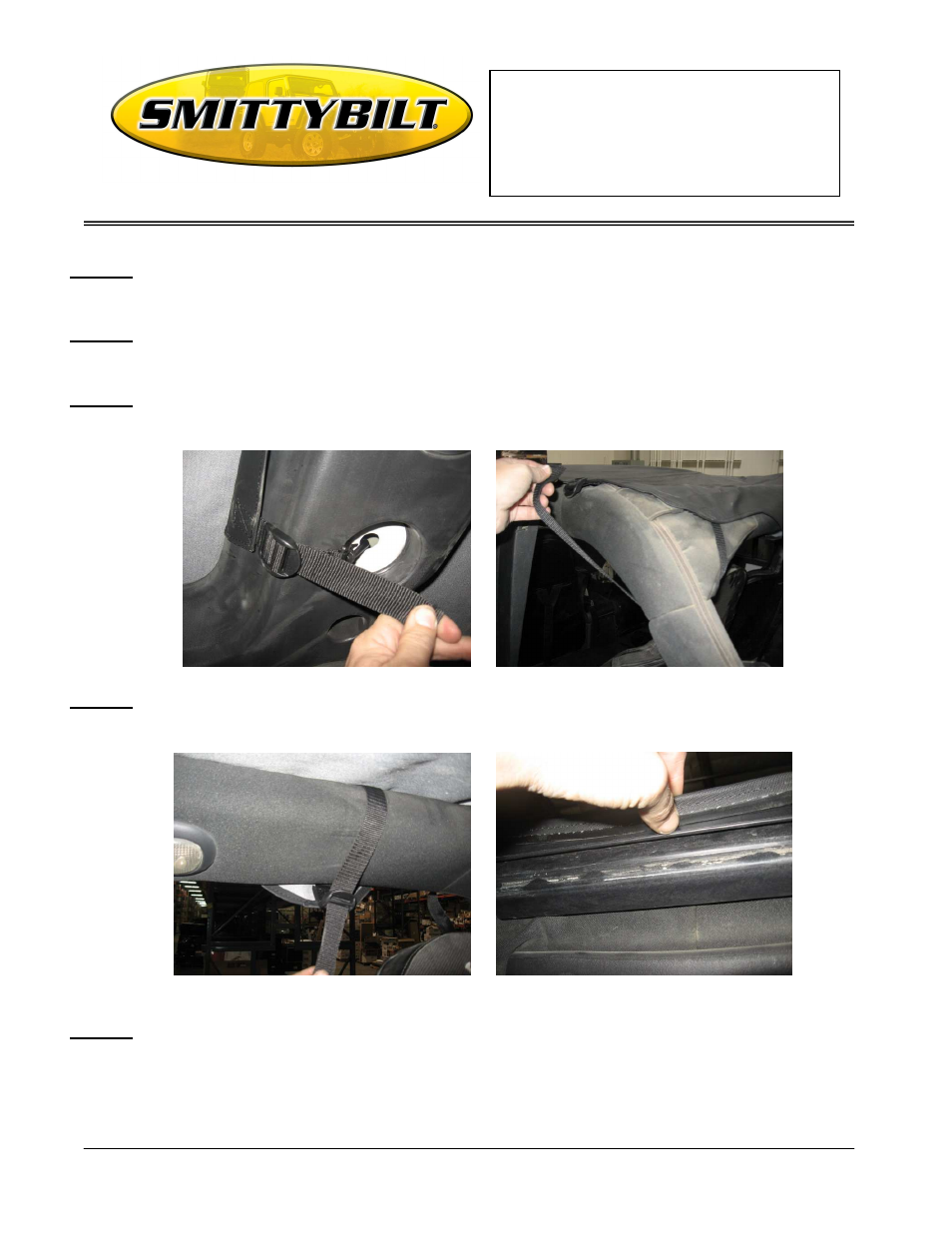

Step 4: Reattach the brackets to the header using the knobs previously removed and secure
the header. (Fig D)
Step 5: Pull the center flap back over the sound pods and insert plastic hook into the hole.
(Fig E) Pull on strap and secure.
Step 6: Locate the straps in the rear corners. Wrap the straps around the sport bar and secure.
(Fig F)
(Fig E) (Fig F)
Step 7: Wrap the rear flap around the rear horizontal cross bar and secure the two straps.
(Fig G)
(Fig G) (Fig H)
Step 8: If your vehicle is equipped with factory door surrounds proceed, if not go to
Step 10.Slide the plastic strip sewn into the top into the plastic channel on the door
surrounds.(Fig H) Tuck the Velcro straps up under the top. Repeat this on each door
section of the top.
