For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 1600 Walnut Parkway, Compton, CA 90220
Installation Instructions
Sure-Step (Part # JN49-S4x)
2007 Jeep Unlimited (4 Door)

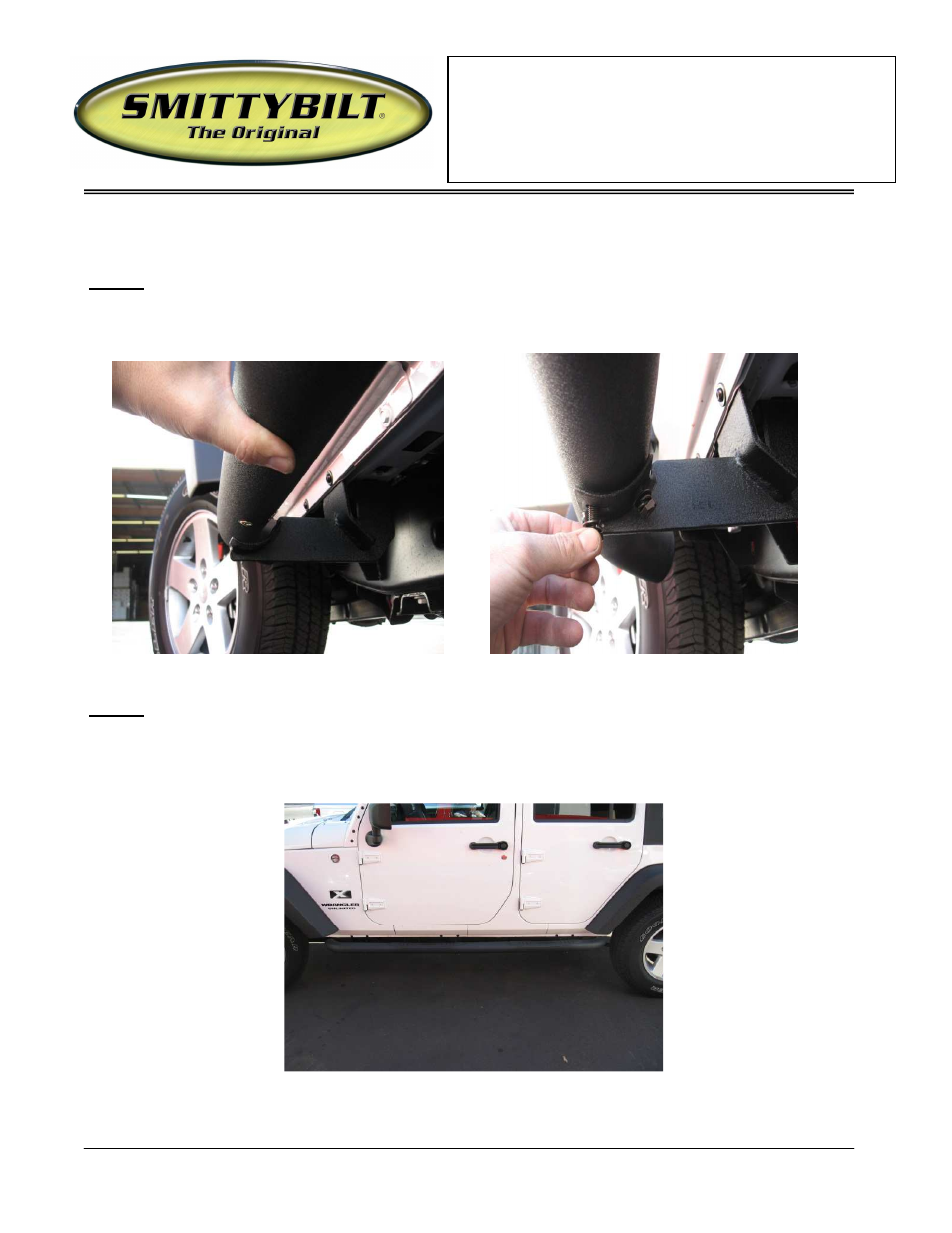

Step 7: Position the bar on the brackets. Line up the threaded inserts in the bar with the holes in the
brackets. Attach the bar to the brackets using the supplied 8 x 25mm hardware. (Fig J,K) Do not
tighten completely at this time.
(Fig J) (Fig K)
Step 8: Once all the bolts are in place in the bar you may go back and tighten all of the bracket hardware.
Be sure to tighten both the top and side bolts. Once all of the bracket hardware is tight make sure
the bar is level and then tighten the bolts holding the bar to the brackets. (Fig L)
(Fig L)
