For Technical Support/Warranty Information please call 310-762-9944

Smittybilt, 1600 Walnut Parkway, Compton, CA 90220

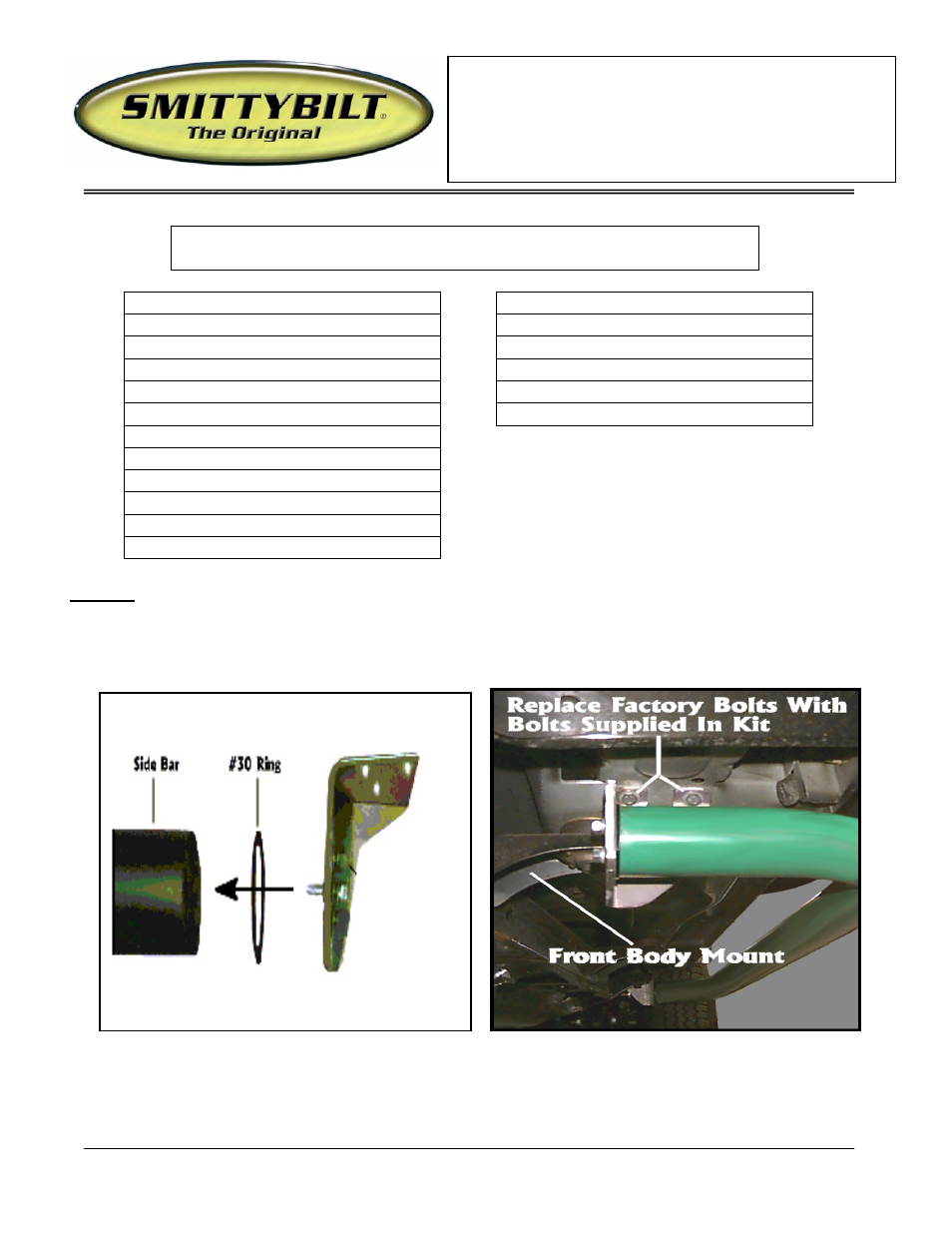

Installation Instructions

Side Bars (Part # JN460 & JN47)
1997- 2006 Wranglers & Unlimited

NOTE: Carefully read entire instructions thoroughly before

attempting to install this part. Drilling is required.

Parts Included Qty

Tools Needed

Sure Step (Passenger & Driver) 1ea

Drill

10mm x 1.50 Hex Head Bolt 6

Drill Bit Set

10mm Flat Washers 6

Ratchet

10mmm Lock Washers 6

Socket Set

8mm x 1.25mm x 35mm Bolt 4

Wrench Set

Front Bracket (Passenger & Driver) 1ea
Rear Bracket (Passenger & Driver) 1ea
Rear Bracket Backing Plate (P&D) 1ea
12mm x 1.75mm x 40 mm Bolt 4
12mm Flat Washer 4
12mm Lock Washer 4


STEP 1: Locate the Driver side bar, front support bracket, rear support bracket, tope plate and 2 plastic rings.
Secure the rear bracket to the bar using (1) 12mm bolt, flat and lock washer. (Fig 1)


.
(Figure 1) (Figure 2)
