Installation Instructions
XRC Rock Sliders (Part #76890)
07-10 Jeep Wrangler
(2-Door)
(Fig B) (Fig C)

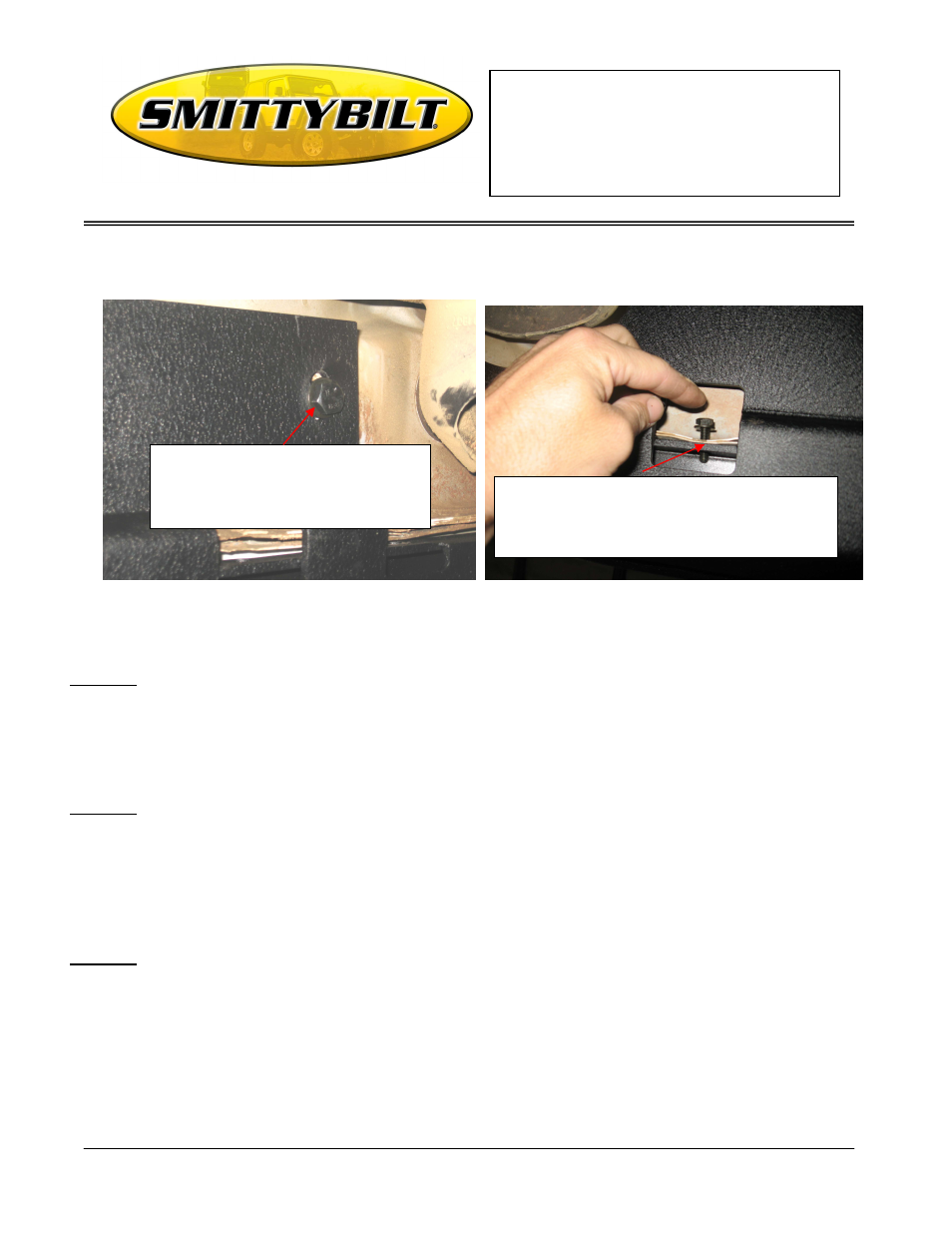

STEP 4: With some help hold the rock-slider up to the vehicle. Align the two slotted holes in the rock-
slider with the previously installed nut-clips. Loosely attach using the included 12 mm bolts
and flat washers. (Fig B)
STEP 5: Now loosely install (5 per side) of the 6mm bolts with flat washers and ny-lock nuts. (Fig C)
These mount through the holes in the pinch-weld of the body and the hole in the rock-slider.
One goes in the front, 2 in the middle and 2 in the rear. Note: On some vehicles you may need
to drill a hole in pinch weld area.
STEP 6: After you have installed all bolts loosely, hold slider parallel with the vehicle and proceed to
tighten all of the hardware. Installation is now complete. (Fig D) use these same steps for the
other side.
Align the two slotted holes in the rock-
slider with the previously installed nut-clips.
Loosely attach using the included 12 mm
bolts and flat washers.
Now loosely install (5 per side) of the 6mm bolts with flat
washers and ny-lock nuts. These mount through the holes in
the pinch-weld of the body and the hole in the rock-slider. One
goes in the front, 2 in the middle and 2 in the rear.
