WWW.SMITTYBILT.COM

For Technical Support/Warranty Information please call 310-762-9944

Smittybilt, 400 West Artesia Blvd, Compton, CA 90220

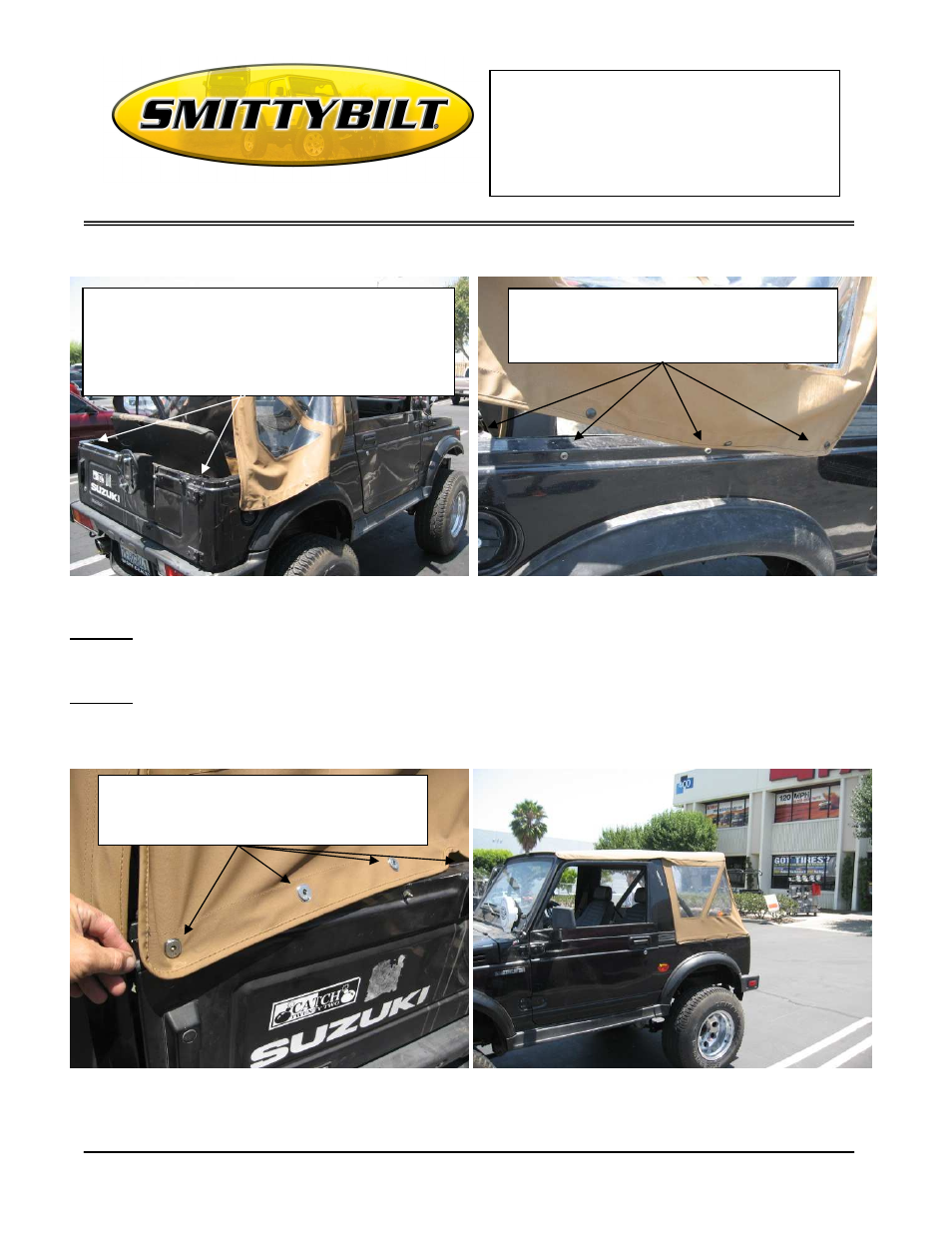

Installation Instructions

Replacement Top

86-94 Suzuki Samurai

(Fig E) (Fig F)


Step 8: Now fasten snaps along each side of the vehicle. (Fig F) You may need to pull, this top is
designed for a tight/snug fit.

Step 9: Fasten the rear snap-holes on the rear curtain over the studs on the rear of your vehicle.
(Fig G)

(Fig G)

(Fig H)

The tension straps mount on the inside lip of body
tub just to the outside of the tailgate. Install by
using the bracket as a template to mark hole, then
drill hole using a 7/32” drill bit. Secure bracket
with included screw and nut.

Fasten snaps along each side of the
vehicle. You may need to pull, this top
is designed for a tight/snug fit.

Fasten the rear snap-holes on the rear
curtain over the studs on the rear of
your vehicle.
