Installation Instructions
Replacement Top
86-94 Suzuki Samurai

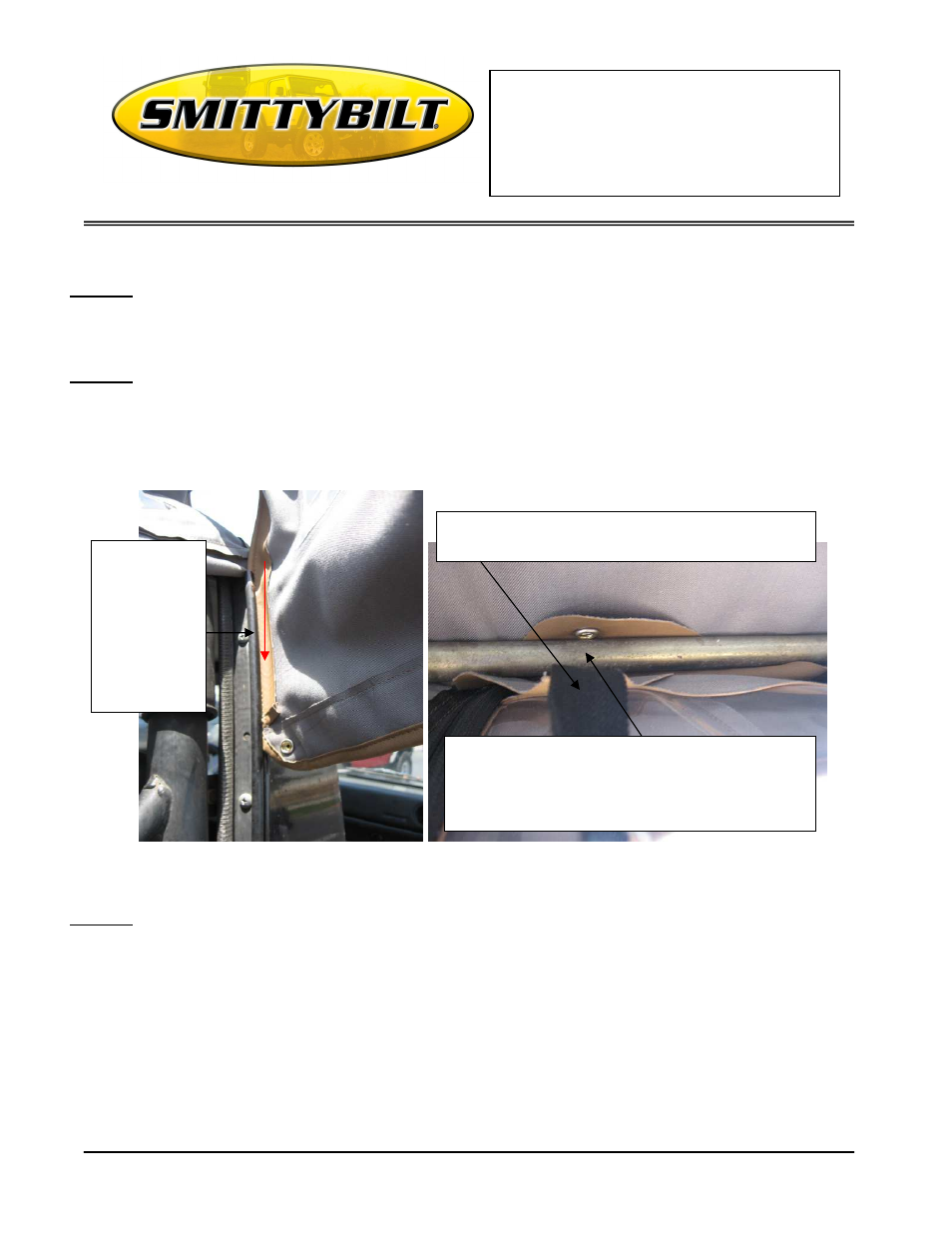

Step 5: Slide the front edges of the side windows down along the side channels on the
vehicle. (Fig C)
Step 6: With the top draped over the rear bow assembly, center it on the bow assembly. If your
bow does not have snaps already attached you will need to install the included snaps. Use
the snap flap as a guide to where the snaps should attach.(Fig D) Mark the location and
drill a hole into the bow using a 3/32 drill bit.(use caution when drilling) now install snap.
(Fig C) (Fig D)
Step 7: If the tension straps and brackets are not on your vehicle, install the two included
with top. They mount on the inside lip of body tub just to the outside of the tailgate.
(Fig E) Install by using the bracket as a template to mark the hole, then drill hole using
a 7/32” drill bit. Secure bracket with included screw and nut. Unfasten the Velcro at
the end of the newly installed tension strap and pull it up and slide it through the buckle
end of the tension straps on the top.(Fig D)Then pull tightly down and fasten Velcro back
together. (Do not pull excessively)
Slide the
front edges
of the side
windows
down along
the side
channels on
the vehicle
Fold the snap flaps ( 3 total) over the bow to
indicate location for the included snaps. Mark the
location and drill a hole into the bow using a 3/32
drill bit.(use caution when drilling)
now install snap
The tension straps sewn in each corner of the top
go under the bow assembly
