Installation Instructions:
(Part # SB76791)
SRC JK Tubular front Doors
Revised 7.28.10
Step 9: Carefully close the door and latch it to the door striker. Adjust the door striker if the
door won’t close properly.
Step 10: Carefully adjust the (2) front door hinges to level the door on the vehicle.
Step 11: Install the rubber bumper (90-4263) into the tube door frame.
NOTE: Using dish soap may aid in installation of the rubber bumper.
Step 12: Install the mirror bracket (93-5866) to the new tube door using the supplied 3/8” X
1” stainless bolts and hardware from pack (90-6738).
Step 13: Install the OE side view mirror onto the previously installed mirror bracket (93-
5866) using the 8mm-1.25 X 20mm bolt and hardware from pack (90-6744).
Step 14: Once the door is adjusted properly torque the hardware according to the chart on
page 3. Torque the Stainless hardware to grade 5 specifications only.
Step 15: Install the limit strap (769401) to the mount on the inside of the vehicle.
Step 16: Repeat the previous steps on the remaining side of the vehicle.
Step 17: Installation is now complete.

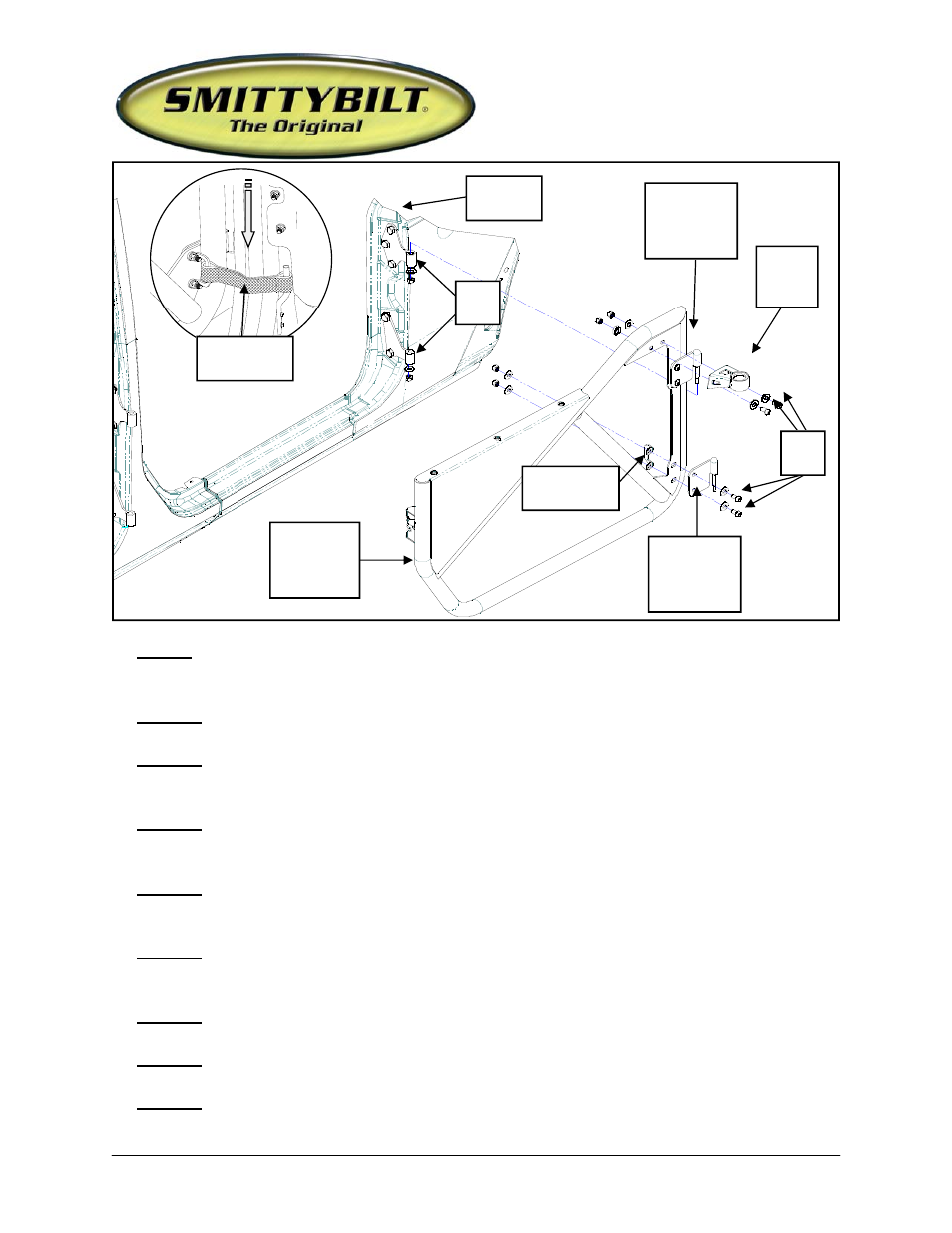

93-5866
Mirror
Bracket
Tube Door
93-8064 drvr
and
93-8068 pass
Door Hinge
93-5862 drvr
and 93-5864
pass
Door Hinge
93-5862 drvr
and 93-5864
pass
3/8”
Nuts
90-5868 Limit
Strap Bracket
769401 Limit
Strap
OE Hinge
Brackets
3/8”
Bolts
