Smittybilt 56660xx G.E.A.R. Overhead Console User Manual
Installation instructions, G.e.a.r. overhead console

WWW.SMITTYBILT.COM
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
G.E.A.R. Overhead Console
07-10 Wrangler/Unlimited
(Part # 56660xx)
Parts Included Qty
Parts Included Qty
Overhead Main Frame 1
10x25mm Hex Bolt 1
Front Adapter Bracket 1
10mm Flat Washer 2
Windshield Frame Nut-Plate 1
10mm Hex Nut 1
Sport Bar Clamp Rings 2
Allen Head Machine Screw 2
GEAR cover with pouches 2
#10 x ½” Machine Screw 2
Footman Loop 1
Cap Nut 2
NOTE: It will be necessary to have the soft top folded down or hardtop removed when installing this
product.

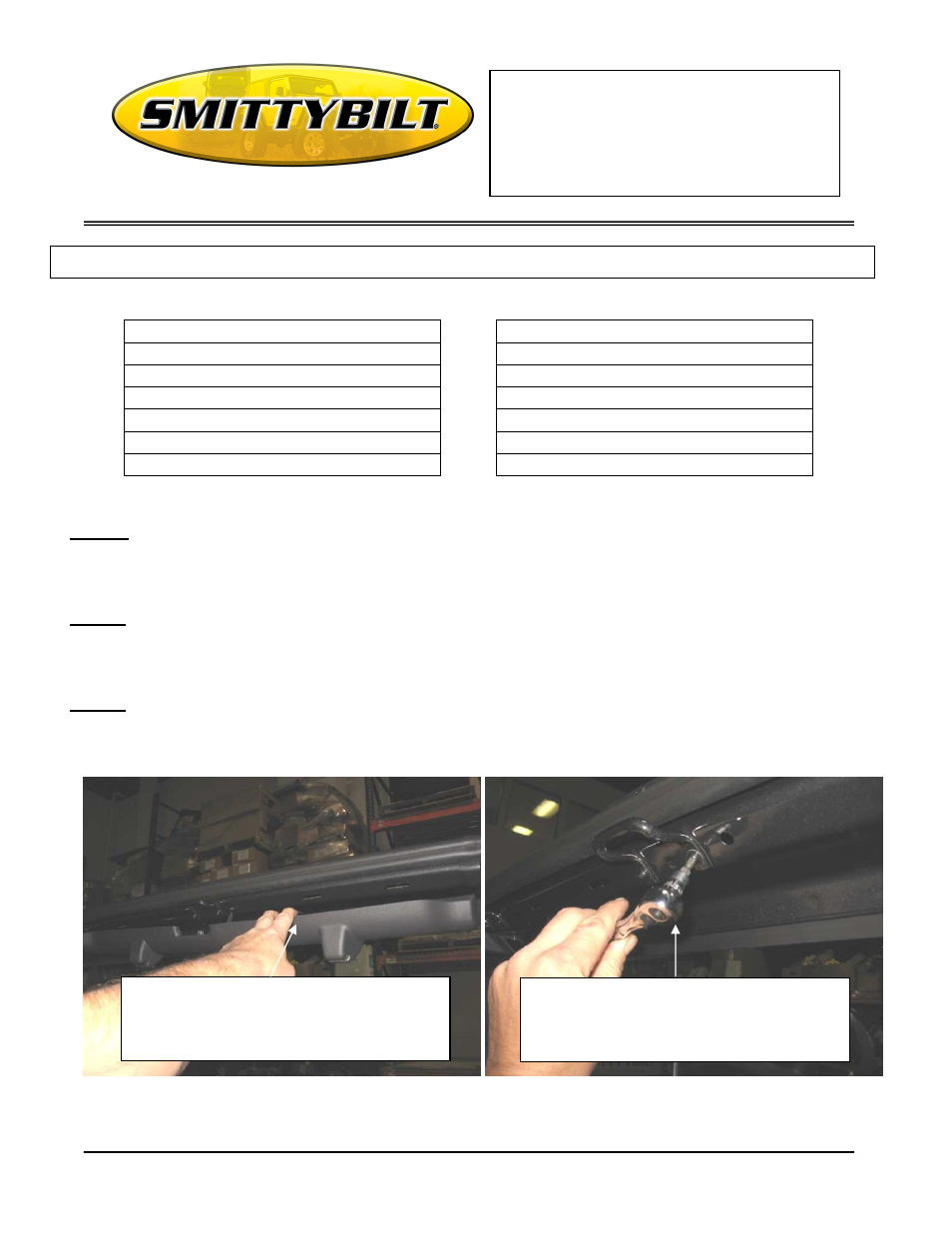

Step 1: Carefully remove top center windshield interior trim piece. (Fig A) Note: pull carefully or use some
type of panel puller. (Fig A)
Step 2: Remove center footman loop. On some models it can be un-bolted using a #25 torx on others
you will need to drill out the rivets using a drill and 1/8” drill bit. (Fig B) Note: Use caution when
drilling. Drill the hole out using a ¼” drill bit.
(Fig A)
(Fig B)
NOTE: Carefully read the entire instructions thoroughly before attempting to install this product.
Carefully remove top center windshield interior
trim. Note: pull carefully or use some type of
panel puller.
Remove center footman loop. On some models
it can be un-bolted using a #25 torx on others
you will need to drill out the rivets using a drill
and 1/8” drill bit. Use caution when drilling.
