Installation Instructions
G.E.A.R. Overhead
97-06 Wrangler (Part # 56650xx)
(Fig E) (Fig F)

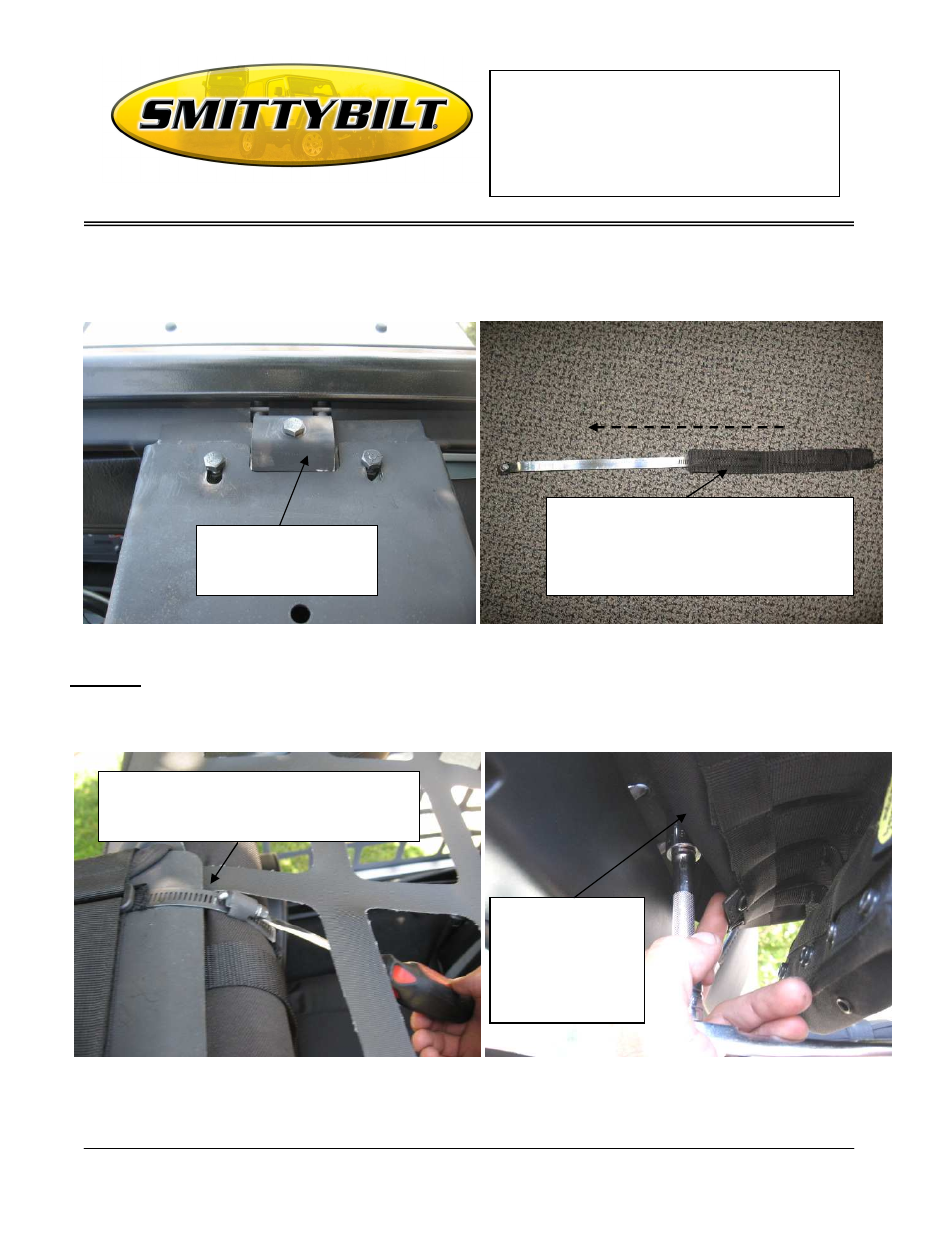

STEP 7: Slide the rear clamp straps around the center sport bar and through the slots in the
rear of the overhead frame. (Fig G)
(Fig G) (Fig H)
The adapter bracket
goes over the top of
the footman loop.
Slide the clamp sleeves over the rear
clamp straps. Depending on the
size/padding on your center sport bar the
sleeve can be trimmed if
necessary to fit
accordingly.
Slide the rear clamp straps around the
center sport bar and through the slots in
the rear of the overhead frame.
It may be easier to
tighten bolts by
unfastening the
front Velcro strap
and folding the
cover back.
