Smittybilt 56650xx G.E.A.R. Overhead User Manual
Installation instructions g.e.a.r. overhead

WWW.SMITTYBILT.COM
For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Installation Instructions
G.E.A.R. Overhead
97-06 Wrangler (Part # 56650xx)
Parts Included Qty
Parts Included Qty
Overhead Main Frame 1
Footman Loop 2
97-01 Front Bracket 1
#10 x ½”Machine Screw 2
02-06 Front Bracket 1
Cap Nut 2
02-06 Front Adapter Bracket 1
3/8” x 1” Hex Bolt 2
Sport Bar Clamp 2
3/8” x 1 ¼” Hex Bolt 1
Clamp Sleeve 2
3/8” Hex Nut 3
Gear Cover w/pouches 1
3/8” Flat Washer 6
NOTE: It is recommended to have the soft top folded down or hardtop removed when
installing this product

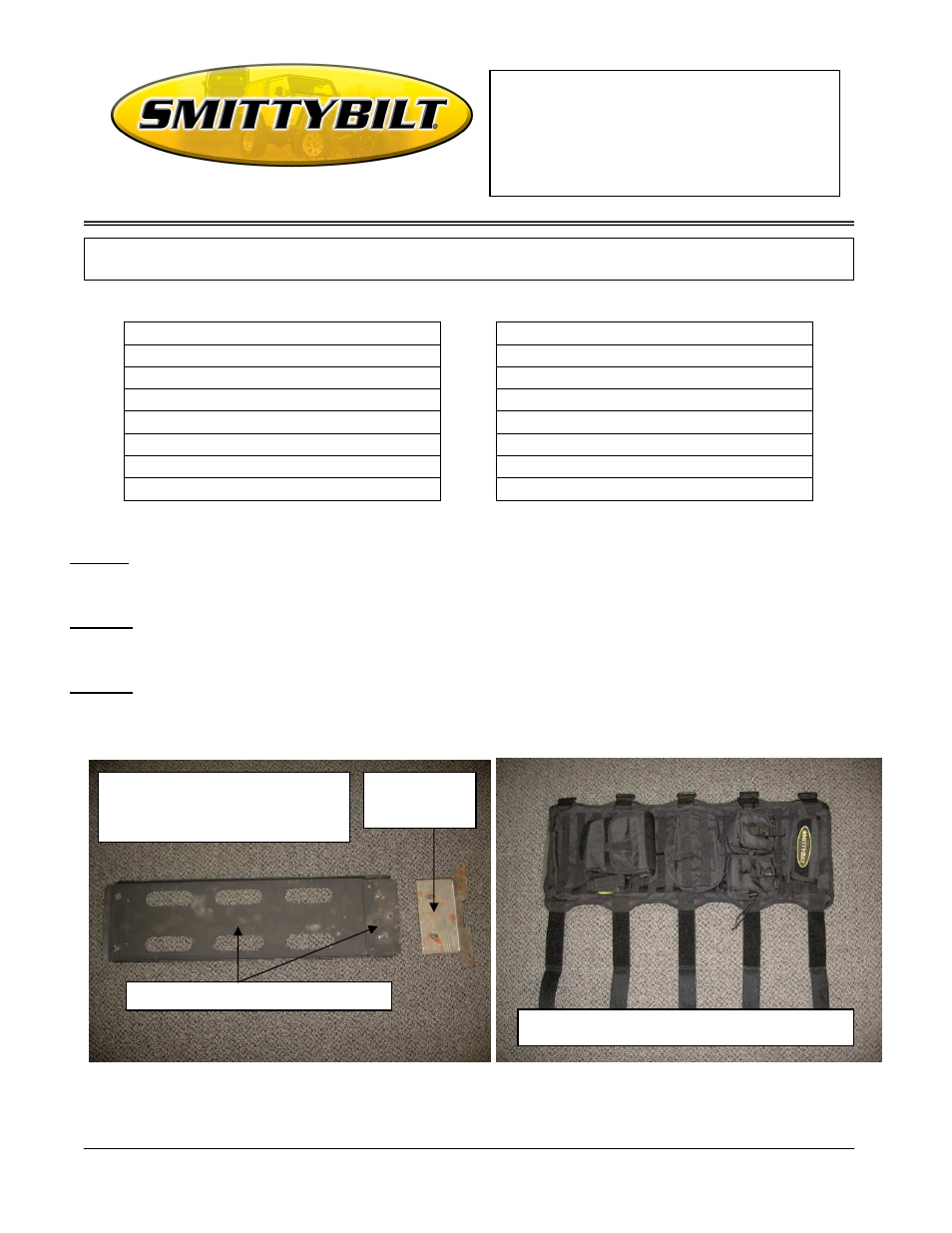

Step 1: Lay the over head main frame on a flat surface. (Fig A)
Step 2: Determine which front mounting bracket you will need and mount bracket loosely to frame
using the included 3/8” x 1” hardware. (Fig A) (The flat bracket is for late TJ’s and the
bracket with side extensions is for early TJ’s.)
.
(Fig A)
(Fig B)
NOTE: Carefully read entire instructions thoroughly before attempting to install this part.
Main frame with late TJ front bracket
Early TJ front
bracket
The lip on the frame will be
pointing down when installed. The
flat part of the frame is the top.
NOTE: pouches may very slightly than pictured.
