Smittybilt TN1120-S2X SIDEBAR - Manual

Page 1 of 3 8/1/07 (AM)
PARTS LIST:
1 Driver/Left Sidebar 2 ½” x 2” Flat Head Bolts (front mount)
1 Passenger/Right Sidebar 2 ½” x 2” Hex Head Bolts (rear mount)
2 Rear Mounting Brackets 2 12-1.75mm x 40mm Hex Head Bolts
2 Front Mounting Brackets 4 ½” ID x 1 3/8” OD x 3/32” Flat Washers
1 Rear Offset Brackets 4 12mm ID x 29mm OD x 3mm Flat Washers
2 Straight Brackets 2 ½” Lock Washers
2 Top Rear Clamp 4 12mm Lock Washers
2 Bottom Rear Clamp 4 12mm Hex Nuts
2 Plastic Retainers 4 10-1.50mm x 45mm Hex Head Bolts
2 12-1.75mm Bolt Plates 4 10mm Lock Washers
4 10mm ID x 26mm OD x 3mm Flat Washers
INSTALLATION INSTRUCTIONS
SIDEBAR
95-04 TOYOTA TACOMA REG/EXT CAB 4WD or PRERUNNER
(excl 2WD)
PART NUMBER: TN1120-S2X

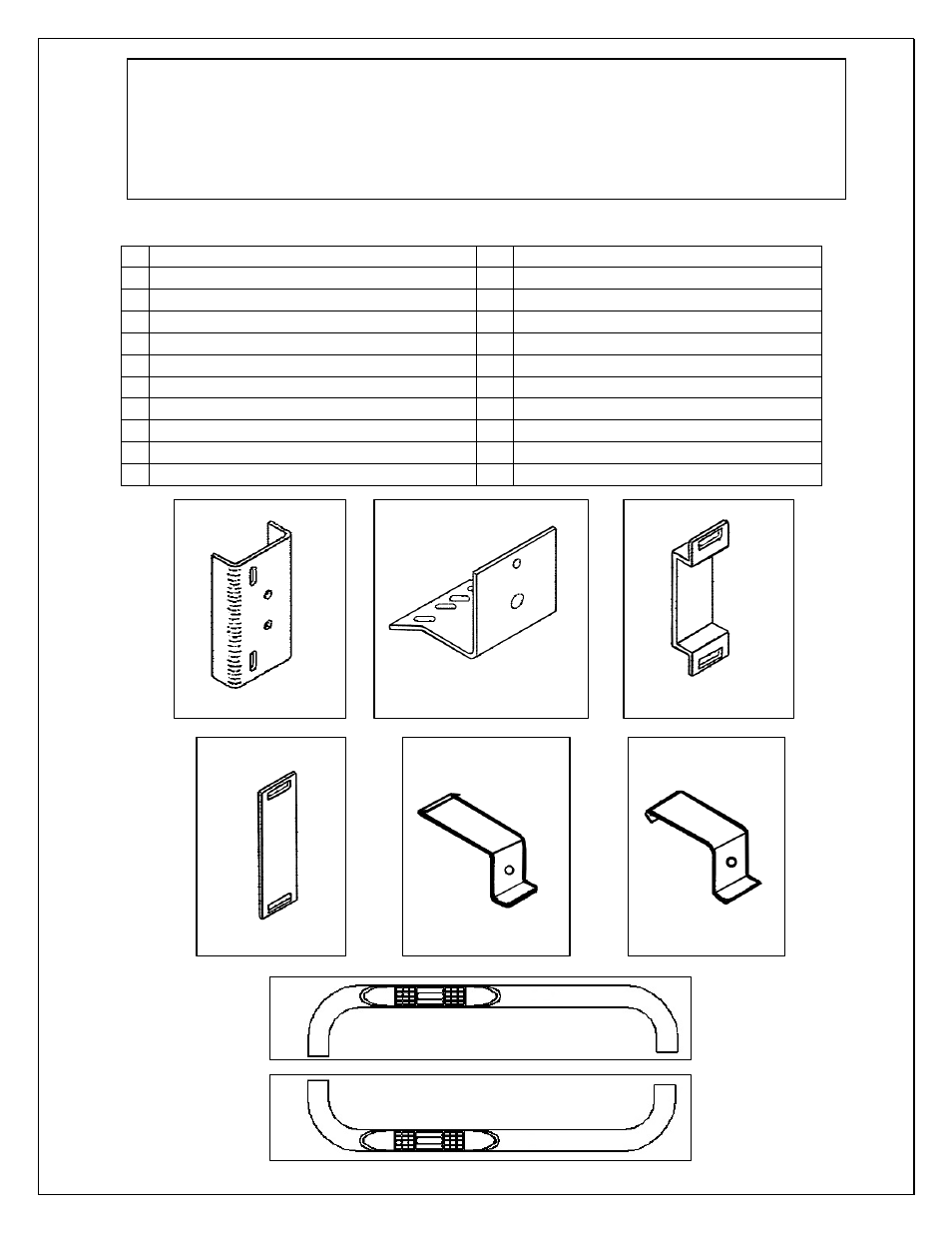

Rear Mounting Bracket Front Mounting Bracket
95-98 Models
Rear Offset Bracket
99-03 Models
Rear Straight Bracket Top Rear Clamp Bottom Rear Clamp
Passenger Sidebar
Driver Sidebar
