Smittybilt FN1990-S4 Sure Steps - Manual (Page 5)

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Page 5 of 6

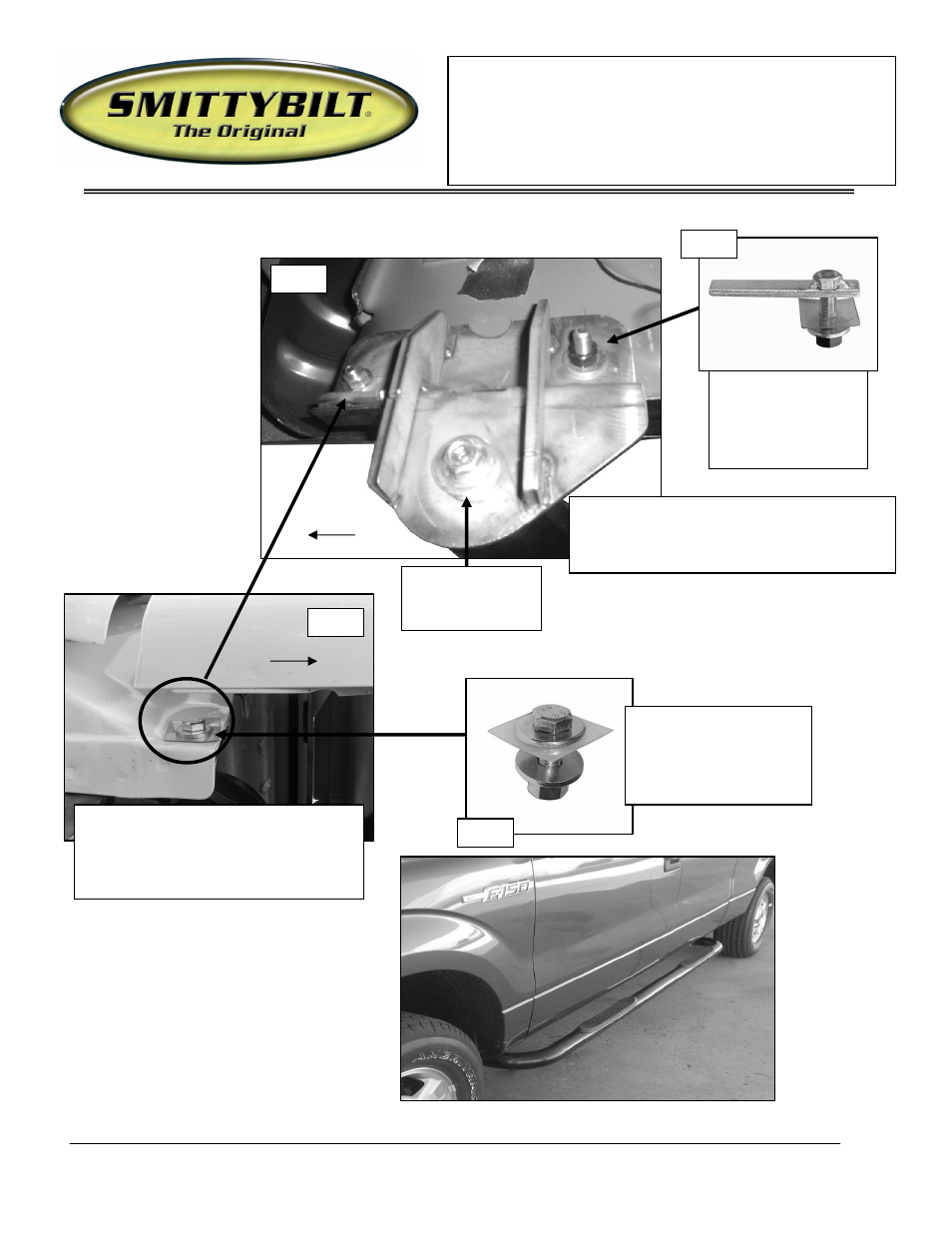

Installation Instructions
Sure Step
(Part #FN1990-S4B/FN1990-S4S)
09 Ford F-150 Super Crew
Driver Side Installation Pictured
1/2” x 2” Hex Bolts
1/2” Lock Washers
1/2” Flat Washers
12mm Bolt Plate with
Plastic Retainer
12mm Flat Washer
12mm Lock Washer
12mm Hex Nut
10mm x 35mm Hex Bolt
with Plastic Retainer
(2) 10mm Flat Washers
10mm Lock Washer
10mm Hex Nut
Rear bolt on Rear Mounting Bracket
pictured from outside the vehicle. Place
the Plastic Washer between the 10mm
Flat Washer and the painted surface of
the truck body
Fig 7A
Thread the Plastic Retainer onto the Bolt Plate
then insert the Bolt Plate into the large hole in
the body. Continue to thread the Retainer
down until it is snug against the body
Fig 6A
Fig 7B
Complete Installation
Fig 6B
Rear
Rear
