Smittybilt FN1700-S4 Sure Steps User Manual
Installation instructions

For Technical Support/Warranty Information please call 310-762-9944
Smittybilt, 400 West Artesia Blvd, Compton, CA 90220
Page 1 of 3
Installation Instructions
Sure-Step (Part # FN1700-S4)
99-08 Ford Super Duty Crew Cab
Front Driver Shown
PARTS LIST:
1 Passenger Side Bar
8 10mm Clip Nuts
1 Driver Side Bar
16 10-1.50mm x 40mm Hex Head Bolts
4 Mounting Brackets
24 10mm Flat Washers
4 1/2”-13*2” Hex Head Bolts
16 10mm Lock Washers
4 1/2” Lock Washers
8 10mm Hex Nuts
4 1/2” Flat Washers
PROCEDURE:
1.
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY.
2.
Locate the driver side front and rear mounting points under the vehicle on the pinch weld.
3.
Install the 10mm Clip Nuts (Figure 1). NOTE: The rear mount will required (2) Clip Nuts and the
front only (1).
4.
Loosely attach the Driver Side Brackets to pinch weld using the included (2) 10-1.50mm x 40mm Hex
Head Bolts, (4) 10mm Flat Washers, and (2) 10mm Lock Washers (2 & 3)). NOTE: Pinch weld and
side panel holes on the bracket must be Horizontal when installing.
5.
Loosely attach the upper side of the Mounting Brackets to already installed Clip Nuts by using (2) 10-
1.50mm x 40mm Hex Head Bolts, (2) 10mm Flat Washers, and 10mm Lock Washers on each
Mounting Bracket (Figure 2 & 3)..
6.
Place Side Bar into position and loosely attach it to Mounting Brackets using the included (2) 1/2”Hex
Head Bolts, (2) 1/2” Flat Washers, and (2) 1/2” Lock Washers (Figure 4 & 5). NOTE: Side Bar
mounting hole on the brackets must be vertical.
7.
Level and align Side Bar with the side of the vehicle then tighten all hardware at this time.
8.
Repeat steps 2 to 7 for passenger side.
9.
Periodically check and retighten the hardware as necessary.

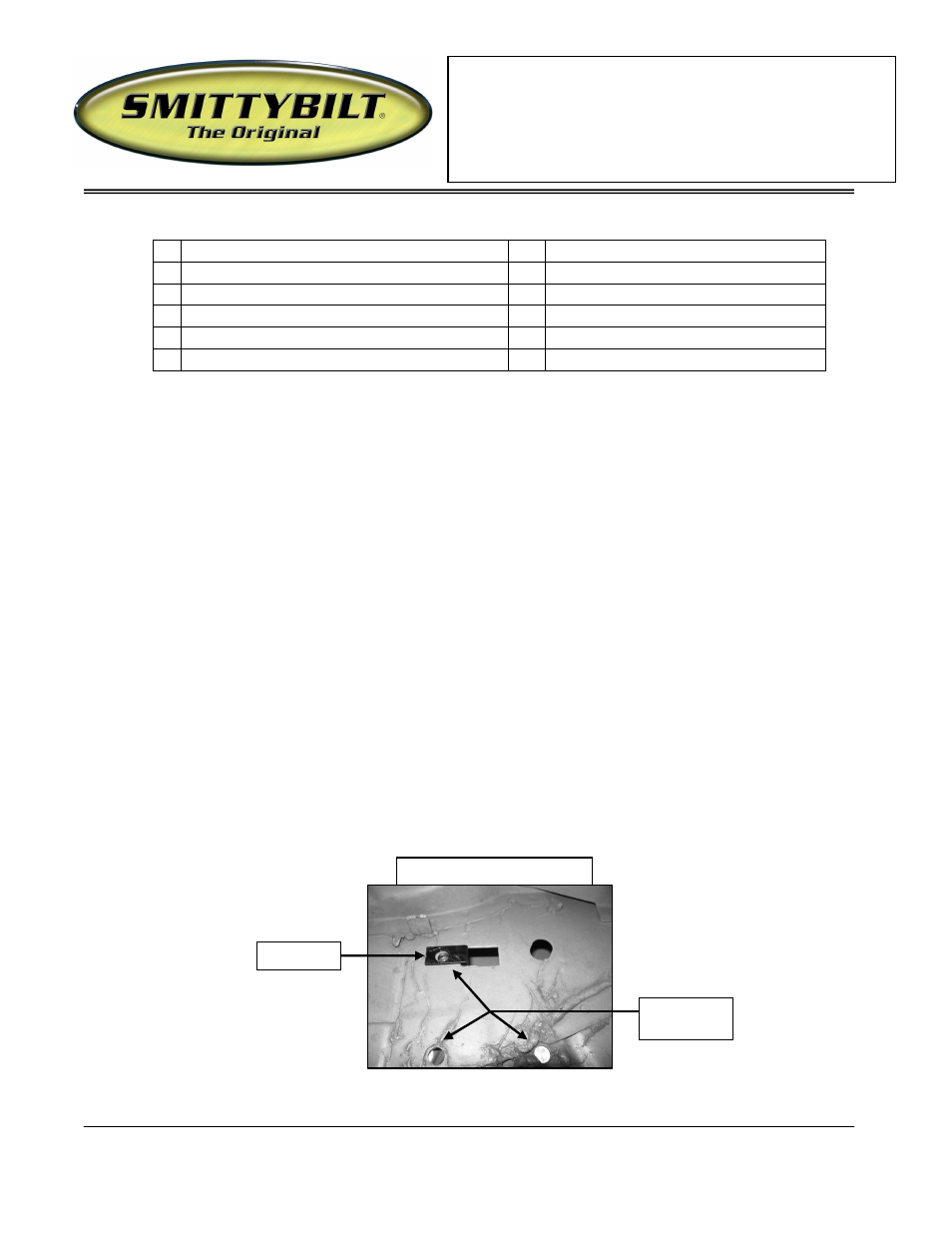

Factory
Holes
Clip Nut
Figure 1
