PREPARATION

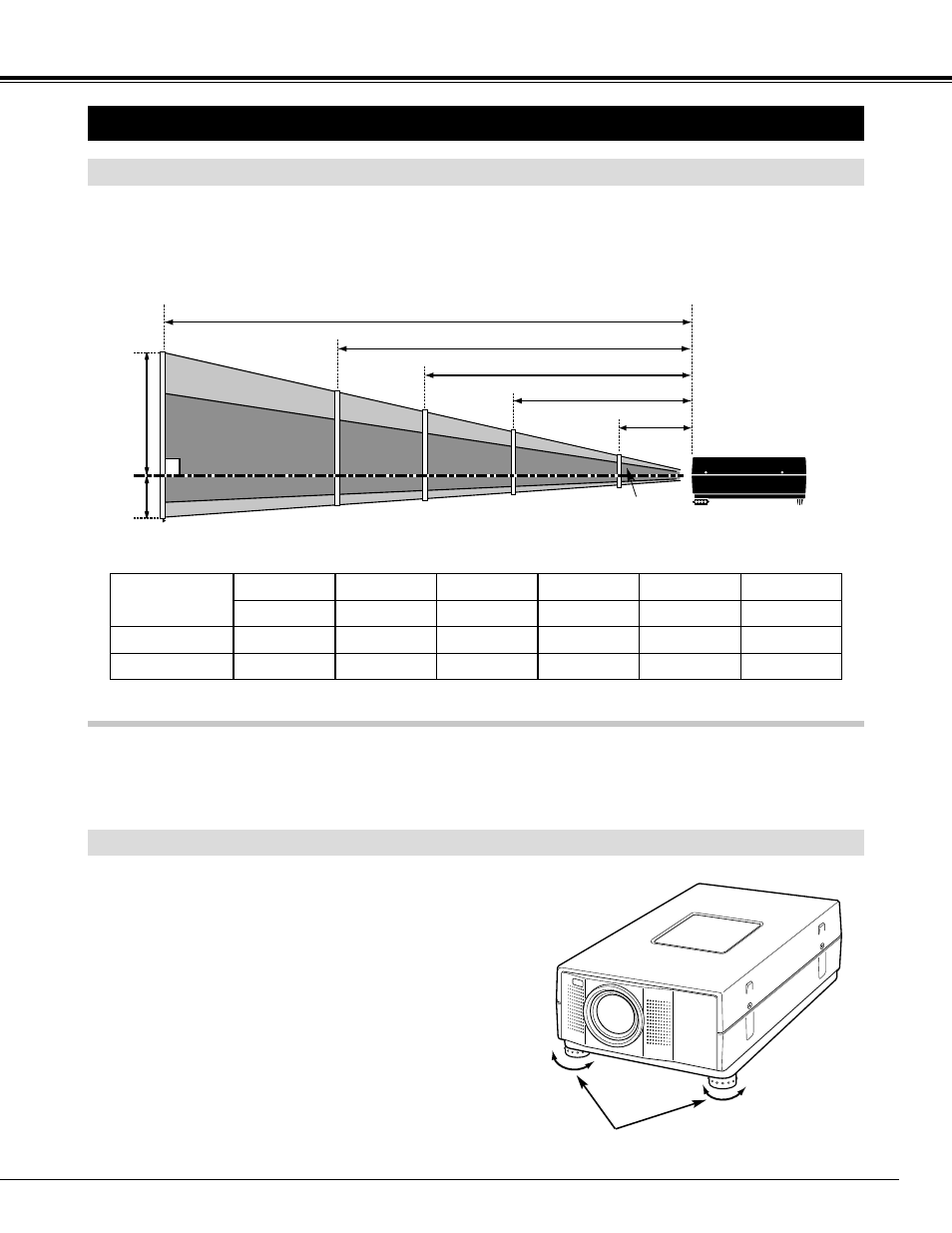

SETTING-UP THE PROJECTOR
POSITIONING THE PROJECTOR
ROOM LIGHT
The brightness in the room has a great influence on the picture quality. It is recommended to limit ambient
lighting in order to provide the best image.
ADJUSTABLE FEET
Picture tilt and projection angle can be adjusted by
twisting ADJUSTABLE FEET. Projection angle can be
adjusted 0 to 2 degrees by rotating Adjustable Feet.
UP
UP
DOWN
DOWN
ADJUSTABLE FEET
● This projector is designed to project on a flat projection surface.
● The projector can be focused from 4.6'(1.4m) ~ 35.4'(10.8m).
● Refer to the figure below to adjust the screen size.
H1
H2
300"
230"
200"
154"
150"
115"
100"
77"
40"
35.4' (10.8m)
24.0' (7.3m)
18.0' (5.5m)
11.8' (3.6m)
4.6' (1.4m)
Screen Size
(W x H) mm
Height (H1)
30”
Height (H2)
609 x 457
17.1”(435mm)
0.9”(22mm)
60”
1219 x 914
34.3”(870mm)
1.7”(44mm)
100”
2032 x 1524
57.1”(1451mm)
2.9”(73mm)
150”
3048 x 2286
85.7”(2177mm)
4.3”(109mm)
200”
4064 x 3048
114.3”(2903mm)
5.7”(145mm)
300”
6096 x 4572
171.4”(4354mm)
8.6”(218mm)
30"
