Page 31: Adjusting the picture image, Normal function
31

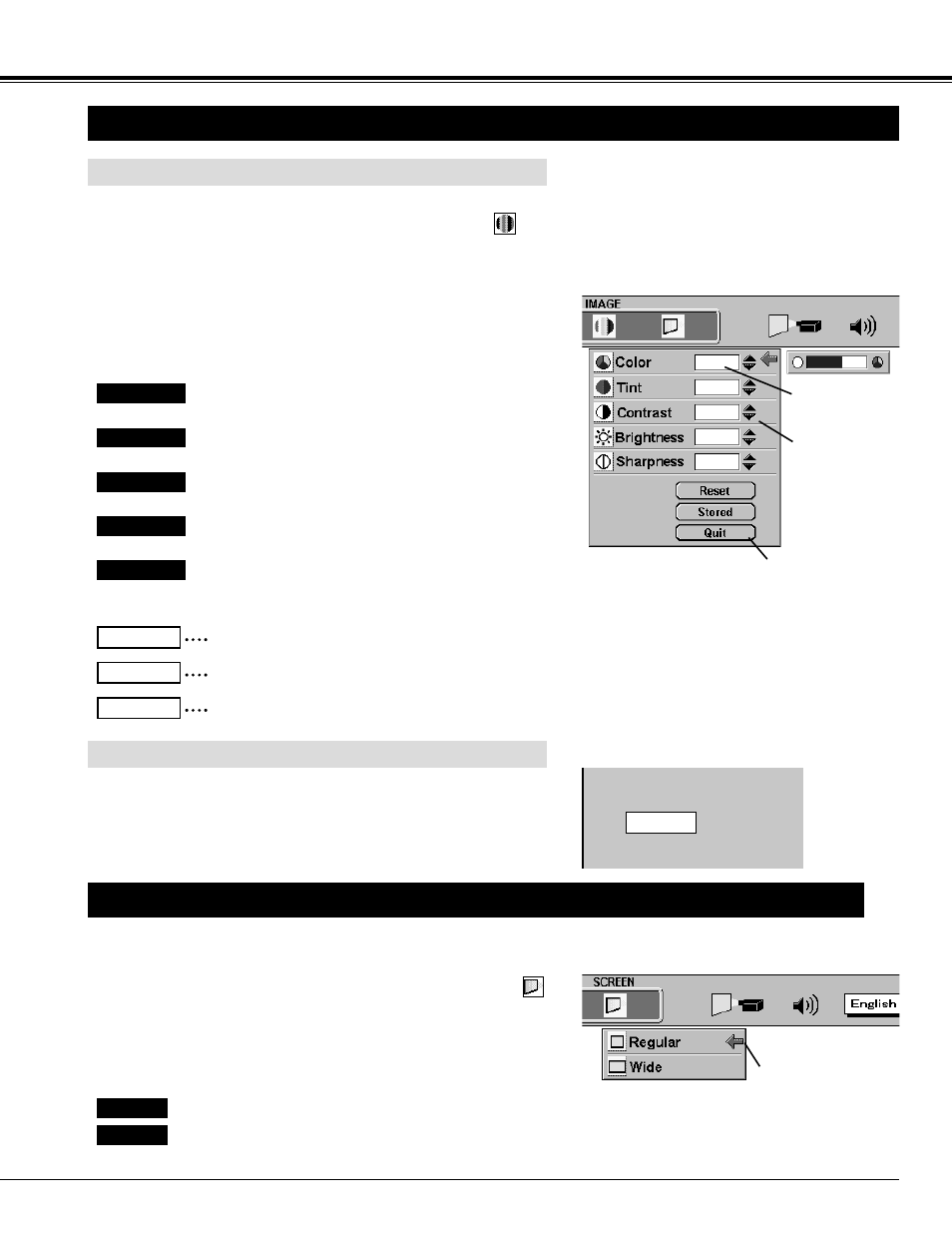

VIDEO MODE
PICTURE IMAGE ADJUSTMENT
Press the MENU button and the ON-SCREEN MENU will appear.
Press the POINT LEFT/RIGHT buttons to select IMAGE
and
press the SELECT button. Another dialog box PICTURE IMAGE
ADJUSTMENT Menu will appear.
Press the POINT DOWN button and a red-arrow icon will appear.
Move the arrow to
▲
or
▼
of the item that you want to change by
pressing the POINT UP/DOWN buttons. To increase the value,
point the arrow to
▲
and then press the SELECT button. To
decrease the value point the arrow to
▼
and then press the
SELECT button.
1
2
Adjusting the Picture Image
The normal picture level is preset on this projector by the factory and
can be restored anytime by pressing the NORMAL button (located on
the Top Control or on the Remote Control). The "Normal" display will
be displayed on the screen for a few seconds.
Normal Function
Normal
Closes the PICTURE
IMAGE ADJUSTMENT
Menu.
Move the arrow to
▲
or
▼
and press
the SELECT
button.
Indicates the
roughly level of
the item.
Color
Point to
▲
to deepen the image, and point to
▼
to
lighten the image. (From 0 to 63.)
Tint
Point to
▲
to increase green, and point to
▼
to increase
purple. (From 0 to 63.)
Contrast
Point to
▲
to increase contrast, and point to
▼
to
decrease contrast. (From 0 to 63.)
Brightness
Point to
▲
to brighten the image, and point to
▼
to
darken the image. (From 0 to 63.)
Recalls the data previously adjusted.
Reset
Stores the data in the memory.
Stored
Closes the PICTURE IMAGE ADJUSTMENT Menu.
Quit
Sharpness
Point to
▲
to sharpen the image, and point to
▼
to
soften the image. (From 0 to 63.)
PICTURE SCREEN ADJUSTMENT
This projector has a picture screen resize function, which enables you to display the desirable image size.
Press the MENU button and the ON-SCREEN MENU will appear.
Press the POINT LEFT/RIGHT buttons to select SCREEN
and press the SELECT button. Another dialog box PICTURE
SCREEN ADJUSTMENT DISPLAY will appear.
Press the POINT DOWN button and a red-arrow icon will appear.
Move the arrow to the screen size that you want to set, and then
press the SELECT button.
1
2
Regular
Normal Video Image size with 4 x 3 aspect ratio.
Wide
It compresses the image vertically to Wider Video Image
size with 16 x 9 aspect ratio.
Move the pointer to the
item that you want to
set, and then press the
SELECT button.
Each of the keys operates as follow.
