CONNECTING THE PROJECTOR
ON
1 2 3 4 5 6
DIP
CONNECTION TO THE MACINTOSH COMPUTER

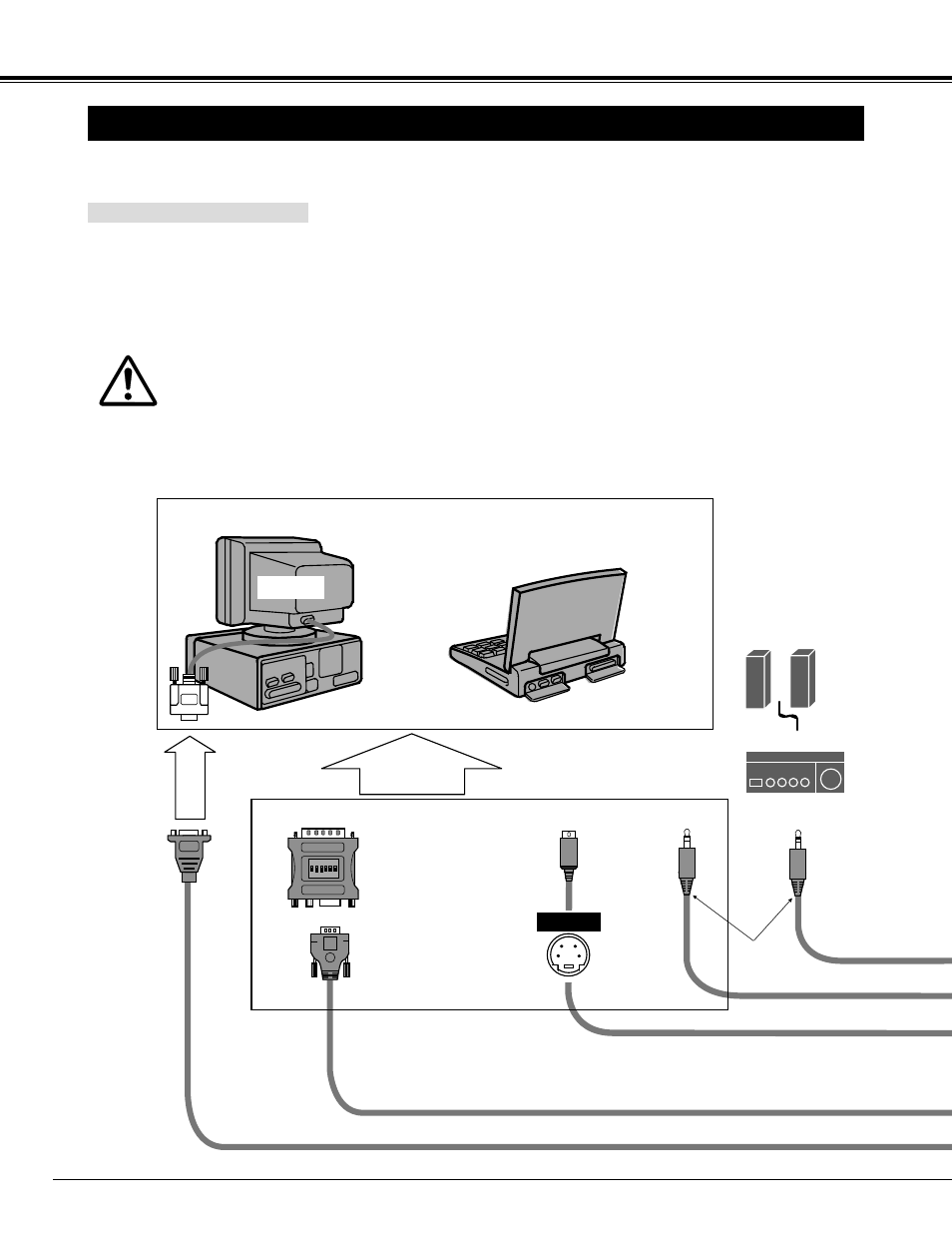

To connect to the Macintosh computer, refer to the figure below.
MACINTOSH COMPUTERS (VGA / SVGA / XGA / SXGA)
VGA Cable
Monitor Output
Desktop type Laptop type
Monitor
Audio Speaker
(stereo)
Audio Amplifier
Control Cable for ADB Port ✽
Audio Cable ✽
(stereo)
Monitor Cable ✽
ADB port Audio Output Audio Input
To each terminal of your computer To the Monitor
Terminal
MAC Adapter ✽
Set the switches depending
on the RESOLUTION MODE
that you want to use before
your turn on the projector
and computer
NOTE :
When connecting the cable, the power cords of both the projector and the external equipment should be
disconnected from AC outlet. Turn the projector and peripheral equipment on before the computer is switched
on.
• VGA CABLE
• CONTROL CABLE FOR ADB PORT
✽
• MAC ADAPTER ✽
• MONITOR CABLE ✽
• PC AUDIO CABLE (stereo) ✽
✽ These cables are not supplied with this projector.
Used cables for connection
