BOXLIGHT CP-14t - Manual (Page 15)

B
A
COMPUTER IN MONITOR OUT
CONTROL PORT
AUDIO IN
SERIAL
AUDIO OUT
VIDEO R-AUDIO-L
S-VIDEO
(MONO)
ON
1
DIP
ON
OFF
2 3 4 5 6
13" MODE (640 x 480)
16" MODE (832 x 624)
19" MODE (1024 x 768)
OFF ON ON
ON ON
ON ON
OFF OFF OFF
OFF OFF OFF OFF
OFF OFF OFF OFF
1 2 3 4 5 6
OFF OFF ON ON ON ON 21" MODE (1152 x 870)
15

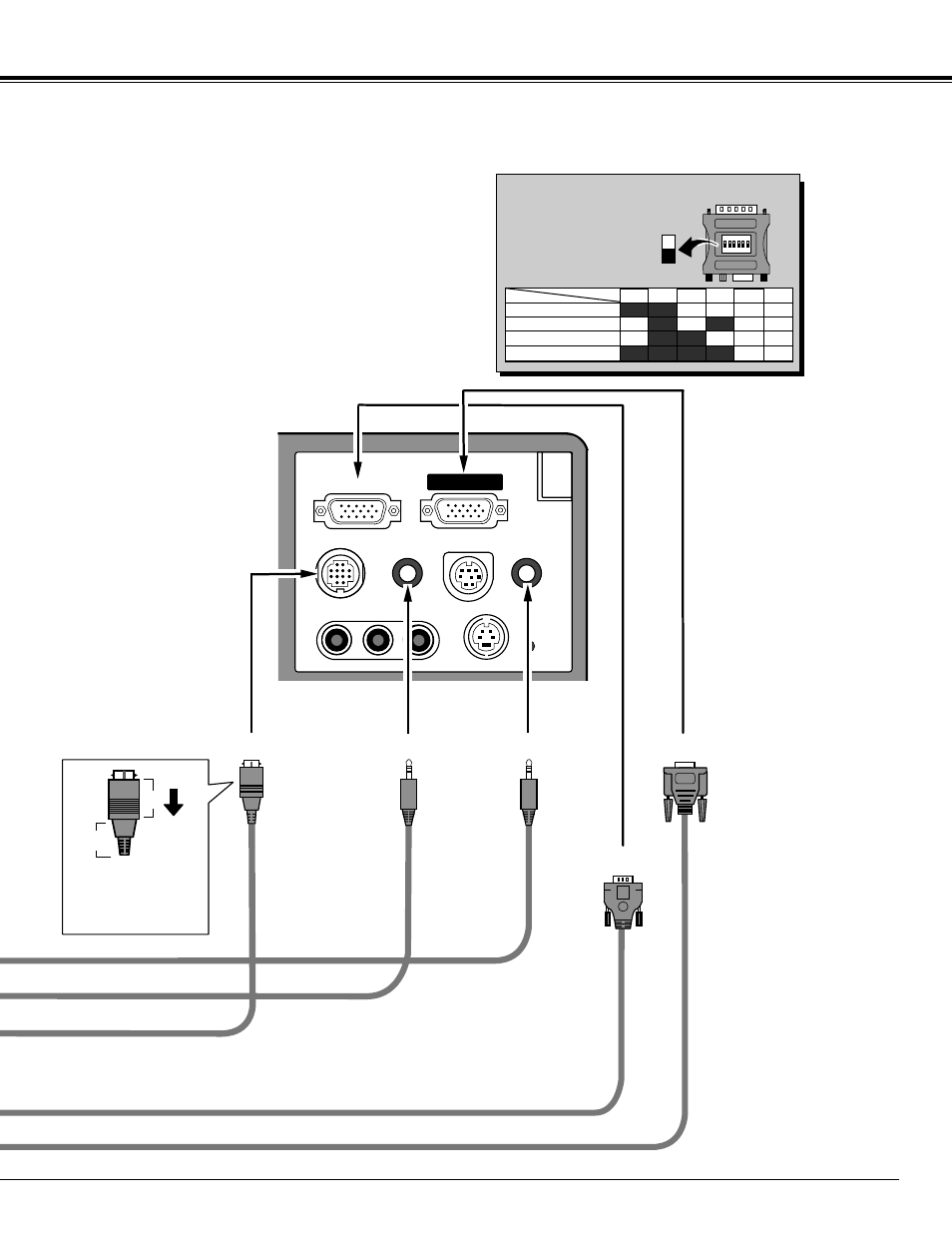

CONNECTING THE PROJECTOR
CONTROL PORT AUDIO OUT AUDIO IN
MONITOR OUT
COMPUTER IN
To disconnect MOUSE CABLE,
1. Hold the portion (B) of the
connector with one hand.
2. Pull the portion (A) to the
arrow direction and remove
connector.
◆ MAC/VGA ADAPTER (not supplied)
Set the switches as shown
in the table below depend-
ing on the RESOLUTION
MODE that you want to
use before your turn on the
projector and computer.
