12) Once cut outs have been made, clean up edges with some form of sanding disc,
sand paper or a good metal file.
13) Proceed to step 18 for final panel and hood installation.
14) The following covers moderate cutting where additional cooling is required and
full structural hood integrity is retained.
15) With the cuts already made in steps 10-13, we will now make a few more cuts,
only in the outer skin of the hood in order to retain the hood’s full structural
integrity.
16) Begin by taking the 1-3/4” hole saw with ¼” pilot hole and drill holes in the hood
as shown below.

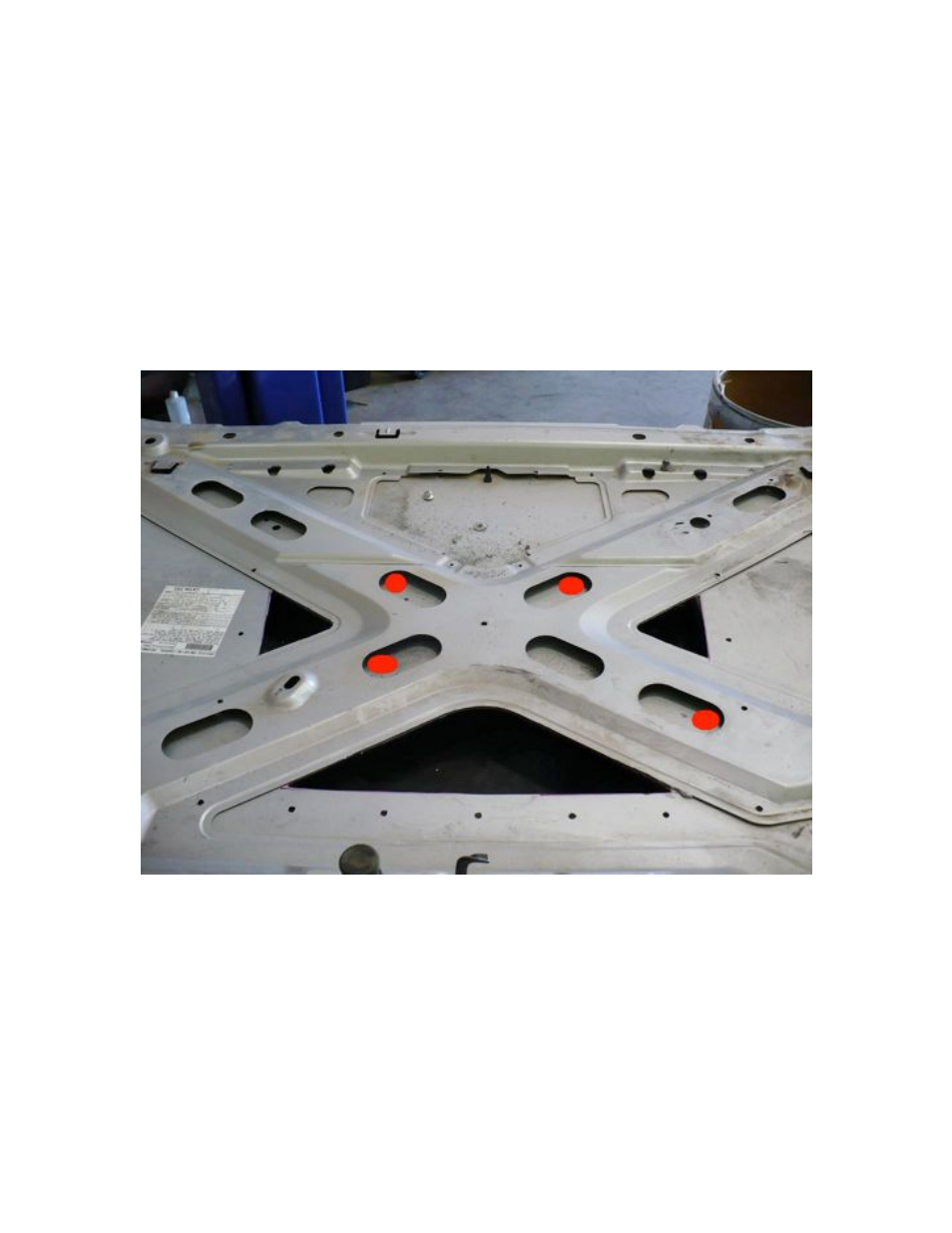

Drill holes where Red circles are shown.
17) Once holes are drilled, flip the hood over and connect the dots.
Take note of the width of the under hood structure, as cutouts can
be opened up to this width for even greater airflow.
18) Again, once satisfied with the number and location of the cutouts, clean up all
edges with a sanding disc, sandpaper or good metal file.
