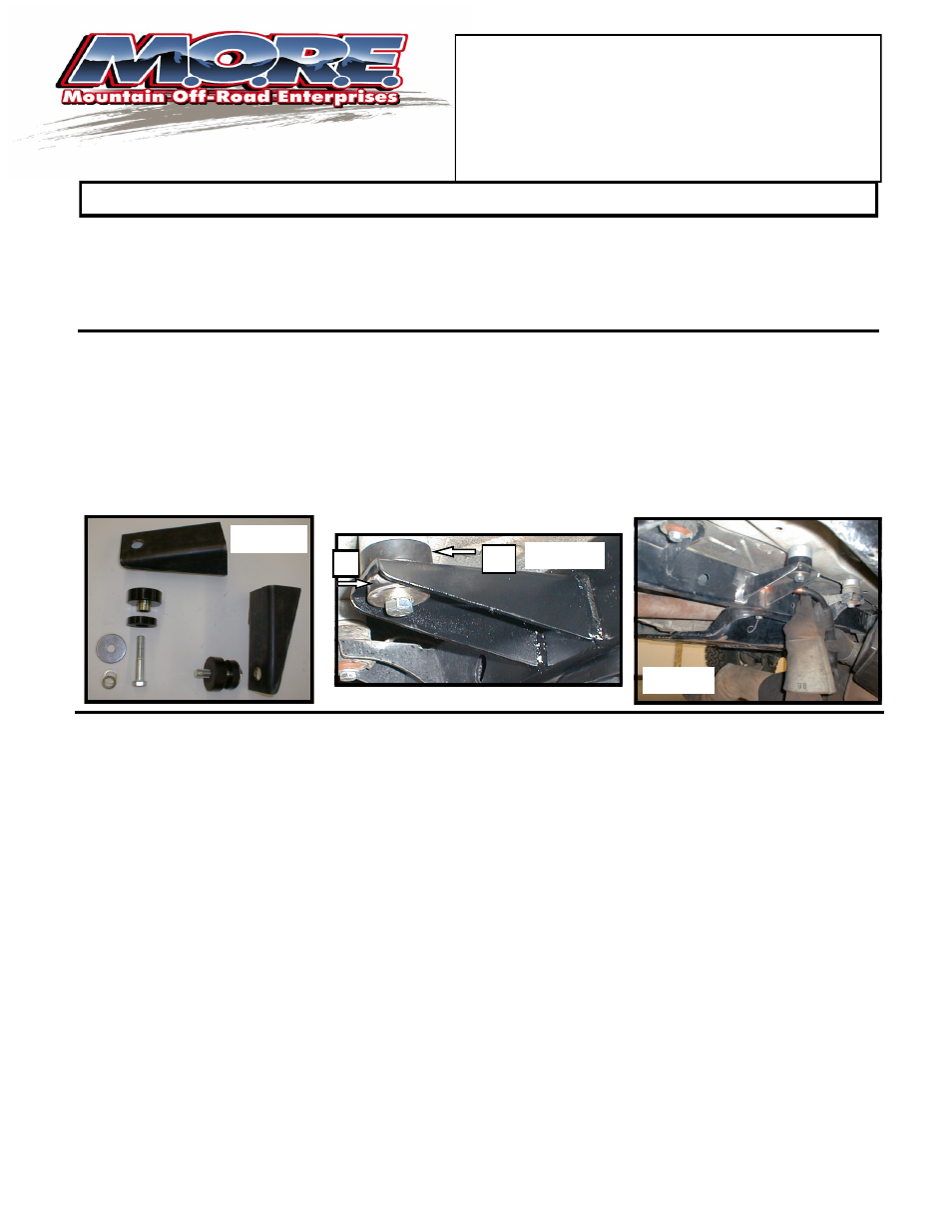

INSTALLATION INSTRUCTIONS FOR FTK200

FTK200 “Frame Tie-In Kit” fits: 1997-2006 JEEP® TJ WRANGLER. THE FRAME TIE-IN KIT CONSISTS OF
TWO FRAME OUTRIGGERS, URETHANE BUSHINGS, FENDER WASHERS, LOCK WASHERS AND BOLTS
(Figure 1). THE OUTRIGGERS SUPPORT THE FRONT FOOT PLATES OF THE SPORT CAGE
FROM UNDER-
NEATH THE BODY TUB. POLYURETHANE BODY BUSHINGS ELIMINATE METAL TO METAL CONTACT
BETWEEN THE FRAME AND BODY , AND ALLOW FOR FLEX.

1: Mark the frame where the outriggers are to be welded and grind the area to bare steel for welding.

2:
Remove the 9/16” bolt that holds the cage foot plate to the body tub. Insert the bushing (MO2282 Figure 2B), on
the top of the outrigger, install the bushing (MO2285 Figure 2A) over the steel insert of the MO2282 bushing, install
the lock washer and large flat washer on the new longer 9/16” bolt. Hold the outrigger up to the frame rail, and start
the 9/16” bolt into the threaded stub of the foot plate. Tighten 9/16” bolt to 50 Lb. Ft. torque.

3:
Weld the outrigger to the frame, inside and outside (Figure 3). Let the welded areas cool. Wire brush the welds
and coat the outrigger and frame area with black paint.

MOUNTAIN OFF ROAD ENTERPRISES, LLC.
P. O. BOX 690
DELTA, COLORADO 81416
970-625-0500

Phone

970-625-3474

Fax

E-MAIL: [email protected]
www.mountainoffroad.com

TERMS-POLICIES:

DAMAGE CLAIMS: All orders are carefully packed, however, mishandling by the carrier can result in damage. The carrier has the responsibility
for the shipment from the time it leaves our warehouse until it is delivered to you. All claims for lost or damaged goods should be reported to the
carrier, not to M.O.R.E.™ LLC.

RETURNS: No returns will be accepted without prior permission from M.O.R.E.™ LLC. After you receive a Return Goods Authorization (RGA)
number, merchandise must be returned prepaid and insured. A claim must be made with in 30 days from receipt of merchandise. The original
invoice or a copy with the RGA number written on must accompany all returns. A 20% restocking fee will be charged on all parts returned for
credit or refund unless merchandise is proven to be defective or was shipped wrong by M.O.R.E.™ LLC. No merchandise will be issued credit or
refund if it has been installed, modified, used in any way or is in unsalable condition.

WARRANTY: All merchandise is warranted to be free from defects in materials and workmanship prior to installation. Any alteration or improper
use will void this warranty. Because all parts we sell are intended for use in heavy-duty applications it is not possible to warrantee or guarantee
the performance of any items. M.O.R.E.™ LLC. products and the products manufactured by others, which we sell may be subject to an infinite
variety of conditions due to the manner in which they are used, serviced and/or installed. Purchasers and users of such products rely upon their
own judgment as to the suitable use selection, service and installation of such products.

PRODUCT DISCLAIMER: Modification of your vehicle to enhance performance with parts sold by M.O.R.E.™ LLC. may create a dangerous con-
dition which could cause serious bodily injury, and the buyer hereby expressly assumes all risks associated with any such modifications. All parts
sold by M.O.R.E.™ LLC. are for racing or off road use only. Mountain Off Road Enterprises LLC. will not accept responsibility for personal injury
or property damage arising from the failure of any parts manufactured or sold by M.O.R.E.™ LLC.

Specifications are subject to change without notice.

Jeep®, TJ®, Wrangler®, are registered trademarks of DaimlerChrysler.

This instruction sheet is © (copyright) 1999-2008, M.O.R.E.™ .

A

B

Figure 1

Figure 2

Figure 3
