9.3.5 Rescue ram
Work steps for exchanging the ram piston claw:
1. First of all, carefully clean the rescue equipment. Now switch off the device and remove
the battery or unplug the power supply from the device.

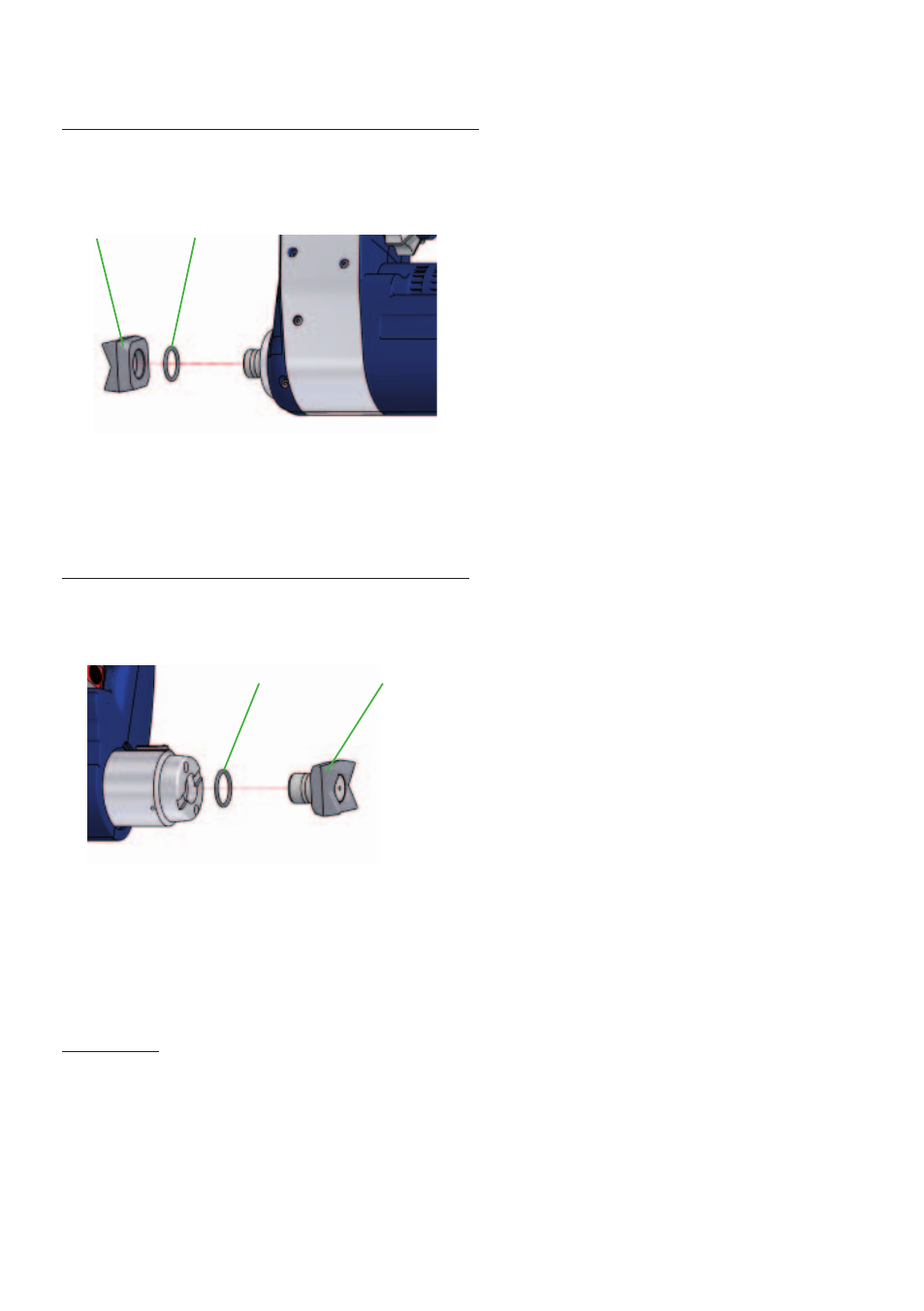

2. Pull the claw "A" off the ram piston and
remove the O-ring "B". Where the O-ring
is damaged, it must be replaced.
3. Insert the O-ring "B" into the groove of the new claw "A" provided and check it for a fi rm
fi t. Grease the contact surfaces with LUKAS special grease and then slide the new claw
onto the ram piston up to the limit stop.
A B
9.3.6 Decals
All damaged and/or illegible decals (safety notices, type plate etc.) must be replaced.
Procedure:
1. Remove damaged and/or illegible decals.
2. Clean surfaces with industrial alcohol.
3. Affi x new decals.
Take care to affi x the labels in the correct positions. If this is no longer known, you should ask
your authorized LUKAS dealer or contact LUKAS directly.
Work steps for exchanging the ram base claw:
1. First of all, carefully clean the rescue equipment. Now switch off the device and remove
the battery or unplug the power supply from the device.
2. Pull the claw "C" off the ram base and
check whether the O-ring "D" in the ram
base has been damaged; if yes, replace
it.
3. Check the fi rm fi t of the O-ring "D", grease the contact surfaces with LUKAS special
grease and then slide the new claw "C" onto the ram base up to the stop.
D C
