31
9.3.4 Replacing the spreader arm, spreader tips, protective cover and handle
of the spreader
Components to be
replaced
Required work steps
Handle 1., 2. and 8.
Plug-on tips 1., 3. and 8.
Protective cover 1. - 7. and 8.
Lever links 1. - 6. and 8.
Spreader arms 1. - 7. and 8.
Work steps:
1. First of all, carefully clean the rescue equipment. Now switch off the device and remove
the battery or unplug the power supply from the device.

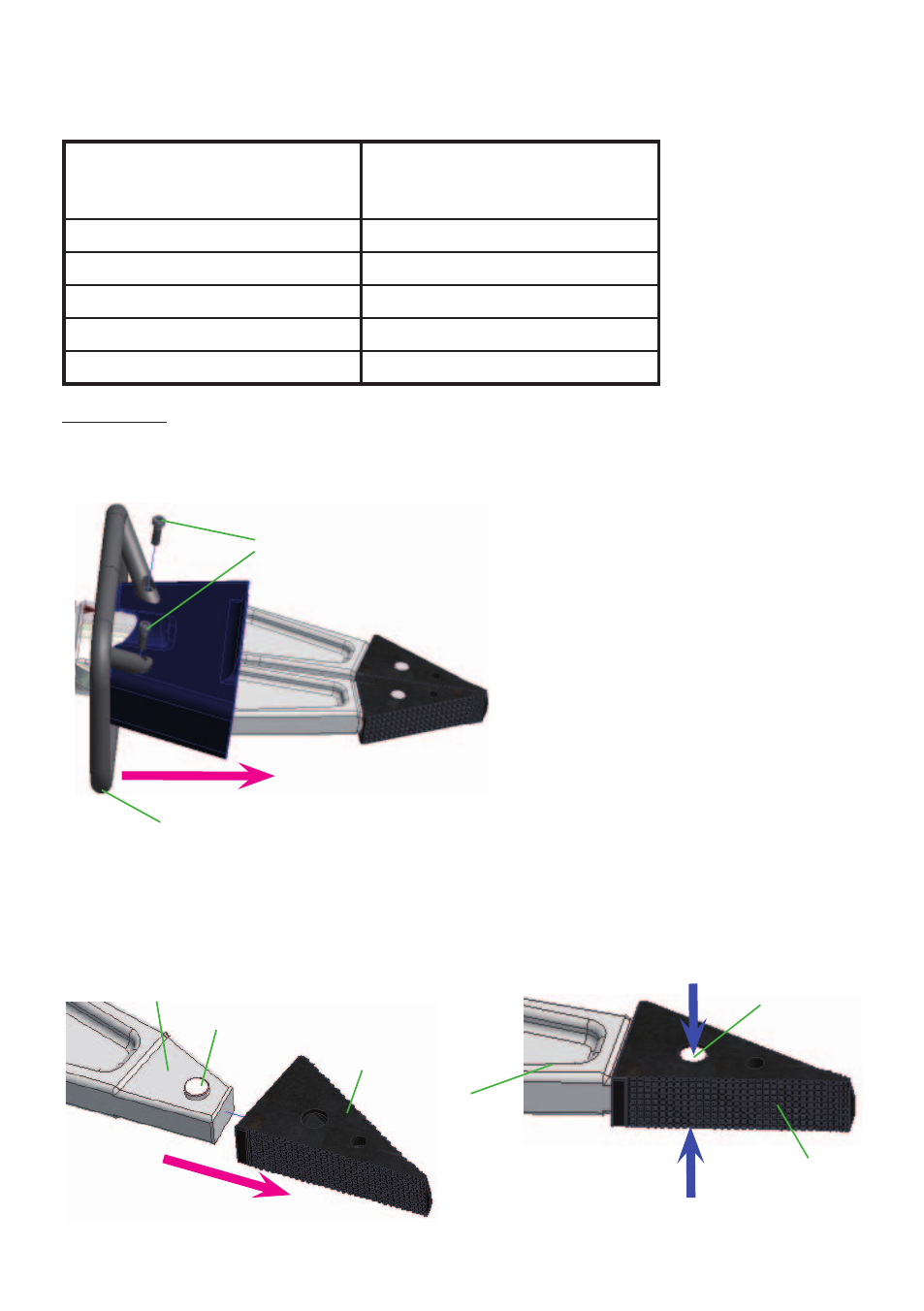

2. Remove the fi xing screws "A" and
remove the handle "B". The handle of
SP 310 E2 is mounted with through bolts
and nuts.
A
B
H
G
J
G
H
J
3. To remove the plug-on tips "G", you must simultaneously press in the buttons "J" on both
sides of a spreader arm "H" and pull the plug tips forwards until they come off.
