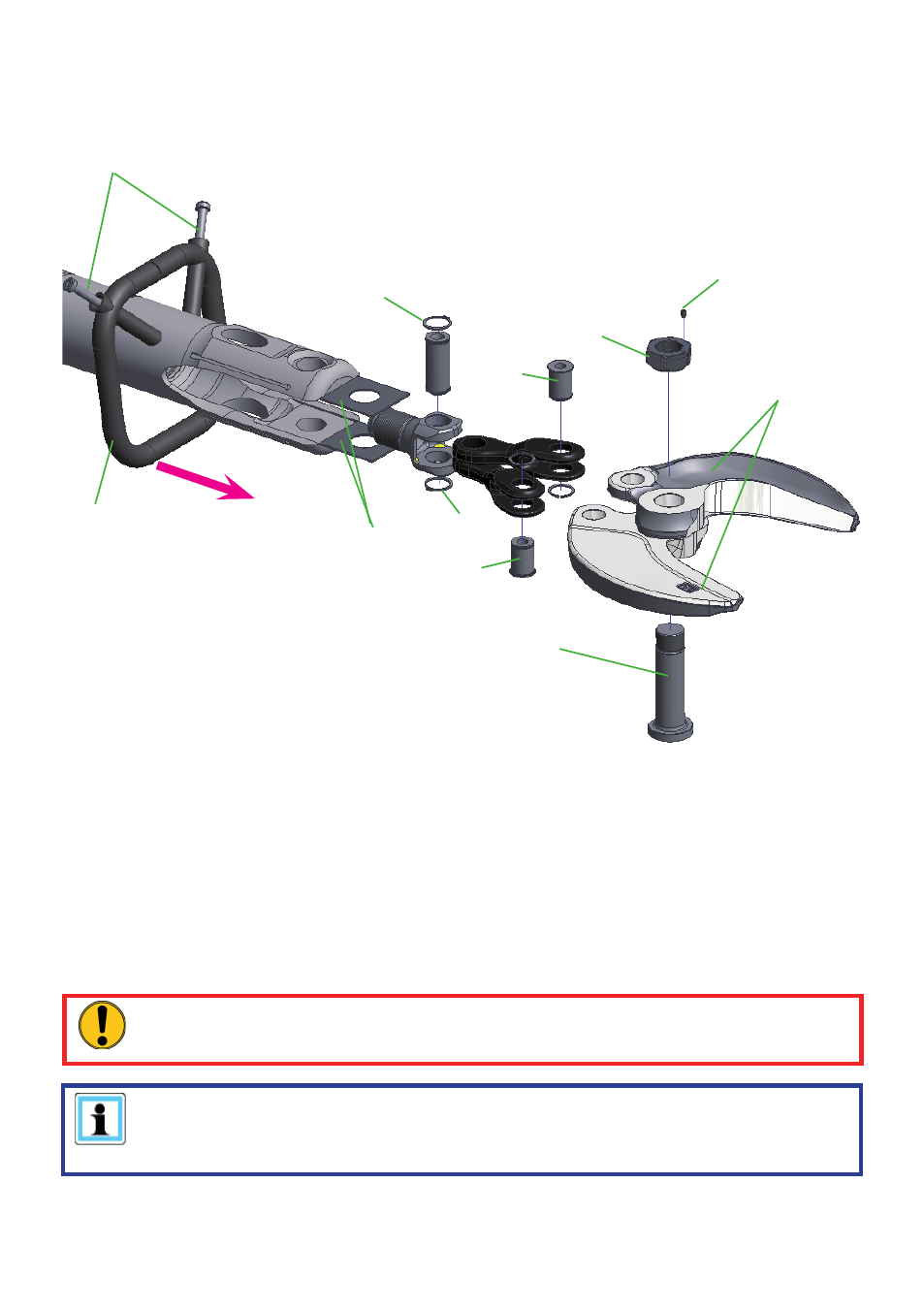

4. First remove the grub screw "G", then
the central bolt nut "H" and then pull out
the central pin "J".
H
J
K
L
O
N
P
M
N
M
6. Remove the locking rings "M" and push
the pin "N" out. You can then pull out the
blades "O" and the slide plates "P"
G
NOTE:
The torque required can be taken from the spare parts list of your particular unit.
ATTENTION!
Don’t forget to apply LUKAS special grease to all sliding surfaces.
7. The work steps must be carried out in reverse order to fi t the new parts.
5. Release the fi xing screws "K" and
remove them. The handle "L" can
now be pulled out forwards over the
blades.
